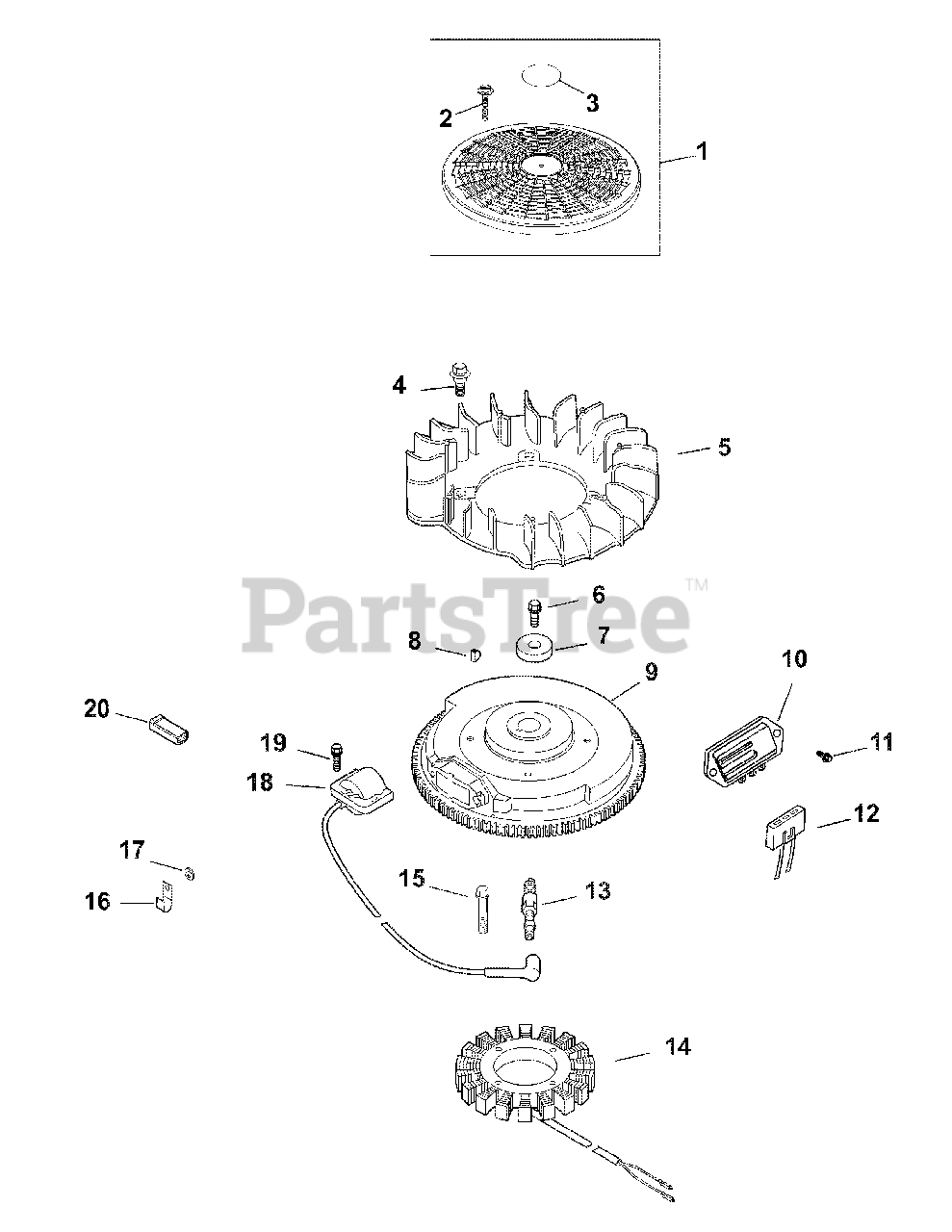

RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Kohler CV680-3011 Ignition & Electrical Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Kohler CV680-3011 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-54-755-15

Kit, Grass Screen

$

$

Not available

2

Cub Cadet KH-25-086-117-S

Screw, Flg Sems M4 x 0.7 x 25

$2.49

$

In Stock, only 4 left!

0

3

Cub Cadet KH-24-113-18-S

Decal, Grass Screen

$

$

Not available

4

Cub Cadet KH-25-086-47

Bolt, Shoulder

$

$

Not available

5

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-086-361-S

Screw, FLG M10X1.5X45

$3.49

$

In Stock, Qty 12

0

7

Cub Cadet KH-12-468-03

Washer, Flat 13/32"

$

$

Not available

8

Cub Cadet KH-X-42-15

Key, 3/16" x 5/8"

$

$

Not available

9

Cub Cadet KH-24-025-55-S

Flywheel

$

$

Not available

10

Cub Cadet KH-41-403-10-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

11

Cub Cadet KH-25-086-157-S

Screw, Hex Flange Hi-Lo

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-25-155-41-S

Connector (3 Contact)

$7.99

$

In Stock, only 1 left!

0

13

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KH-237878

Kit, 15 Amp Stator

$149.99

$

In Stock, Qty 7

0

15

Cub Cadet KH-M-548025-S

Screw, THD FRM M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

17

Cub Cadet KH-X-25-63

Washer, Flat, 1/4"

$

$

Not available

18

Cub Cadet KH-24-584-45-S

Kit, Module, Ignition (CDI Fixed)
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-M-545020-S

Screw, FLG THD FRM M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

20

Cub Cadet KH-277563

Connector (1 Contact)

Note: NLA (not shown)

$

$

Not available

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

Note: (not shown)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-150-S

Harness, Wiring

Note: (not shown)

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41

Lead, Duplex

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-454-07-S

Tie

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

Lead

Note: (not shown)

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

Terminal

Note: (not shown)

$5.49

$

In Stock, only 1 left!

0
