RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Kohler CV680-3011 Fuel System Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

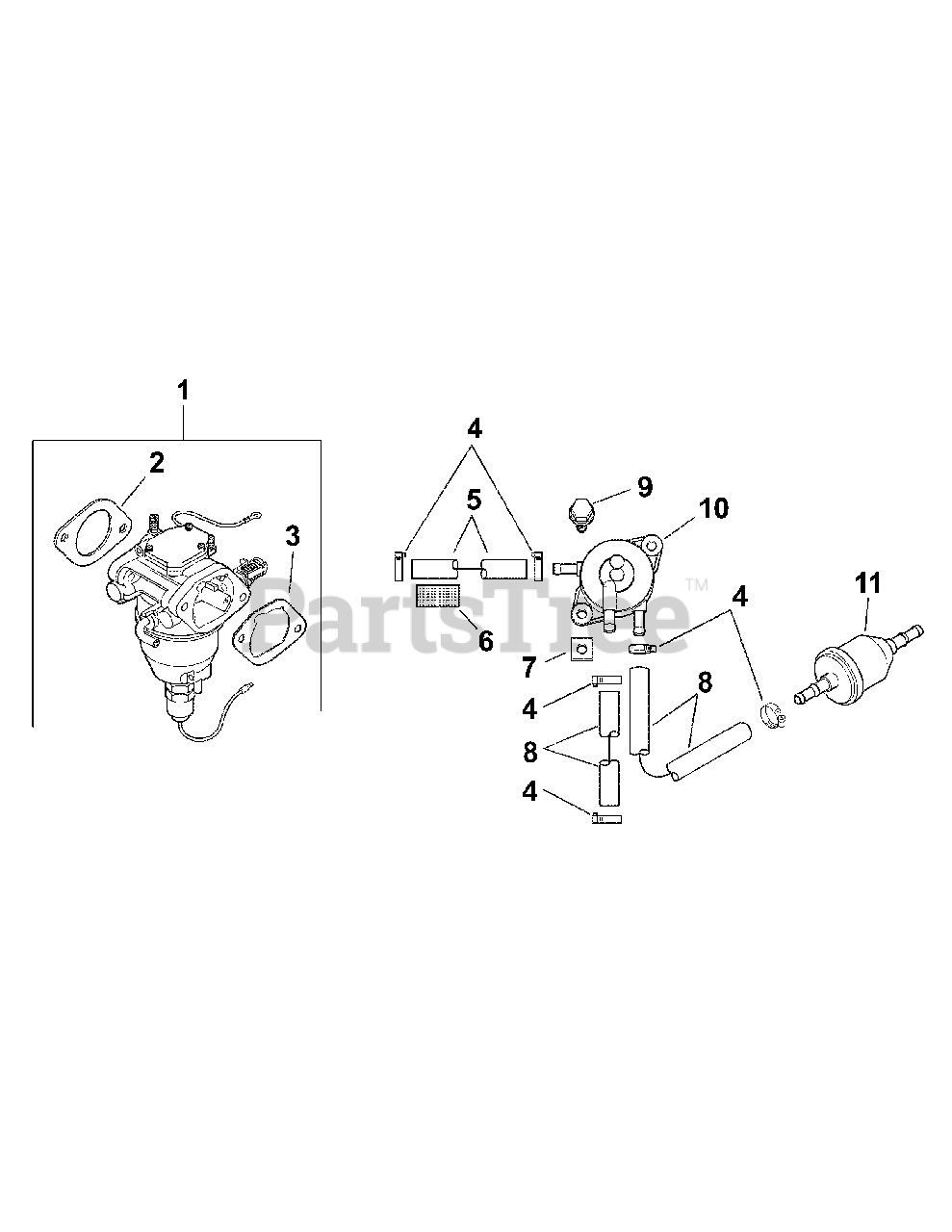

Kohler CV680-3011 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-168-S

KIT, CARBURETOR W/GASKETS
(Superseded to KH-24-853-314-S)

Note: (INCLUDES 2,3)

$400.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-15

GASKET, CARBURETOR

$

$

Not available

3

Cub Cadet KH-24-041-14

GASKET, AIR CLEANER BASE

$

$

Not available

4

Cub Cadet KH-25-237-31-S

CLAMP, SPRING HOSE 1/2"

$4.99

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-353-12

LINE, FUEL 11"

$

$

Not available

6

Cub Cadet KH-24-431-02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-100-37-S

NUT, PLASTIC-BLACK

$2.49

$

In Stock, Qty 9

0

8

Cub Cadet KH-25-111-81-S

LINE, FUEL

Note: (24"-CUT TO LENGTH)

$17.99

$

In Stock, Qty 6

0

9

Cub Cadet KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

10

Cub Cadet KH-24-393-16

PUMP, FUEL

$

$

Not available

11

Cub Cadet KH-24-050-13-S

FILTER, FUEL
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-757-36-S

KIT, REPAIR SERVICE CHOKE

Note: (Not Shown)

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

KIT, REPAIR SERVICE GASKET

Note: (Not Shown)

$32.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-44-S

KIT, REPAIR FLOAT

Note: (Not Shown)

$94.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

KIT, REPAIR SOLENOID VALVE

Note: (Not Shown)

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

KIT, REPAIR OVERHAUL

Note: (Not Shown)

$137.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-56-S

KIT, ACCELERATOR PUMP

Note: (Not Shown)

$182.99

$

Usually ships in 2-5 days

0
