RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Fabricated Deck Spindle Assembly 48-Inch Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

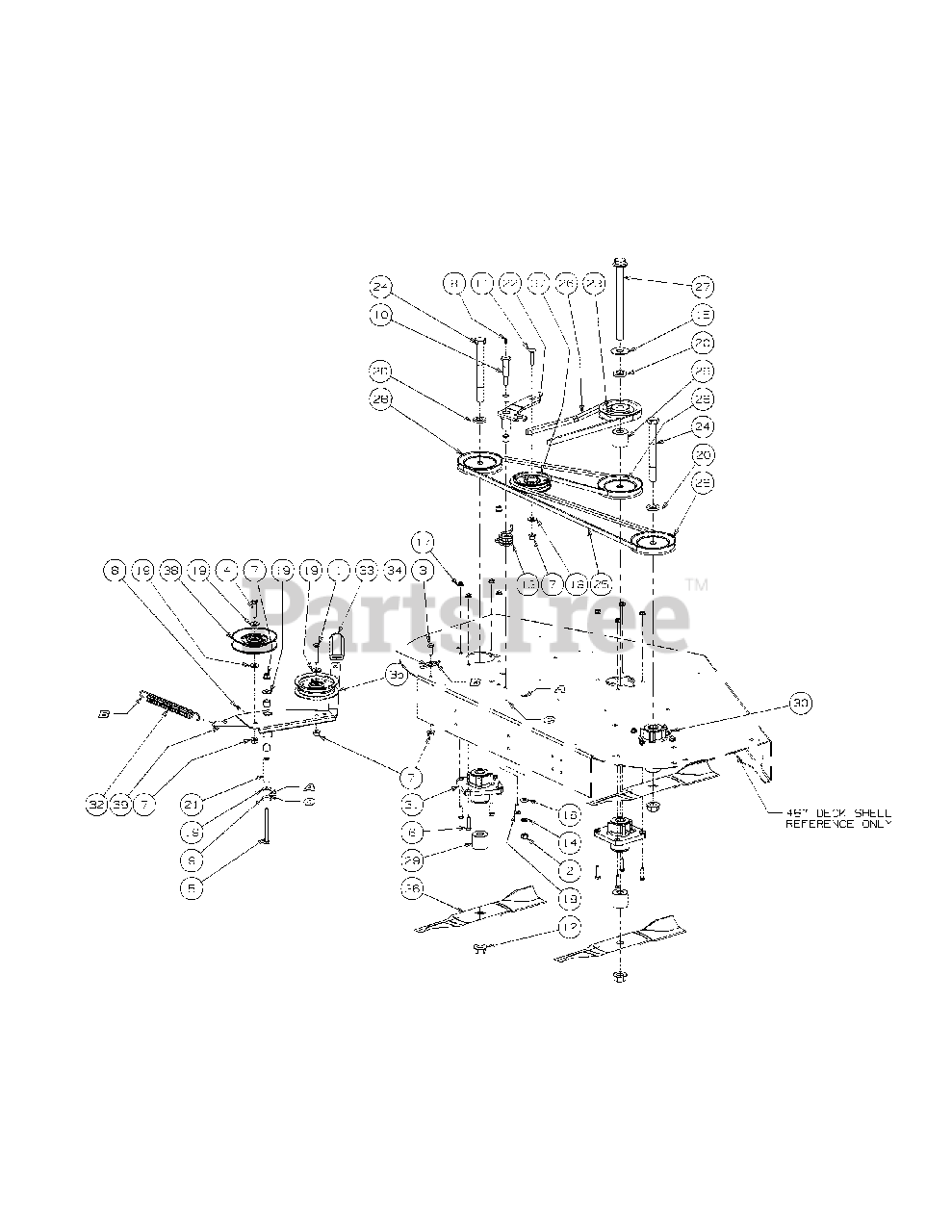

Fabricated Deck Spindle Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

6

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

12

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3004A

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01005737

Idler Arm Assembly includes:

$108.99

$

In Stock, only 2 left!

0

22

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

23

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004185

Hex Cap Screw, 3/4-16, 6.50

$41.99

$

In Stock, only 3 left!

0

25

Cub Cadet 01005374

V-Belt, A Section x 105.3
(Superseded to 01005374P)

$68.99

$

In Stock, Qty 13

0

26

Cub Cadet 02005168

V-Belt, B Section x 86.2
(Superseded to 02005168P)

$76.99

$

In Stock, Qty 5

0

27

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

28

Cub Cadet 956-1209

V-Pulley, 4.9 OD

$60.99

$

In Stock, only 3 left!

0

29

Cub Cadet 01006681

Spacer, .760 ID x 1.75 OD x 1.60

$

$

Not available

30

Cub Cadet 01008565

Grease Fitting, 45 Degree

$

$

Not available

31

Cub Cadet 918-04939

Spindle Assembly

$

$

Not available

32

Cub Cadet 02003712

Extension Spring, .94 OD x 7.57
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

33

Cub Cadet 02003740

Idler Tension Handle Grip

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 02004195

Tension Spring Bracket

$31.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02004447

Idler Pulley, 4.06 OD w/Deep Flange

$57.99

$

In Stock, Qty 20+

0

36

Cub Cadet 02005017

Blade, 17.0, Hi-Lift, 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

37

Cub Cadet 02005077

Idler Pulley, 4.06 Dia.

$35.99

$

In Stock, Qty 20+

0

38

Cub Cadet 756-04522

Idler Pulley, 5.06 Dia.

$39.99

$

In Stock, only 4 left!

0

39

Cub Cadet 02005509P

Idler Arm Assembly includes:

$100.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18
