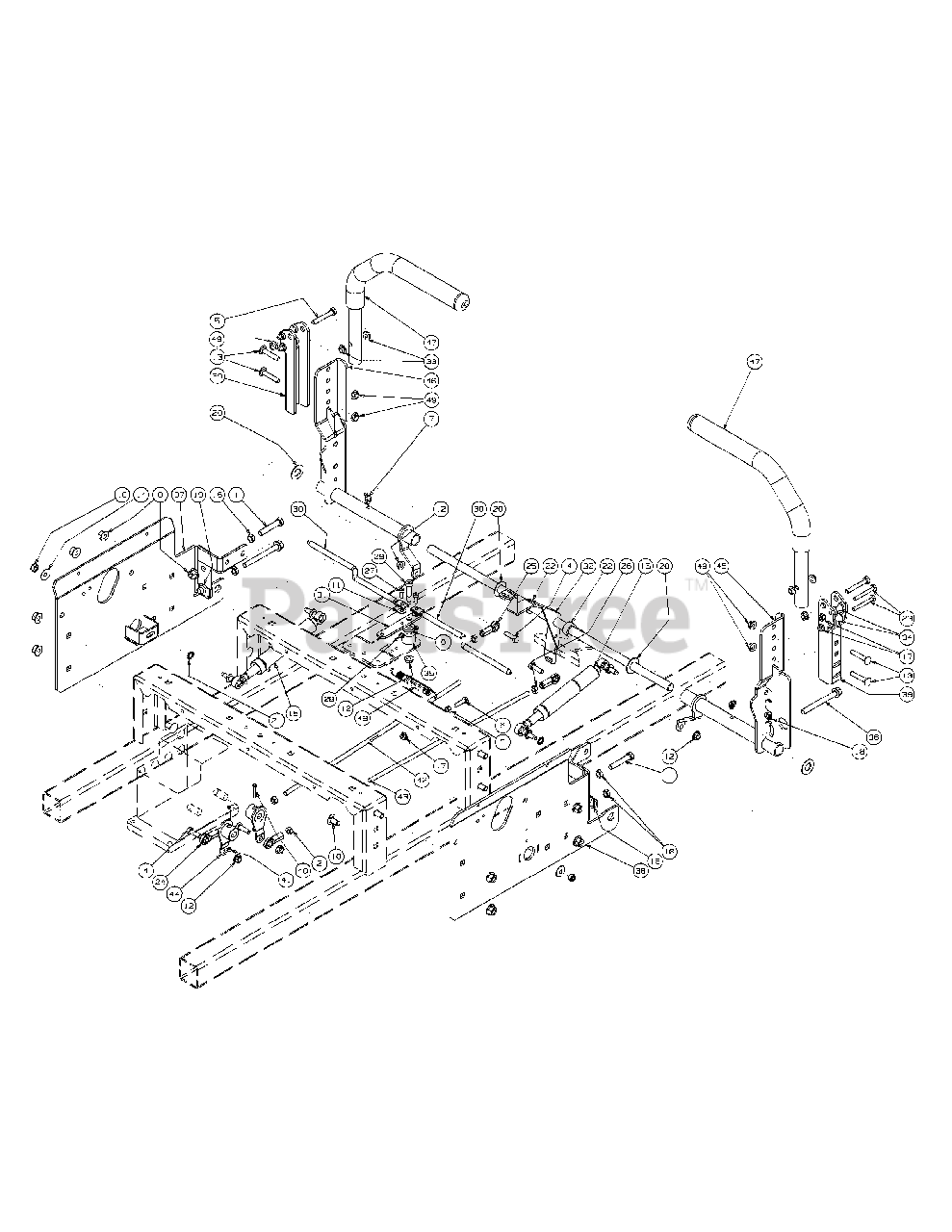

RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Control Assembly Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3057

Hex Nut, 5/16-24

$6.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00012186

Hex Nut, 1/4-20

$

$

Not available

4

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0597

HHCS, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 00021958

Grease Fitting, 1/4-28, 45 degree

$5.49

$

In Stock, only 4 left!

0

8

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00061053

Washer, 3/8, SS

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

15

Cub Cadet 01001727

Cylinder Return to Neutral

$265.99

$

In Stock, Qty 7

0

16

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

19

Cub Cadet 01003947

U-Nut, 3/8-16, .75

$7.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 01006350

Shaft Collar

$24.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01006898

Hex Cap Screw, 1/4-20 x 2.00

$6.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 01008410P

Rod End, 5/16, Right Hand
(Superseded to 723-04039)

$57.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008551P

Rod End, 5/16, Left Hand

$50.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008576P

Hex Nut, 5/16-24, Left Hand

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01009322

Shoulder Bolt, 1/4 x 1/4

$

$

Not available

28

Cub Cadet 01009377

Nut w/ Star Washer, 10-24

$5.99

$

In Stock, only 1 left!

0

29

Cub Cadet 02000069

Screw, Shoulder Control Rod

$

$

Not available

30

Cub Cadet 02002542

Brake/Control Rod

$9.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002543

Lapbar Control Arm

$

$

Not available

32

Cub Cadet 02002555

Lapbar Control Shaft Assembly

$

$

Not available

33

Cub Cadet 02003419

Bushing, .310 x .172 x .688 x .06

$4.49

$

In Stock, Qty 5

0

34

Cub Cadet 02003644

Spacer, .251 ID x .38 OD x 1.13 LG

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 02003664

Spacer, .405 ID x 1.0 OD x .72

$

$

Not available

36

Cub Cadet 02003666

Hex Cap Screw, 3/8-16 x 3.50

$

$

Not available

37

Cub Cadet 02003883-0637

Side Panel, Control, Left

$

$

Not available

38

Cub Cadet 02003884-0637

Side Panel, Control, Right

$

$

Not available

39

Cub Cadet 02004044-0637

Lapbar Pivot Bracket

$32.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 02004404

Sockethead Capscrew,, M4 x 0.7 x 25mm

$6.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 02004405

Nut, M4 x 0.7mm, Nylock

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 02004448

Control Rod, 5/16-24, RH/LH x 19.5

$

$

Not available

43

Cub Cadet 02004449

Control Rod, 5/16-24, RH/LH x 16.5

$

$

Not available

44

Cub Cadet 02004903

Pump Mount Bracket

$49.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 02004372

Lapbar Control Assembly, RH

$

$

Not available

45

Cub Cadet 01004265

Bearing

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 02004371

Lapbar Control Assembly, LH

$

$

Not available

46

Cub Cadet 01004265

Bearing

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 02004933

Lapbar Assembly includes:

$

$

Not available

47

Cub Cadet 02002662

Grip, 1.0
(Superseded to 720-04188)

Note: (not shown)

$25.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 932-0470A

Extension Spring, .53 OD x 4.75

$9.99

$

In Stock, Qty 5

0

49

Cub Cadet 712-04063

Nut, Lock, HexFlange, 5/16-18

$3.99

$

Usually ships in 3-6 days

0
