REC-600 - Echo Pneumatic Pole Saw Fuel System, Ignition, Starter Parts Diagram

Pneumatic Pole Saw

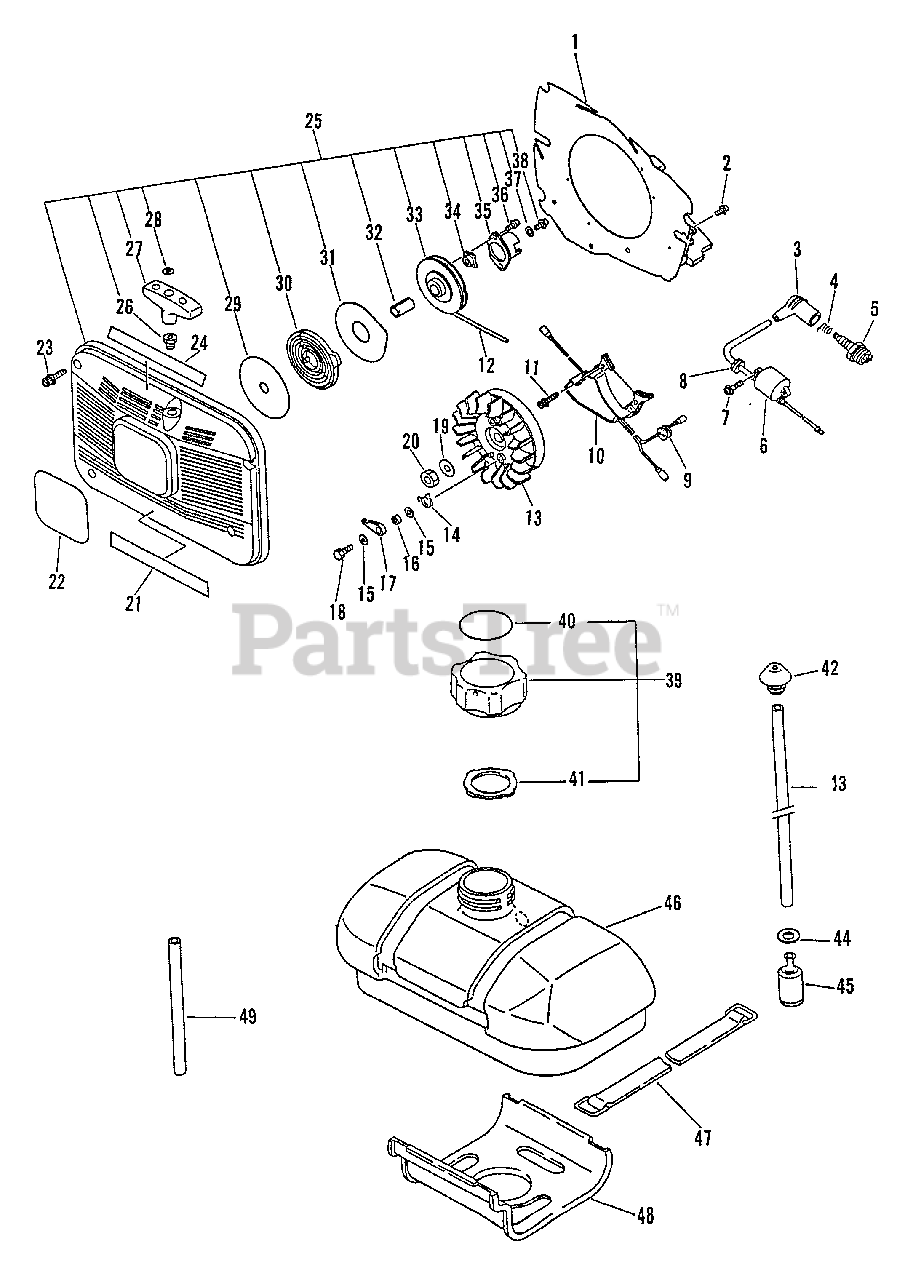

Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 17730810461

PLATE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90025204012

SCREW - 4X12

$0.99

$

In Stock, only 2 left!

0

3

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

6

Echo 15062616131

COIL, IGNITION
(Superseded to 15662616130)

$

$

Not available

7

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

8

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

9

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

10

Echo 15660110461

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 90016204018

SCREW - 4X18

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17722607060

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$10.99

$

In Stock, Qty 9

0

13

Echo 15080016131

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 17723402831

SPRING, RETURN

$2.49

$

In Stock, only 1 left!

0

15

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 17721802830

PAWL, STARTER

$5.99

$

Usually ships in 2-4 days

0

18

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90060800010

WASHER - 10
(Superseded to Discontinued)

$

$

Not available

20

Echo 90052100010

NUT - 10
(Superseded to Discontinued)

$

$

Not available

21

Echo 89018411960

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

22

Echo 89011211960

LABEL - MODEL REC-600
(Superseded to Discontinued)

$

$

Not available

23

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

24

Echo 89018811960

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

25

Echo 17720010460

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 12, 26 - 38

$

$

Not available

26

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 5

0

27

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 13

0

28

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 6

0

29

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

30

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

31

Echo 17724212330

PLATE, STARTER

$5.49

$

In Stock, only 4 left!

0

32

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 3 left!

0

33

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

34

Echo 17724602832

RETAINER, ROPE

$0.99

$

Usually ships in 2-4 days

0

35

Echo 17724302833

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

36

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

37

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

38

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

39

Echo 13160011960

CAP ASSY
(Superseded to 13100406610)

Note: INCLUDES ITEMS 40 & 41

$11.99

$

In Stock, Qty 5

0

40

Echo 89015410461

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

41

Echo 13101610760

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

42

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

43

Echo 43720514730

PIPE - 3X6X220 -- BLACK
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90015

$

$

Not available

44

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

45

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

46

Echo 13101011960

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

47

Echo 13191721530

STRAP
(Superseded to Discontinued)

$

$

Not available

48

Echo 13192022030

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

49

Echo 13201022130

PIPE - 3X6X150 -- BLACK
(Superseded to 13201022131)

$2.49

$

Usually ships in 2-4 days

0
