Rebel (Rebel X) - Bad Boy Zero-Turn Mower (2025) Transaxle Parts Diagram

Zero-Turn Mower

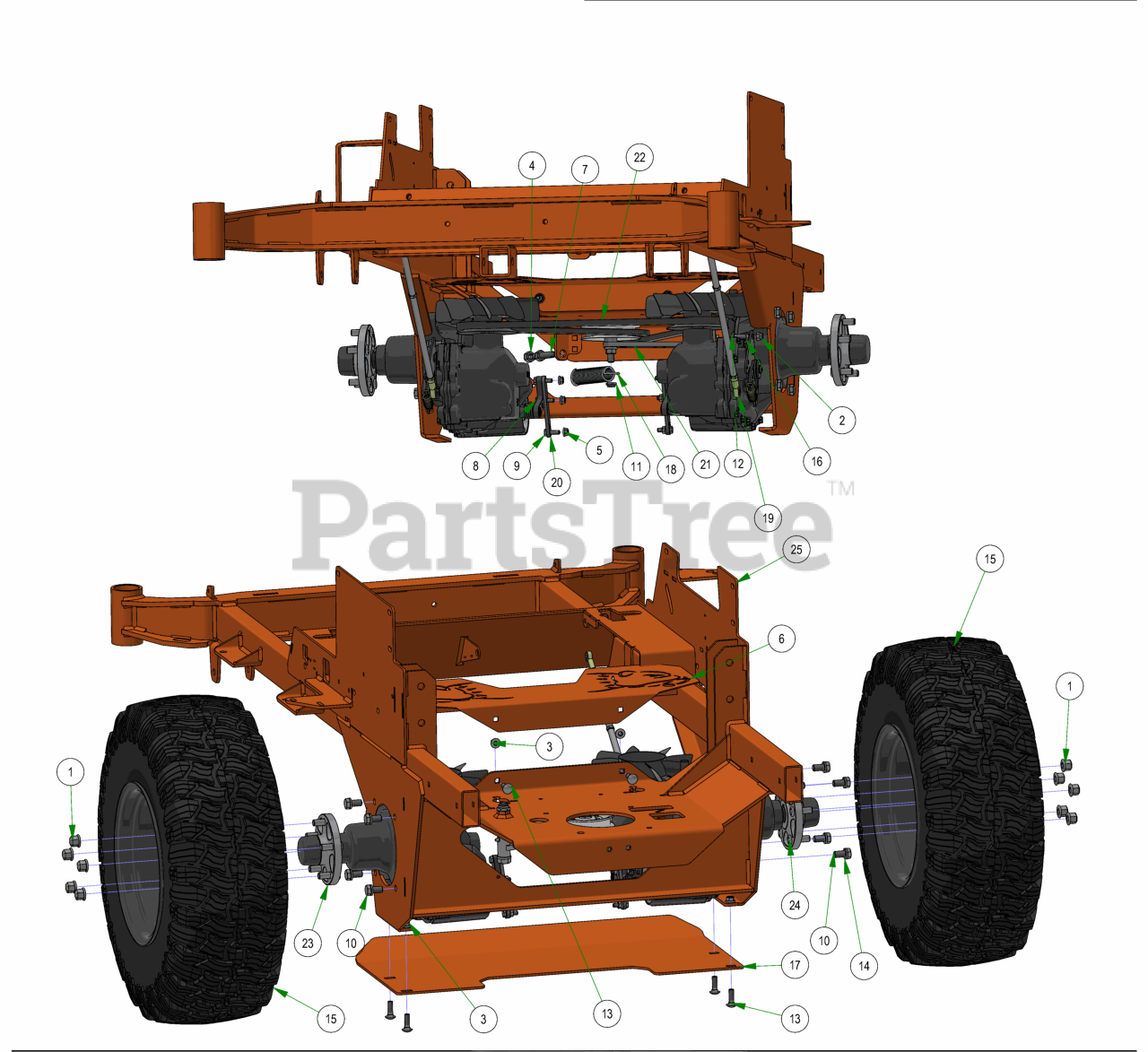

Transaxle Parts Diagram

  • Title

1

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

2

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 014-5070-00

2019 Rigid Fan Guard

$22.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

8

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

12

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

13

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

14

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 022-4100-00

24x12-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

In Stock, only 2 left!

0

16

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

17

Bad Boy 026-2240-00

2019 Outlaw Rigid Skid Plate

$

$

Not available

18

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

19

Bad Boy 035-0009-01

2024 Rebel Push Rod Assembly

$34.99

$

Usually ships in 4-7 days

0

20

Bad Boy 039-2135-00

2015 Outlaw Brake Adapter (4400 Transaxles Only)

$7.99

$

Usually ships in 4-7 days

0

21

Bad Boy 039-6945-03

2019 Rebel Pump Idler

$56.99

$

Usually ships in 4-7 days

0

22

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 9

0

23

Bad Boy 050-1000-00

4400 Transaxle-Left-Base Outlaw/2019 Rebel

$1037.99

$

Usually ships in 4-7 days

0

24

Bad Boy 050-1050-00

4400 Transaxle-Right-Base Outlaw/2019 Rebel

$1037.99

$

Usually ships in 4-7 days

0

25

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0
