Rebel (Rebel X) - Bad Boy Zero-Turn Mower (2025) Rebel X Transaxle Parts Diagram

Zero-Turn Mower

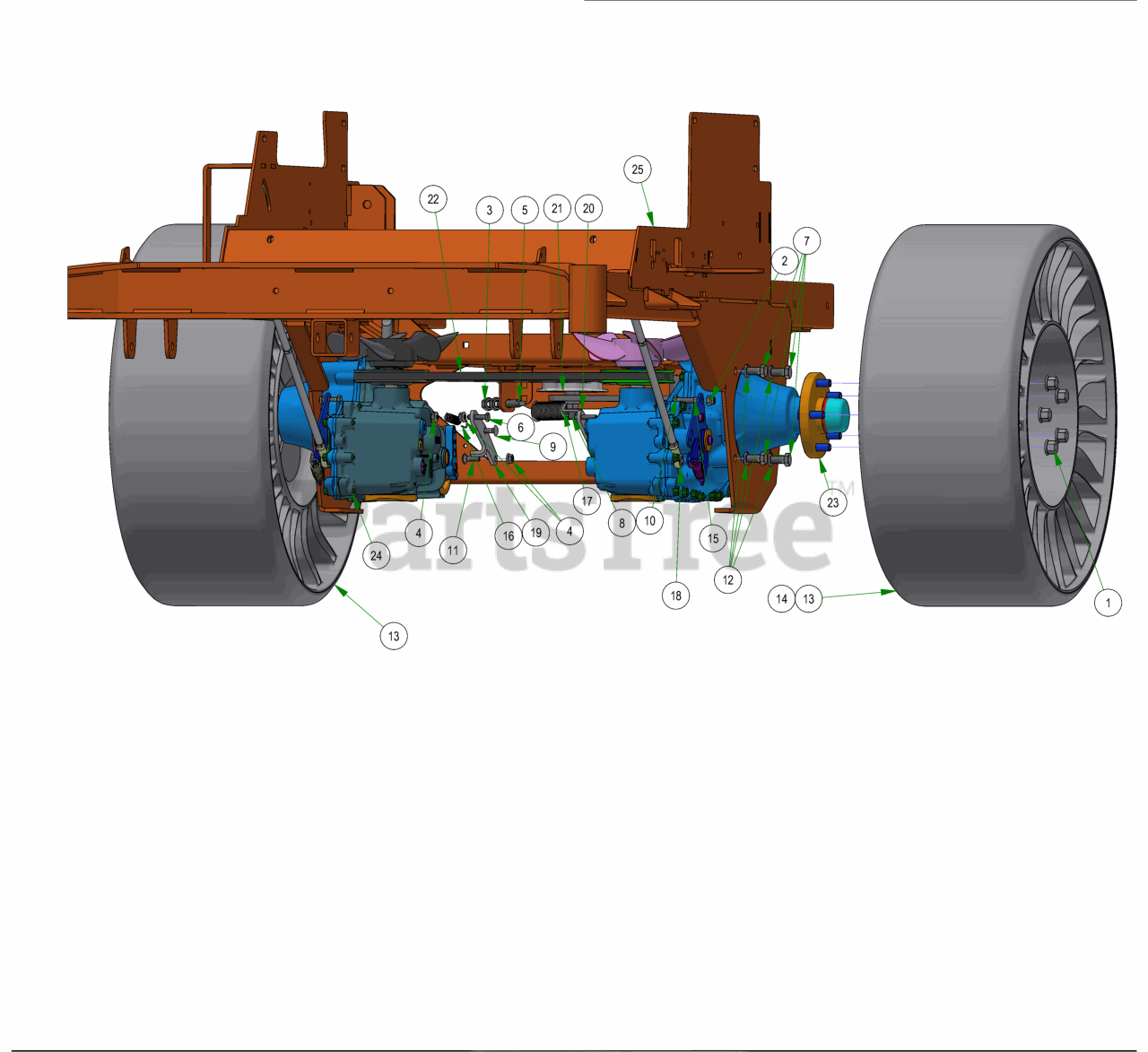

Rebel X Transaxle Parts Diagram

  • Title

1

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

2

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

5

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

6

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

7

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

9

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

10

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

11

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

12

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 022-4092-00

TWEEL, 24X12N12 ZTR 5ON4.5 BLACK 1.3IN OFFSET

$1025.99

$

Usually ships in 4-7 days

0

14

Bad Boy 022-4100-00

24x12-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

15

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

16

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

17

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

18

Bad Boy 035-0009-01

2024 Rebel Push Rod Assembly

$34.99

$

Usually ships in 4-7 days

0

19

Bad Boy 039-2133-00

5400 Transaxle Brake Adapter Plate RH v3

$

$

Currently unavailable

20

Bad Boy 039-2134-00

5400 Transaxle Brake Adapter Plate LH v3

$

$

Currently unavailable

21

Bad Boy 039-6945-RX

2024 Rebel X Pump Idler

$

$

Currently unavailable

22

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 9

0

23

Bad Boy 050-7000-00

5400 TRANSAXLE LH

$1139.99

$

Usually ships in 4-7 days

0

24

Bad Boy 050-7001-00

5400 TRANSAXLE RH

$1139.99

$

Usually ships in 4-7 days

0

25

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0
