Rebel (Rebel X) - Bad Boy Zero-Turn Mower (2024) FRONT END Parts Diagram

Zero-Turn Mower

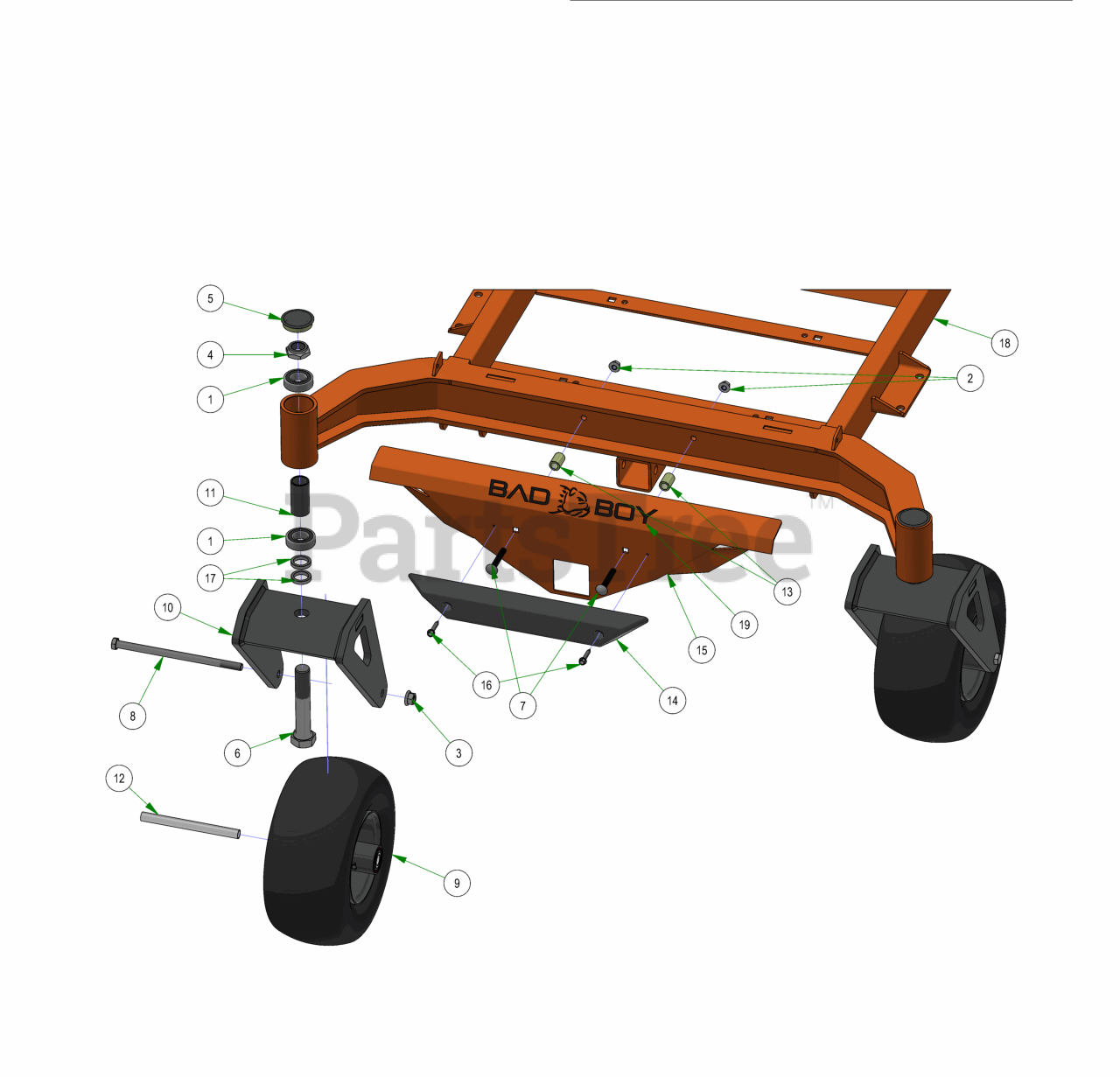

FRONT END Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 8

0

5

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

6

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

$

In Stock, Qty 17

0

9

Bad Boy 022-3088-00

13x6.50-6 Black No Flat Assembly

$166.99

$

In Stock, Qty 20+

0

10

Bad Boy 023-0030-22

2019 Rebel Front Fork - Weldment - Black

$119.99

$

Usually ships in 4-7 days

0

11

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

12

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

13

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

14

Bad Boy 029-8000-00

2017 XP BUMPER

$33.99

$

In Stock, only 2 left!

0

15

Bad Boy 029-8020-00

2024 Rebel Front Bumper Plate

$

$

Currently unavailable

16

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 5

0

18

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

19

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

$

Usually ships in 4-7 days

0
