Rebel (Rebel X) - Bad Boy Zero-Turn Mower (2024) COVERS & SEAT Parts Diagram

Zero-Turn Mower

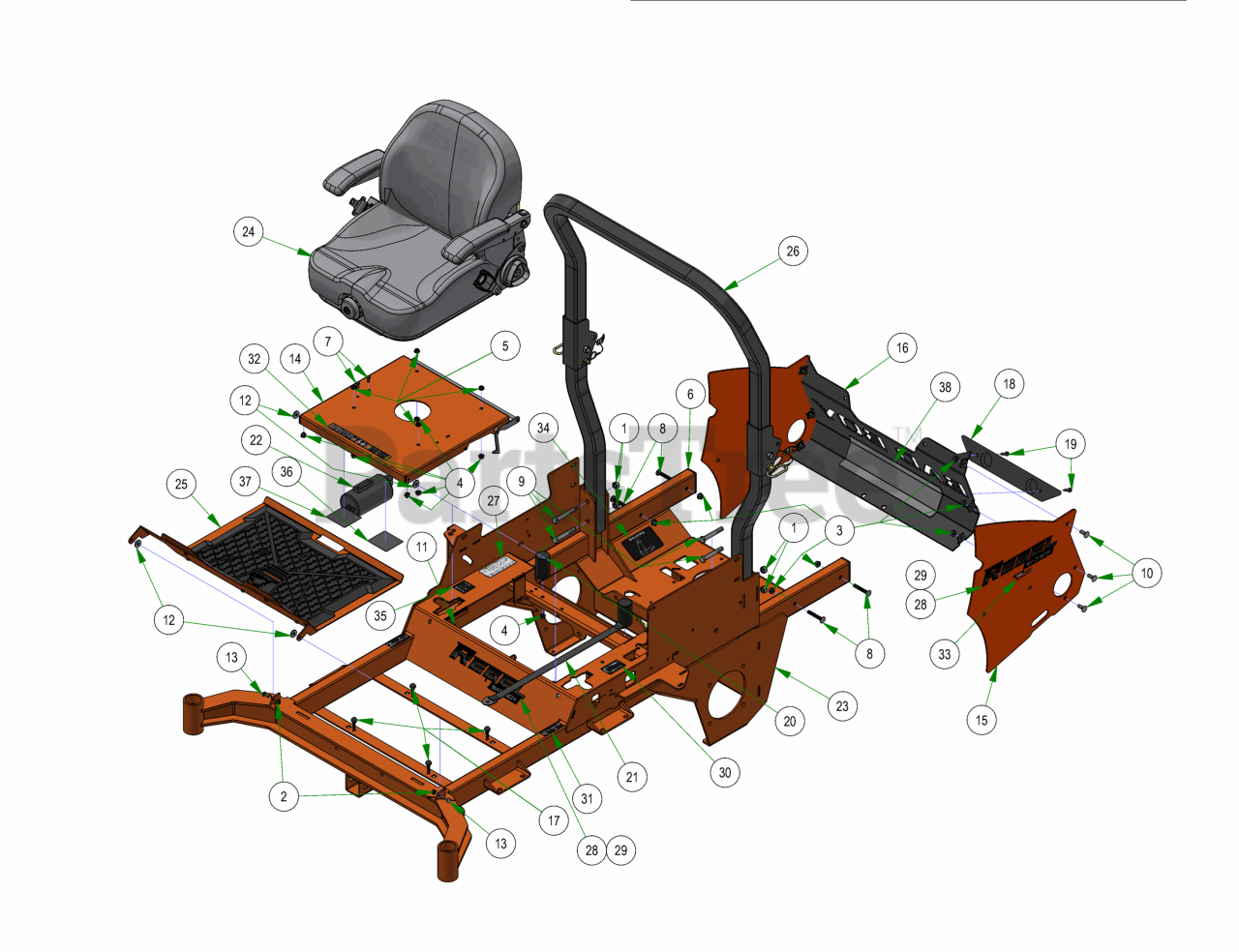

COVERS & SEAT Parts Diagram

  • Title

1

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

5

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

6

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

8

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

12

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

13

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

14

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

15

Bad Boy 026-2219-00

Rebel Rear Cover Side Plate

$193.99

$

Usually ships in 4-7 days

0

16

Bad Boy 026-2221-22

2019 Vertical Rear Cover Tailgate - Black

$257.99

$

Usually ships in 4-7 days

0

17

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

18

Bad Boy 029-8000-00

2017 XP BUMPER

$33.99

$

In Stock, only 2 left!

0

19

Bad Boy 030-7047-00

1/4-14 X 1-1/4 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

21

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

22

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

23

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

24

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

25

Bad Boy 079-3155-24

2024 R-Series Floorboard Assembly

$

$

Not available

26

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

$497.99

$

Usually ships in 4-7 days

0

27

Bad Boy 091-0015-24

2024 EPA Build Date Punch Decal

$

$

Currently unavailable

28

Bad Boy 091-0514-00

Rebel back Plate & Front Decal

$11.99

$

Usually ships in 4-7 days

0

29

Bad Boy 091-0515-00

Rebel X back Plate & Front Decal

$11.99

$

Usually ships in 4-7 days

0

30

Bad Boy 091-1101-18

2018 Out/XP/Diesel Brake Decal

$6.49

$

Usually ships in 4-7 days

0

31

Bad Boy 091-1114-00

2018 LH/RH Steering Control Decal Roll

$16.99

$

Usually ships in 4-7 days

0

32

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

33

Bad Boy 091-4003-22

2022 Powered By Kawasaki Decal

$2.99

$

Usually ships in 4-7 days

0

34

Bad Boy 091-4034-00

2019 Rebel Pump Belt Route Decal

$7.99

$

Usually ships in 0 days

0

35

Bad Boy 091-4037-00

2019 Deck Release Decal

$8.49

$

Usually ships in 4-7 days

0

36

Bad Boy 091-4038-00

Control Adj. Control Rod Decal

$6.49

$

Usually ships in 4-7 days

0

37

Bad Boy 091-4039-00

Control Adj. Control Dampener Decal

$6.49

$

Usually ships in 4-7 days

0

38

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

$15.99

$

Usually ships in 4-7 days

0
