Rebel - Bad Boy Zero-Turn Mower (2023) TRANSAXLES Parts Diagram

Zero-Turn Mower

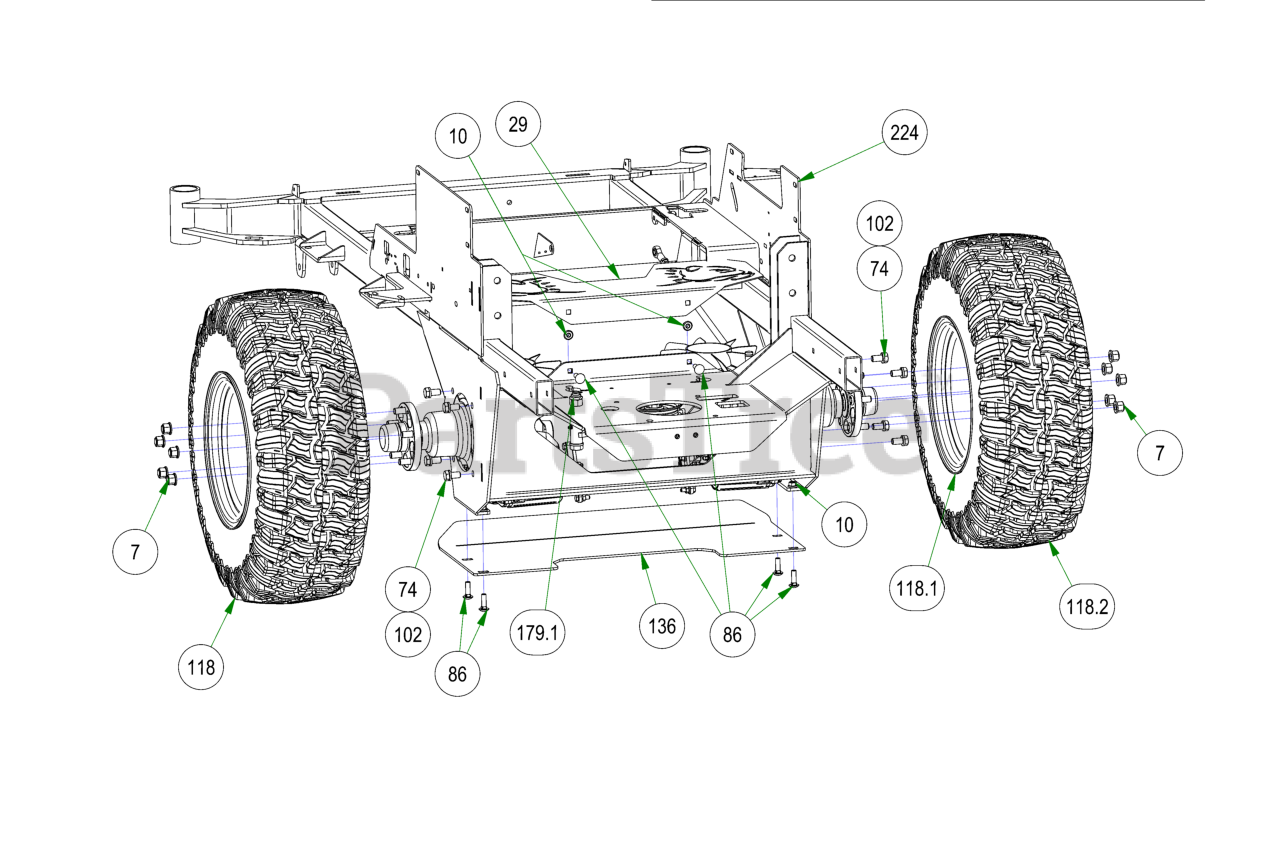

TRANSAXLES Parts Diagram

  • Title

7

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

8

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

29

Bad Boy 014-5070-00

2019 Rigid Fan Guard

$22.99

$

Usually ships in 4-7 days

0

67

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

68

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

69

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

74

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

79

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

85

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

86

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

102

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

118

Bad Boy 022-4100-00

24x12-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

125

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

136

Bad Boy 026-2240-00

2019 Outlaw Rigid Skid Plate

$

$

Not available

167

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

168

Bad Boy 035-0003-00

2019 Rebel Push Rod Assembly

$45.99

$

Usually ships in 4-7 days

0

176

Bad Boy 039-2135-00

2015 Outlaw Brake Adapter (4400 Transaxles Only)

$7.99

$

Usually ships in 4-7 days

0

179

Bad Boy 039-6945-03

2019 Rebel Pump Idler

$56.99

$

Usually ships in 4-7 days

0

185

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 8

0

195

Bad Boy 050-1000-00

4400 Transaxle-Left-Base Outlaw/2019 Rebel

$1037.99

$

Usually ships in 4-7 days

0

196

Bad Boy 050-1050-00

4400 Transaxle-Right-Base Outlaw/2019 Rebel

$1037.99

$

Usually ships in 4-7 days

0

224

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

118.1

Bad Boy 022-4070-00

12x12" Black Wheel For 2015 Outlaw

$150.99

$

Usually ships in 4-7 days

0

118.2

Bad Boy 022-4095-00

24x12-12 Reaper Turf Tire

$227.99

$

Usually ships in 4-7 days

0

168.1

Bad Boy 013-6050-00

5/16 LH Nut

$4.99

$

Usually ships in 4-7 days

0

168.2

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

168.3

Bad Boy 035-0003-01

2019 Rebel Push Rod

$

$

Currently unavailable

168.4

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

168.5

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

179.1

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

179.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

179.3

Bad Boy 018-5309-00

5/8-11 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

179.4

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

179.5

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

179.6

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

179.7

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

179.8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

179.9

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

195.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

195.2

Bad Boy 050-1025-00

Fan/Pulley Kit for 4400 Outlaw

$124.99

$

In Stock, only 2 left!

0

195.3

Bad Boy 050-2082-00

Hub for 4400 Transaxle

$178.99

$

Usually ships in 4-7 days

0

195.4

Bad Boy 050-8003-00

Seal Kit for 4400 Series Outlaw Transaxle

$113.99

$

Usually ships in 4-7 days

0

195.5

Bad Boy 063-1070-00

Hydro Filter for 4400 Transaxle

$38.99

$

In Stock, Qty 17

0

196.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

196.2

Bad Boy 050-1025-00

Fan/Pulley Kit for 4400 Outlaw

$124.99

$

In Stock, only 2 left!

0

196.3

Bad Boy 050-2082-00

Hub for 4400 Transaxle

$178.99

$

Usually ships in 4-7 days

0

196.4

Bad Boy 050-8003-00

Seal Kit for 4400 Series Outlaw Transaxle

$113.99

$

Usually ships in 4-7 days

0

196.5

Bad Boy 063-1070-00

Hydro Filter for 4400 Transaxle

$38.99

$

In Stock, Qty 17

0
