Rebel - Bad Boy Zero-Turn Mower (2023) TANKS & BATTERY CONT. Parts Diagram

Zero-Turn Mower

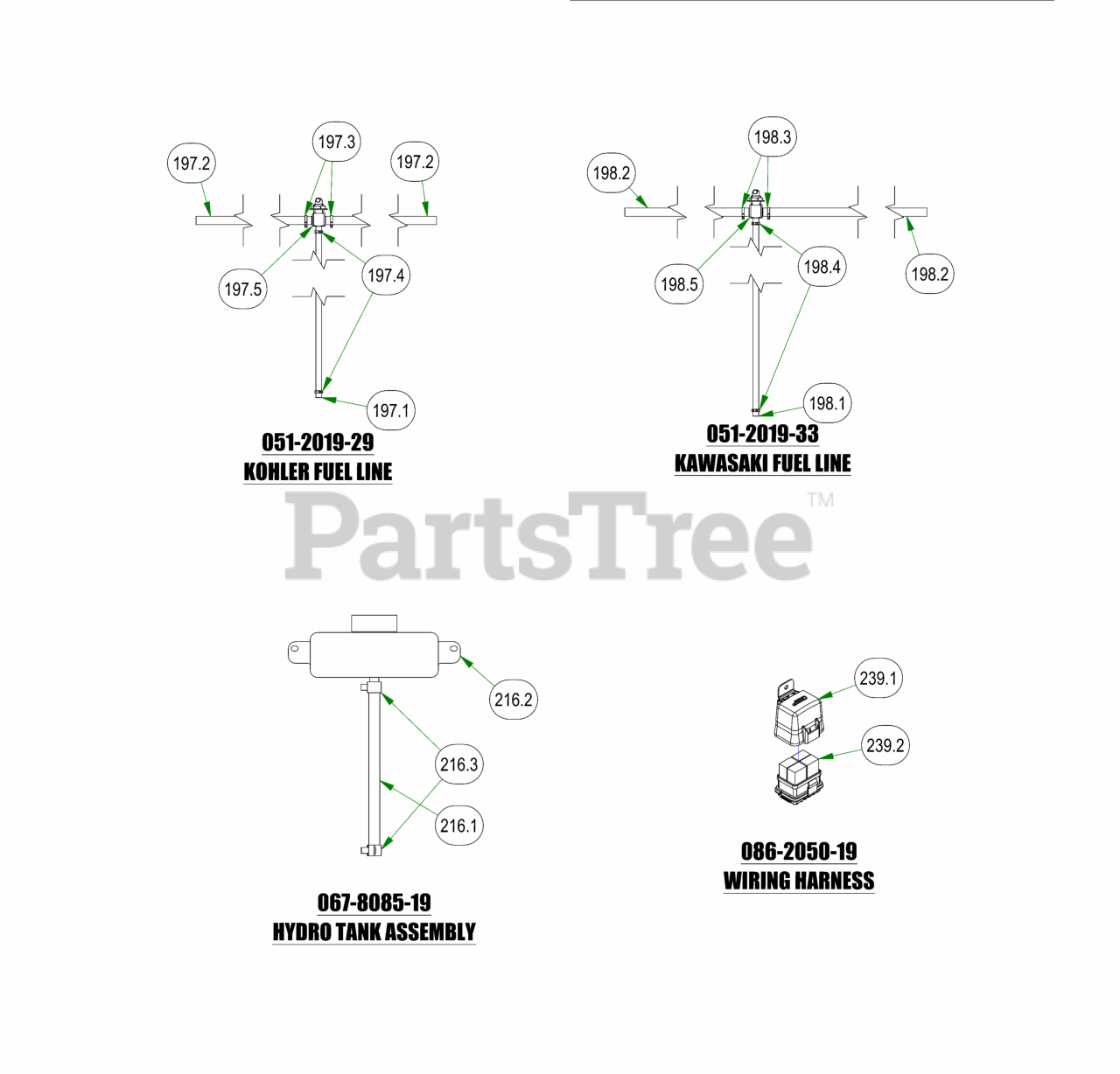

TANKS & BATTERY CONT. Parts Diagram

  • Title

197

Bad Boy 051-2019-29

2023 Rebel Rogue Renegade Fuel Line for Kohler

$

$

Currently unavailable

198

Bad Boy 051-2019-33

2023 Rebel Rogue Renegade Fuel Line for Kawasaki

$

$

Currently unavailable

216

Bad Boy 067-8085-19

2019 Rebel Hydro Tank Assembly

$53.99

$

Usually ships in 4-7 days

0

239

Bad Boy 086-2050-19

2019 Wiring Harness-Rebel/Rogue

$414.99

$

Usually ships in 4-7 days

0

197.1

Bad Boy 051-8067-22

1/4" Fuel Line Hose

$12.99

$

Usually ships in 4-7 days

0

197.2

Bad Boy 051-8075-26

5/16" fuel line hose

$19.99

$

Usually ships in 4-7 days

0

197.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

$3.99

$

Usually ships in 4-7 days

0

197.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

197.5

Bad Boy 067-6058-00

3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4

$22.99

$

In Stock, only 2 left!

0

198.1

Bad Boy 051-8067-32

1/4" Fuel Line Hose

$17.99

$

Usually ships in 4-7 days

0

198.2

Bad Boy 051-8075-26

5/16" fuel line hose

$19.99

$

Usually ships in 4-7 days

0

198.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

$3.99

$

Usually ships in 4-7 days

0

198.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

198.5

Bad Boy 067-6058-00

3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4

$22.99

$

In Stock, only 2 left!

0

216.1

Bad Boy 051-0019-00

5/8 Braided Hose

$12.99

$

Usually ships in 4-7 days

0

216.2

Bad Boy 067-8085-00

Expansion Tank for Outlaw

$33.99

$

In Stock, only 4 left!

0

216.3

Bad Boy 072-8074-00

5/8 Wire Clamp-Outlaw Only

$4.99

$

Usually ships in 4-7 days

0

239.1

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

239.2

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0
