Rebel - Bad Boy Zero-Turn Mower (2023) ENGINE - KAWASAKI EVO Parts Diagram

Zero-Turn Mower

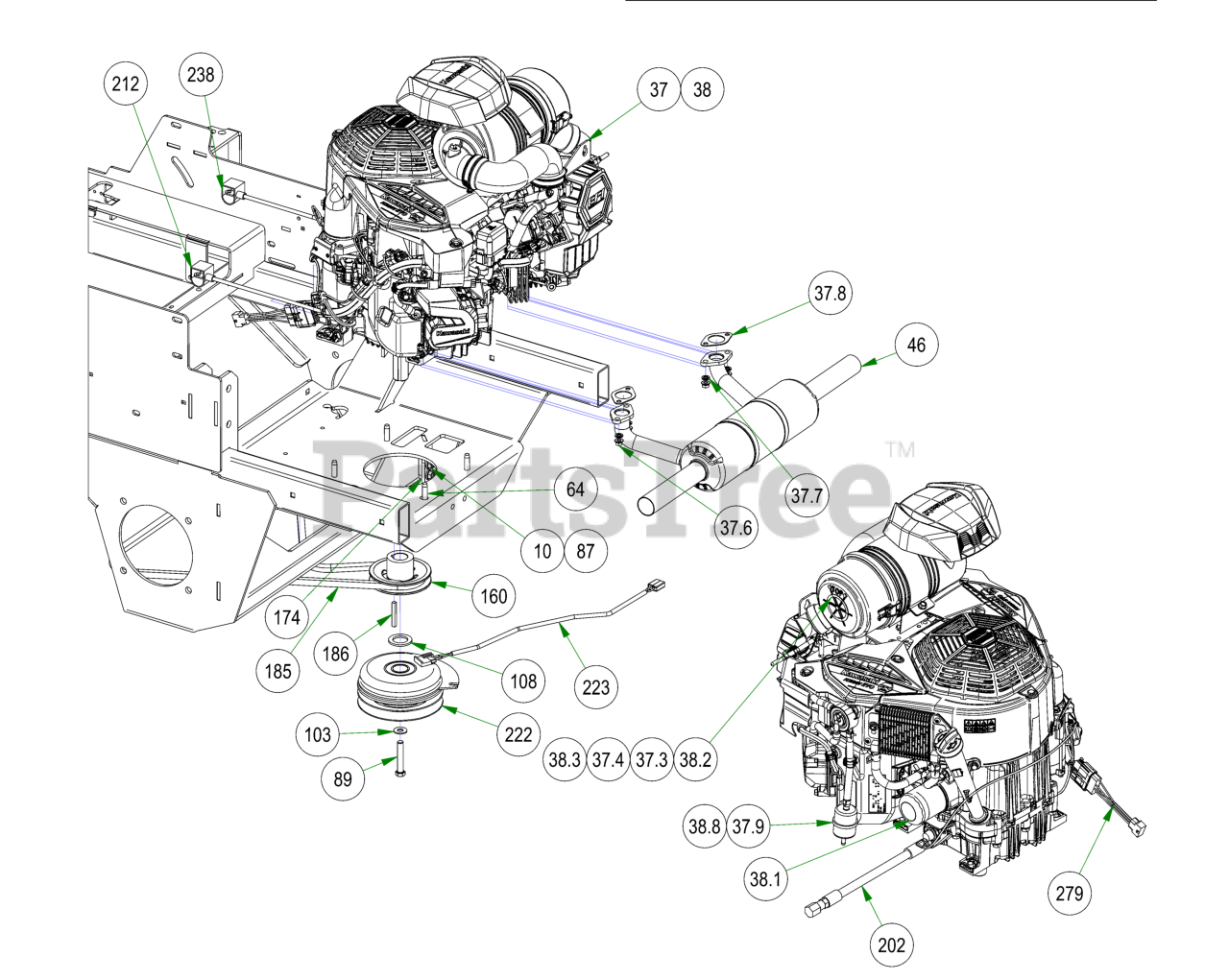

ENGINE - KAWASAKI EVO Parts Diagram

  • Title

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

37

Bad Boy 015-0781-00

KAWASAKI EVO EFI 31HP

$6839.99

$

Usually ships in 4-7 days

0

38

Bad Boy 015-0820-00

KAWASAKI EVO EFI 34HP

$7181.99

$

Usually ships in 4-7 days

0

46

Bad Boy 015-1030-00

Rebel Kawasaki EVO Muffler

$119.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-0082-00

3/8-16 X 1-1/2HEX WASHER UNSLOT SERRATED

$1.99

$

Usually ships in 4-7 days

0

87

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

89

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$3.99

$

Usually ships in 4-7 days

0

103

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

108

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

160

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

174

Bad Boy 039-0178-00

Rebel Clutch Tab

$15.99

$

Usually ships in 4-7 days

0

185

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 8

0

186

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

202

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

212

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

222

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

223

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

224

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

238

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

279

Bad Boy 086-9016-00

Harness Adaptor for Kawasaki EFI

$125.99

$

Usually ships in 4-7 days

0

37.2

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

37.3

Bad Boy 063-8020-00

Inner Air Filter

$34.99

$

In Stock, only 4 left!

0

37.4

Bad Boy 063-8019-00

Outter Air Filter

$38.99

$

In Stock, Qty 10

0

37.5

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

37.6

Bad Boy 015-0543-06

Exhaust Nut

$3.49

$

Usually ships in 4-7 days

0

37.7

Bad Boy 015-0543-05

Exhaust Lock Washer

$1.49

$

Usually ships in 4-7 days

0

37.8

Bad Boy 015-0781-01

Kawasaki EVO Exhaust Gasket

$13.99

$

Usually ships in 4-7 days

0

37.9

Bad Boy 063-6000-00

FUEL FILTER

$15.99

$

In Stock, Qty 19

0

38.2

Bad Boy 063-8020-00

Inner Air Filter

$34.99

$

In Stock, only 4 left!

0

38.3

Bad Boy 063-8019-00

Outter Air Filter

$38.99

$

In Stock, Qty 10

0

38.4

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

38.5

Bad Boy 015-0543-06

Exhaust Nut

$3.49

$

Usually ships in 4-7 days

0

38.6

Bad Boy 015-0543-05

Exhaust Lock Washer

$1.49

$

Usually ships in 4-7 days

0

38.7

Bad Boy 015-0781-01

Kawasaki EVO Exhaust Gasket

$13.99

$

Usually ships in 4-7 days

0

38.8

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0
