Rebel - Bad Boy Zero-Turn Mower (2023) ENGINE - 999cc KAWASAKI FX1000 Parts Diagram

Zero-Turn Mower

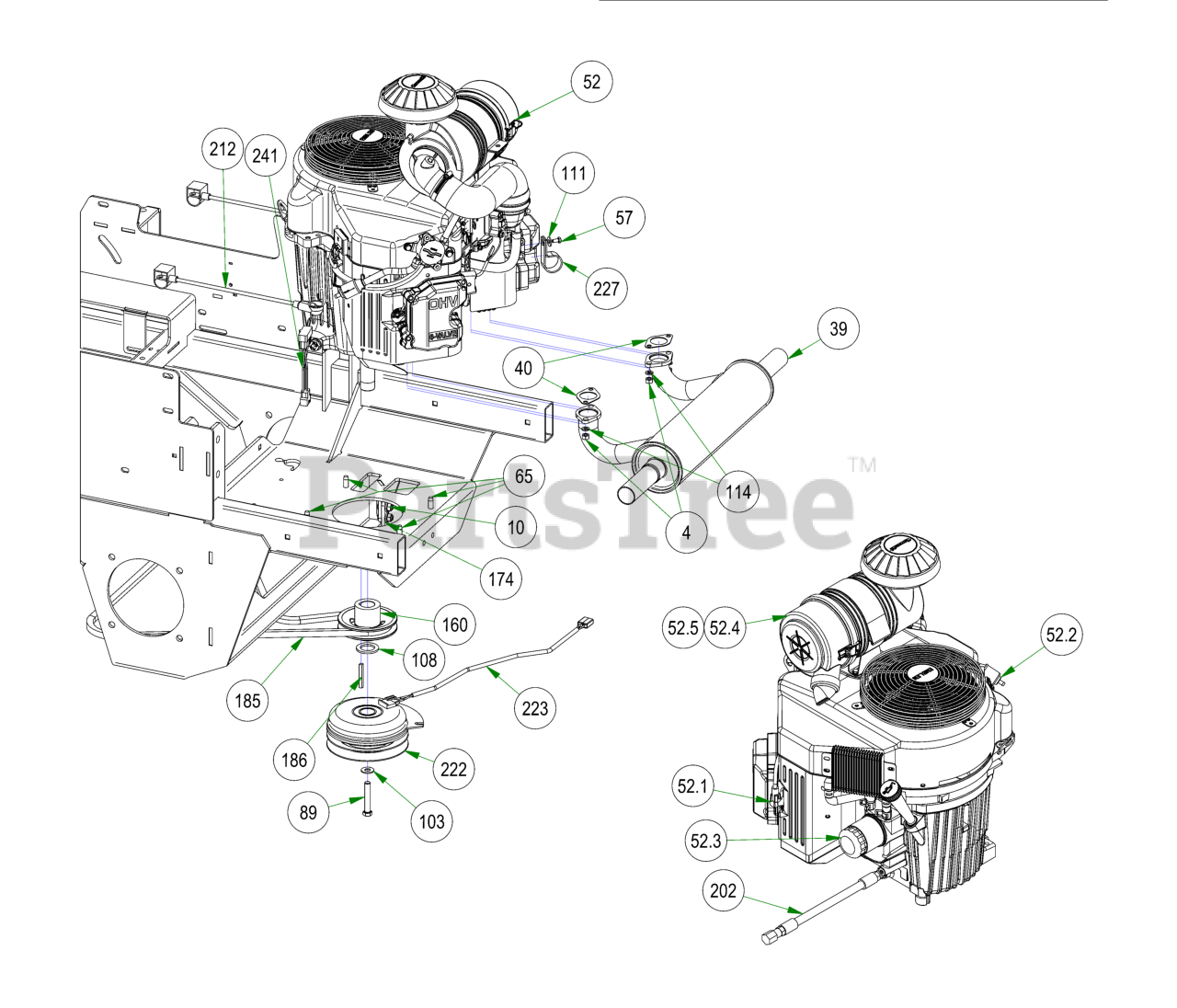

ENGINE - 999cc KAWASAKI FX1000 Parts Diagram

  • Title

4

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

39

Bad Boy 015-1010-00

2019 Rebel/Rogue Kawasaki 1000 Muffler

$226.99

$

Usually ships in 4-7 days

0

40

Bad Boy 015-1010-01

Exhaust Gasket

$9.49

$

In Stock, only 2 left!

0

52

Bad Boy 015-9911-00

Kawasaki FX1000 Engine

$3191.99

$

Usually ships in 4-7 days

0

57

Bad Boy 018-0025-00

M6-1.0 X 12MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

65

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED

$1.99

$

In Stock, Qty 11

0

87

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

89

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$3.99

$

Usually ships in 4-7 days

0

103

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

108

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

111

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

114

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

160

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

174

Bad Boy 039-0178-00

Rebel Clutch Tab

$15.99

$

Usually ships in 4-7 days

0

185

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 8

0

186

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 1 left!

0

202

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

212

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

222

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

223

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

224

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

227

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

238

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

241

Bad Boy 086-9002-19

2019 Harness Adaptor-Gen2 FX-ALL

$21.99

$

Usually ships in 4-7 days

0

52.1

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

52.2

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

52.3

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

52.4

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

52.5

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

52.6

Bad Boy 015-1010-01

Exhaust Gasket

$9.49

$

In Stock, only 2 left!

0
