Rebel - Bad Boy Zero-Turn Mower (2023) DRIVE ARM ASSEMLBY CONT. Parts Diagram

Zero-Turn Mower

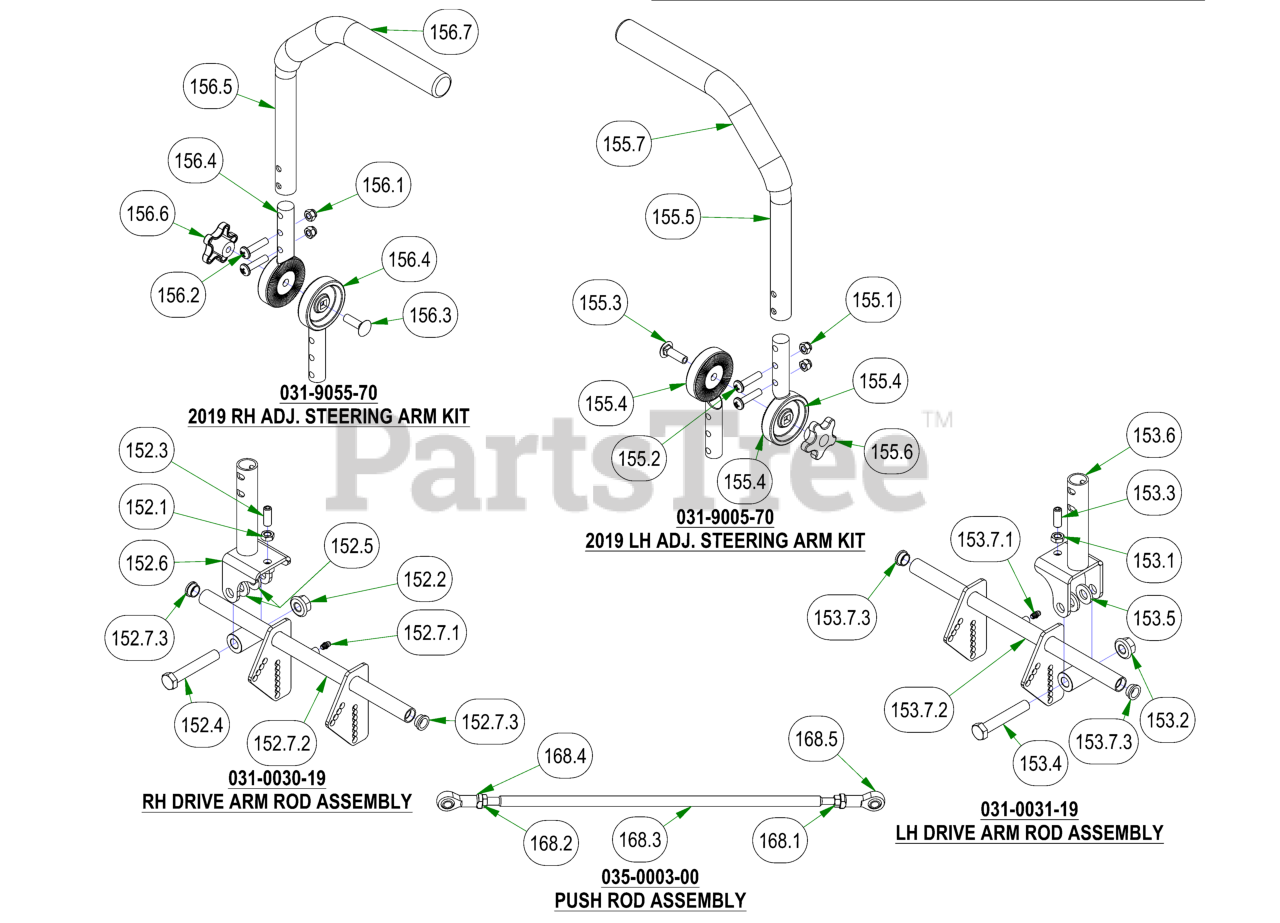

DRIVE ARM ASSEMLBY CONT. Parts Diagram

  • Title

152

Bad Boy 031-0030-19

2019 R Series RH Arm Rod Assembly

$90.99

$

Usually ships in 4-7 days

0

153

Bad Boy 031-0031-19

2019 R Series LH Arm Rod Assembly

$90.99

$

In Stock, only 2 left!

0

155

Bad Boy 031-9005-70

2019 Left Hand ADJ. Steering Arm Kit

$151.99

$

Usually ships in 4-7 days

0

156

Bad Boy 031-9055-70

2019 Right Hand ADJ. Steering Arm Kit

$131.99

$

Usually ships in 4-7 days

0

168

Bad Boy 035-0003-00

2019 Rebel Push Rod Assembly

$45.99

$

Usually ships in 4-7 days

0

152.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

152.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

152.3

Bad Boy 018-0063-00

3/8-16 X 1 SOCKET SET SCREW (CUP POINT) PLAIN

$3.49

$

Usually ships in 4-7 days

0

152.4

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

152.5

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

152.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

152.7

Bad Boy 031-0030-00

2019 Drive Arm Actuator right

$49.99

$

Usually ships in 4-7 days

0

153.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

153.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

153.3

Bad Boy 018-0063-00

3/8-16 X 1 SOCKET SET SCREW (CUP POINT) PLAIN

$3.49

$

Usually ships in 4-7 days

0

153.4

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

153.5

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

153.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

153.7

Bad Boy 031-0031-00

2019 Drive Arm Actuator left

$49.99

$

Usually ships in 4-7 days

0

155.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

155.2

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

155.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

155.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

155.5

Bad Boy 031-9006-00

2019 Steering Arm Tube

$45.99

$

Usually ships in 4-7 days

0

155.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

155.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

156.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

156.2

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

156.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

156.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

156.5

Bad Boy 031-9006-00

2019 Steering Arm Tube

$45.99

$

Usually ships in 4-7 days

0

156.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

156.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

168.1

Bad Boy 013-6050-00

5/16 LH Nut

$4.99

$

Usually ships in 4-7 days

0

168.2

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

168.3

Bad Boy 035-0003-01

2019 Rebel Push Rod

$

$

Currently unavailable

168.4

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

168.5

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

152.7.1

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

152.7.2

Bad Boy 031-0030-10

2019 Drive Arm Actuator right - Weldment

$

$

Currently unavailable

152.7.3

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

153.7.1

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

153.7.2

Bad Boy 031-0031-10

2019 Drive Arm Actuator left - Weldment

$

$

Currently unavailable

153.7.3

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0
