Rebel - Bad Boy Zero-Turn Mower (2023) COVERS & SEAT PAN ASSEMBLY Parts Diagram

Zero-Turn Mower

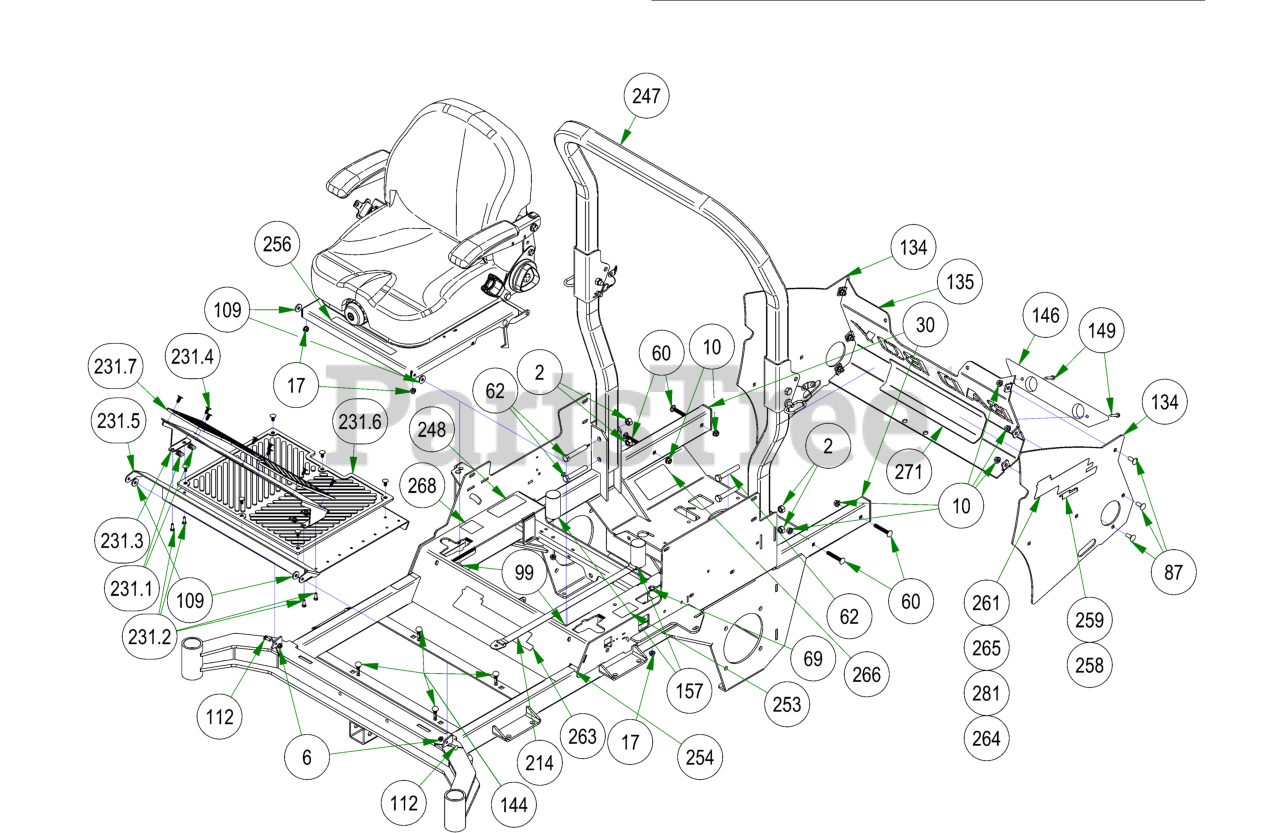

COVERS & SEAT PAN ASSEMBLY Parts Diagram

  • Title

2

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

30

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

56

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

60

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

62

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

69

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

87

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

99

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

109

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

112

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

133

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

134

Bad Boy 026-2219-00

Rebel Rear Cover Side Plate

$193.99

$

Usually ships in 4-7 days

0

135

Bad Boy 026-2221-22

2019 Vertical Rear Cover Tailgate - Black

$257.99

$

Usually ships in 4-7 days

0

144

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

$1.49

$

Usually ships in 4-7 days

0

146

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

149

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

157

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

177

Bad Boy 039-2156-00

Seat Stop

$15.99

$

Usually ships in 4-7 days

0

214

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

215

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

224

Bad Boy 070-2304-00

2023 Rebel Frame - Painted

$797.99

$

Usually ships in 4-7 days

0

225

Bad Boy 071-2103-00

2021 Rebel Seat

$649.99

$

Usually ships in 4-7 days

0

231

Bad Boy 079-3155-20

R-Series Floorboard Assembly

$

$

Currently unavailable

247

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

$497.99

$

Usually ships in 4-7 days

0

248

Bad Boy 091-0015-23

2023 EPA Build Date Punch Decal

$1.49

$

Usually ships in 4-7 days

0

253

Bad Boy 091-1101-18

2018 Out/XP/Diesel Brake Decal

$6.49

$

Usually ships in 4-7 days

0

254

Bad Boy 091-1114-00

2018 LH/RH Steering Control Decal Roll

$16.99

$

Usually ships in 4-7 days

0

256

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

258

Bad Boy 091-4003-22

2022 Powered By Kawasaki Decal

$2.99

$

Usually ships in 4-7 days

0

259

Bad Boy 091-4004-22

2022 Powered By Kohler Decal

$6.49

$

Usually ships in 0 days

0

261

Bad Boy 091-4007-00

2019 Rebel 852cc Backplate Cluster

$13.99

$

Usually ships in 4-7 days

0

263

Bad Boy 091-4010-00

2019 Rebel Cooler Cover Decal

$8.49

$

Usually ships in 4-7 days

0

264

Bad Boy 091-4011-00

2019 Rebel 747cc Backplate Cluster

$13.99

$

Usually ships in 4-7 days

0

265

Bad Boy 091-4023-00

2019 Rebel 999cc Backplate Cluster

$15.99

$

Usually ships in 4-7 days

0

266

Bad Boy 091-4034-00

2019 Rebel Pump Belt Route Decal

$7.99

$

Usually ships in 0 days

0

268

Bad Boy 091-4037-00

2019 Deck Release Decal

$8.49

$

Usually ships in 4-7 days

0

269

Bad Boy 091-4038-00

Control Adj. Control Rod Decal

$6.49

$

Usually ships in 4-7 days

0

270

Bad Boy 091-4039-00

Control Adj. Control Dampener Decal

$6.49

$

Usually ships in 4-7 days

0

271

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

$15.99

$

Usually ships in 4-7 days

0

281

Bad Boy 091-8023-00

Rebel Kawasaki 822cc Backplate Decal

$

$

Not available

231.1

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

231.2

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

231.3

Bad Boy 026-2230-00

OUTLAW ADJUSTABLE FOOT PLATE-ORANGE

$75.99

$

Usually ships in 4-7 days

0

231.4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

231.5

Bad Boy 079-3155-00

2019 Outlaw Floorboard

$125.99

$

Usually ships in 4-7 days

0

231.6

Bad Boy 081-0050-00

MAT (FLOOR)

$83.99

$

Usually ships in 4-7 days

0

231.7

Bad Boy 081-0051-00

MAT (FOOT PLATE)

$83.99

$

Usually ships in 4-7 days

0
