Rebel - Bad Boy Zero-Turn Mower (2022) TANKS & BATTERY Parts Diagram

Zero-Turn Mower

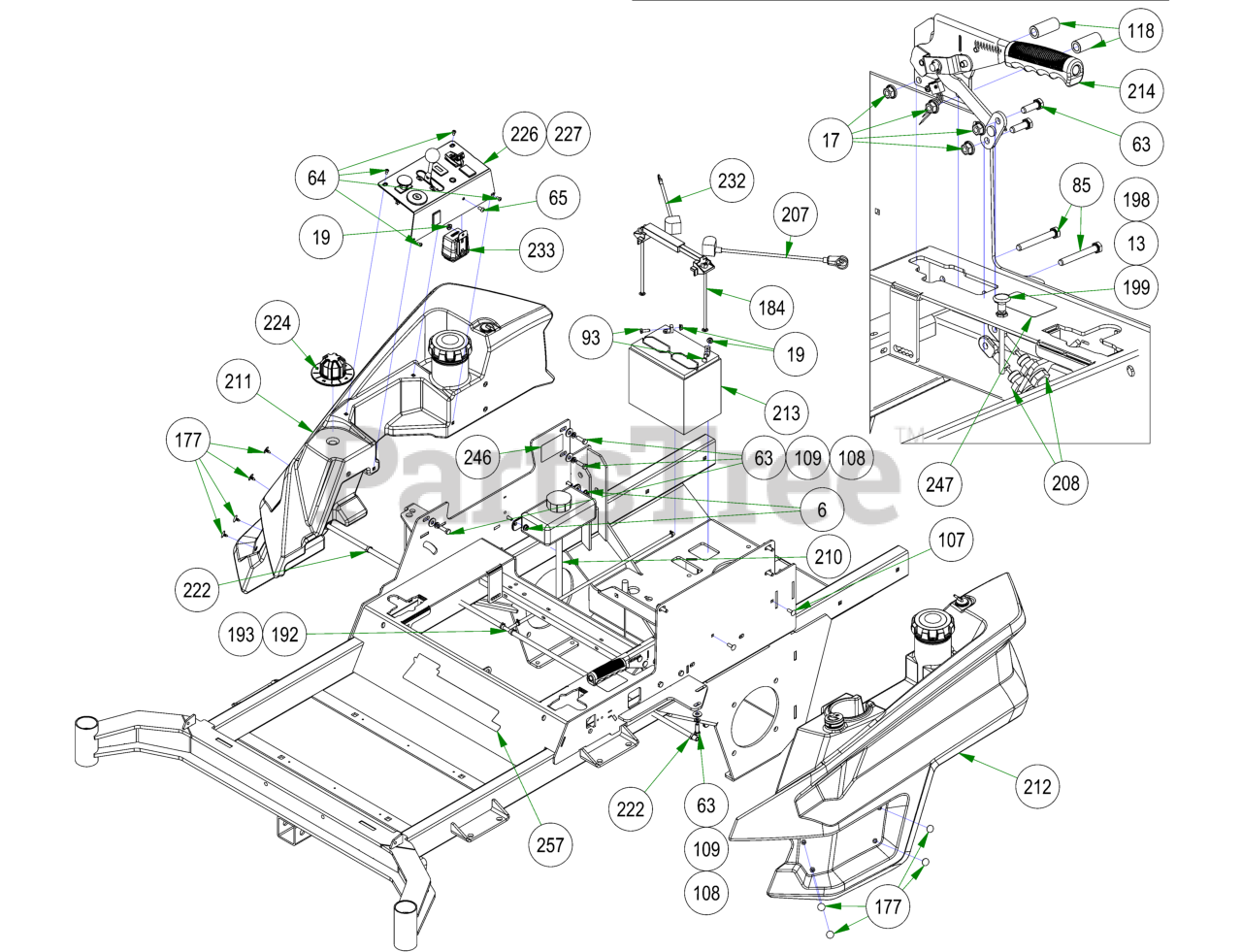

TANKS & BATTERY Parts Diagram

  • Title

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

13

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

63

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

64

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 9

0

65

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

85

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

93

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

107

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

108

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

109

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

117

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

118

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE

$7.99

$

Usually ships in 4-7 days

0

177

Bad Boy 040-6081-00

3/16 x .48 Christmas Tree Nylon Black

$3.49

$

Usually ships in 4-7 days

0

184

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

192

Bad Boy 051-2019-22

2019 Rebel Rogue Renegade Fuel Line for Vanguard & Yamaha

$47.99

$

Usually ships in 4-7 days

0

193

Bad Boy 051-2019-32

2019 Rebel Rogue Renegade Fuel Line for Kawasaki

$56.99

$

Usually ships in 4-7 days

0

198

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

199

Bad Boy 054-8019-00

Choke for 36Hp Vanguard & FX1000 Kawasaki

$28.99

$

In Stock, Qty 20+

0

207

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

208

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 3 left!

0

210

Bad Boy 067-8085-19

2019 Rebel Hydro Tank Assembly

$53.99

$

Usually ships in 4-7 days

0

211

Bad Boy 067-9950-50

2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)

$378.99

$

Usually ships in 4-7 days

0

212

Bad Boy 067-9960-50

2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)

$265.99

$

In Stock, only 2 left!

0

213

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

214

Bad Boy 069-0001-00

2019 Brake Handle Assembly

$151.99

$

In Stock, only 2 left!

0

218

Bad Boy 070-5377-00

2022 Rebel Frame

$

$

Currently unavailable

222

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

224

Bad Boy 077-9002-00

2019 Rigid Deck Dial 1.5 to 5.5

$33.99

$

Usually ships in 4-7 days

0

226

Bad Boy 079-3481-19

Rebel/Rogue Control Panel Assy

$124.99

$

Usually ships in 4-7 days

0

227

Bad Boy 079-3581-22

Rebel/Rogue Control Panel Assy-Drive by Wire

$

$

Not available

232

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

233

Bad Boy 086-2050-19

2019 Wiring Harness-Rebel/Rogue

$414.99

$

Usually ships in 4-7 days

0

246

Bad Boy 091-1020-00

Hydraulic Decal

$1.49

$

Usually ships in 4-7 days

0

247

Bad Boy 091-1101-18

2018 Out/XP/Diesel Brake Decal

$6.49

$

Usually ships in 4-7 days

0

257

Bad Boy 091-4010-00

2019 Rebel Cooler Cover Decal

$8.49

$

Usually ships in 4-7 days

0

226.9

Bad Boy 079-3483-00

2022 Rebel Control Panel

$

$

Not available

227.1

Bad Boy 079-3483-00

2022 Rebel Control Panel

$

$

Not available
