Rebel - Bad Boy Zero-Turn Mower (2022) ENGINE - 993cc VANGUARD Parts Diagram

Zero-Turn Mower

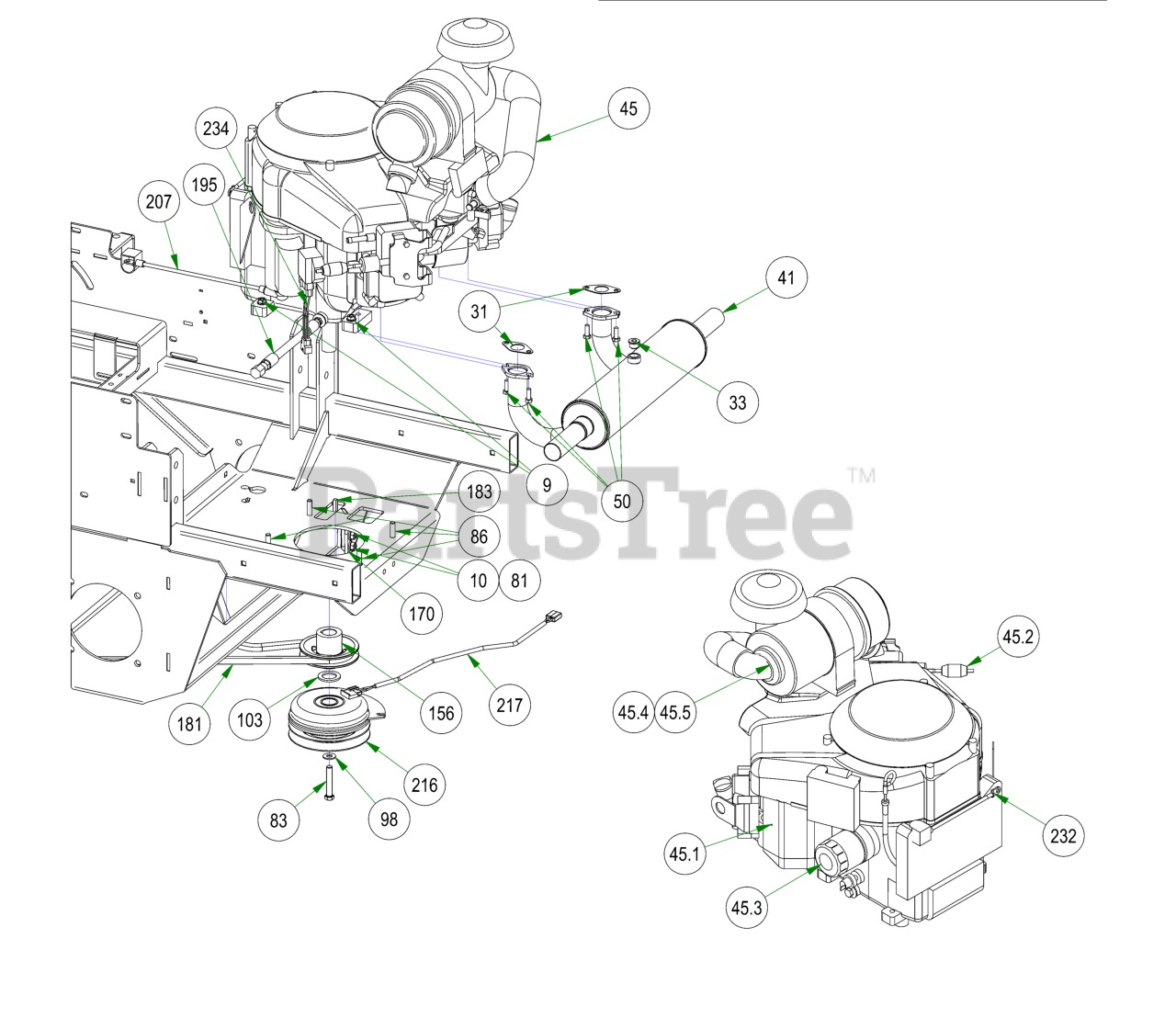

ENGINE - 993cc VANGUARD Parts Diagram

9

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

31

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

33

Bad Boy 015-0050-01

O2 Sensor Plug

$10.99

$

Usually ships in 0 days

0

41

Bad Boy 015-1014-00

Muffler for 36Hp Vanguard

$226.99

$

Usually ships in 4-7 days

0

45

Bad Boy 015-3600-00

993cc Vanguard Engine

$4536.99

$

Usually ships in 4-7 days

0

50

Bad Boy 018-0017-00

Torx Bolt-Exhaust

$6.49

$

Usually ships in 4-7 days

0

81

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

83

Bad Boy 018-5300-00

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$1.49

$

In Stock, only 3 left!

0

86

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

98

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

103

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

156

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

170

Bad Boy 039-0178-00

Rebel Clutch Tab

$15.99

$

Usually ships in 4-7 days

0

181

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 8

0

183

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

195

Bad Boy 051-5402-00

14 mm Oil drain Hose 993cc Vanguard

$33.99

$

Usually ships in 4-7 days

0

207

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

216

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

217

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

218

Bad Boy 070-5377-00

2022 Rebel Frame

$

$

Currently unavailable

232

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

234

Bad Boy 086-9001-19

2019 Harness Adaptor - 36 Vanguard Carberated

$56.99

$

Usually ships in 4-7 days

0

45.1

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

45.2

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

45.3

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0

45.4

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 12

0

45.5

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 5

0
