Rebel - Bad Boy Zero-Turn Mower (2022) ENGINE - 852cc KAWASAKI EFI Parts Diagram

Zero-Turn Mower

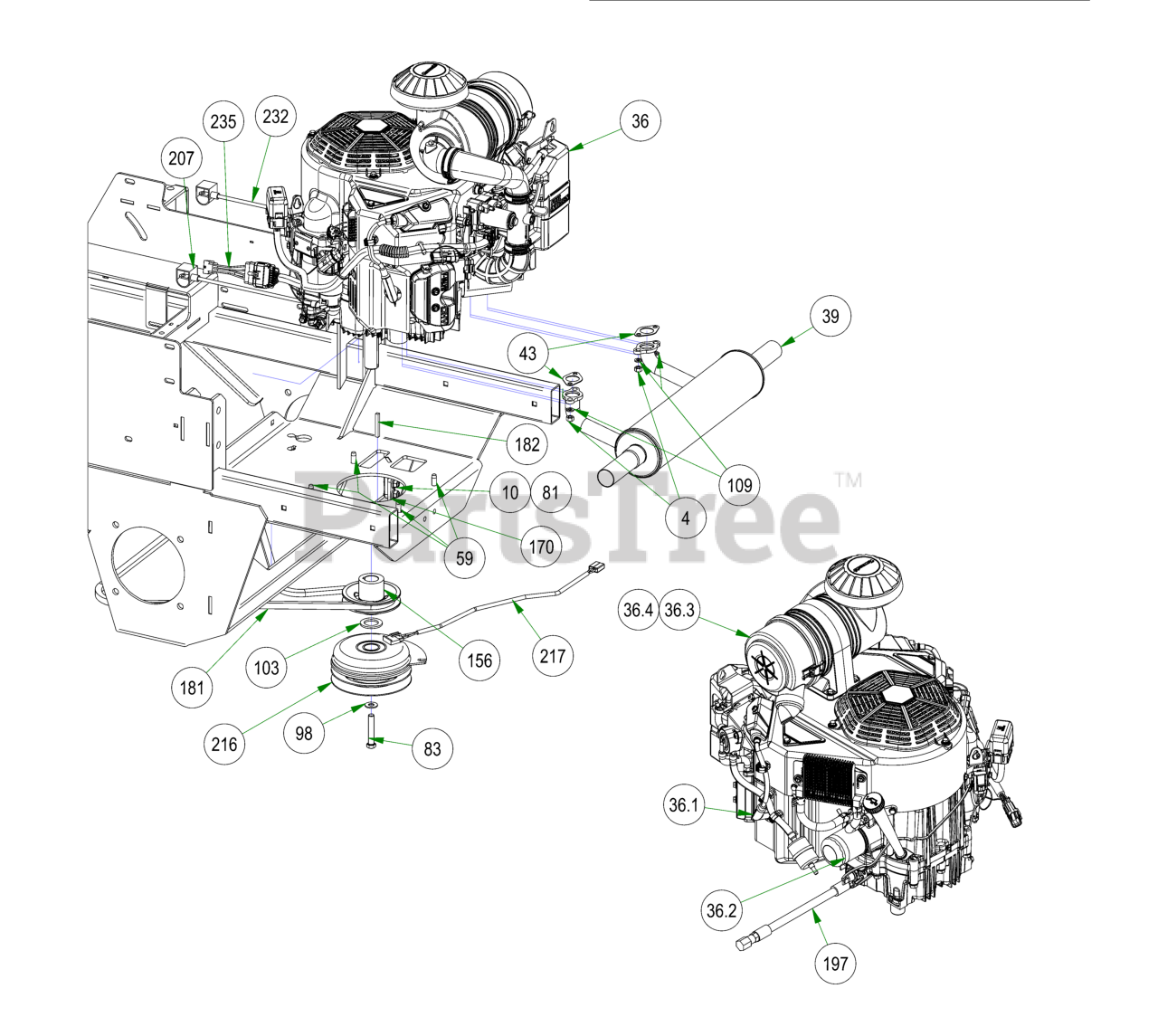

ENGINE - 852cc KAWASAKI EFI Parts Diagram

  • Title

4

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

36

Bad Boy 015-0079-00

Kawasaki FX850V EFI 29.5hp

$

$

Not available

39

Bad Boy 015-1011-00

2019 Rebel/Rogue Kawasaki 850 Muffler

$226.99

$

Usually ships in 4-7 days

0

43

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

59

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED

$1.99

$

In Stock, Qty 11

0

81

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

83

Bad Boy 018-5300-00

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$1.49

$

In Stock, only 3 left!

0

98

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

103

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

109

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

156

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

170

Bad Boy 039-0178-00

Rebel Clutch Tab

$15.99

$

Usually ships in 4-7 days

0

181

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 9

0

182

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

197

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

207

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

216

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

217

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

218

Bad Boy 070-5377-00

2022 Rebel Frame

$

$

Currently unavailable

232

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

235

Bad Boy 086-9002-19

2019 Harness Adaptor-Gen2 FX-ALL

$21.99

$

Usually ships in 4-7 days

0

36.1

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

36.2

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

36.3

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

36.4

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0
