Rebel - Bad Boy Zero-Turn Mower (2022) COVERS & SEAT Parts Diagram

Zero-Turn Mower

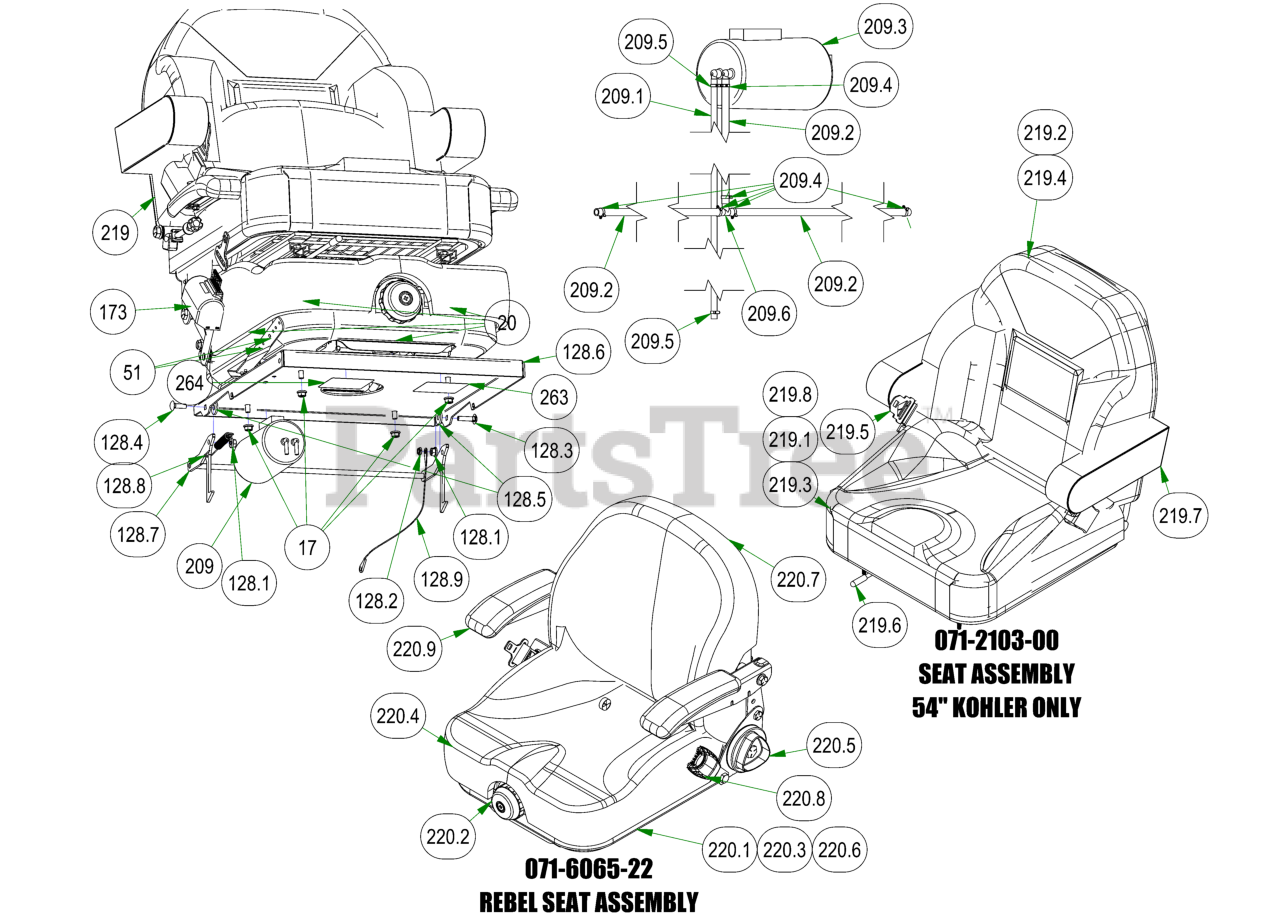

COVERS & SEAT Parts Diagram

  • Title

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

51

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

128

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

128.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

128.2

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

128.3

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

128.4

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

128.5

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

128.6

Bad Boy 026-2019-00

R-SERIES SEAT PLATE

$105.99

$

Usually ships in 4-7 days

0

128.7

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

128.8

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

128.9

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 1 left!

0

145

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

173

Bad Boy 039-2156-00

Seat Stop

$15.99

$

Usually ships in 4-7 days

0

209

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

209.1

Bad Boy 051-2025-66

3/16" Vinyl Tubing, 66" Long

$14.99

$

Usually ships in 4-7 days

0

209.2

Bad Boy 051-8072-38

1/4" Vinyl Tubing 38" Long

$30.99

$

Usually ships in 4-7 days

0

209.3

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 3 left!

0

209.4

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

209.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

209.6

Bad Boy 073-8068-00

fuel line T

$10.99

$

Usually ships in 4-7 days

0

218

Bad Boy 070-5377-00

2022 Rebel Frame

$

$

Currently unavailable

219

Bad Boy 071-2103-00

2021 Rebel Seat

$649.99

$

Usually ships in 4-7 days

0

219.1

Bad Boy 071-2103-01

Seat Cover for 071-2103-00

$166.99

$

Usually ships in 4-7 days

0

219.2

Bad Boy 071-2103-02

Back Cover for 071-2103-00

$149.99

$

Usually ships in 4-7 days

0

219.3

Bad Boy 071-2103-03

Foam Molded Seat for the 071-2103-00

$102.99

$

Usually ships in 4-7 days

0

219.4

Bad Boy 071-2103-04

Foam Molded back for the 071-2103-00

$102.99

$

Usually ships in 4-7 days

0

219.5

Bad Boy 071-2103-05

Seat Belt Set 071-2103-00

$

$

Not available

219.6

Bad Boy 071-5015-00

Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger

$99.99

$

In Stock, only 3 left!

0

219.7

Bad Boy 071-5069-00

Arm Rest Kit for 071-5060-18

$181.99

$

Usually ships in 4-7 days

0

219.8

Bad Boy 071-5070-00

Set Switch fr 071-5060-18

$60.99

$

Usually ships in 4-7 days

0

220

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

220.1

Bad Boy 071-6065-06

4" Single Locking Track Kit

$105.99

$

Usually ships in 4-7 days

0

220.2

Bad Boy 071-6065-05

Weight Adjust Indicator Knob Assy

$34.99

$

Usually ships in 4-7 days

0

220.3

Bad Boy 071-6065-13

Bellows w/Hardware

$68.99

$

Usually ships in 4-7 days

0

220.4

Bad Boy 071-6065-16

Cushion Cover Kit for I3M-Logo

$175.99

$

Usually ships in 4-7 days

0

220.5

Bad Boy 071-6065-10

Recliner Adjustment Knob-New

$34.99

$

Usually ships in 4-7 days

0

220.6

Bad Boy 071-6065-07

Delta Plunger Switch - N.O.

$22.99

$

Usually ships in 4-7 days

0

220.7

Bad Boy 071-6065-15

Back Cover for I3M - Recl - Logos

$227.99

$

Usually ships in 4-7 days

0

220.8

Bad Boy 071-6065-14

2" Retractable Belt Kit w/Spacers

$

$

Not available

220.9

Bad Boy 071-6065-04

Set of Armrests-SS Front Adj

$156.99

$

Usually ships in 4-7 days

0

263

Bad Boy 091-4038-00

Control Adj. Control Rod Decal

$6.49

$

Usually ships in 4-7 days

0

264

Bad Boy 091-4039-00

Control Adj. Control Dampener Decal

$6.49

$

Usually ships in 4-7 days

0
