Rebel - Bad Boy Zero-Turn Mower (2021) FRONT FORKS Parts Diagram

Zero-Turn Mower

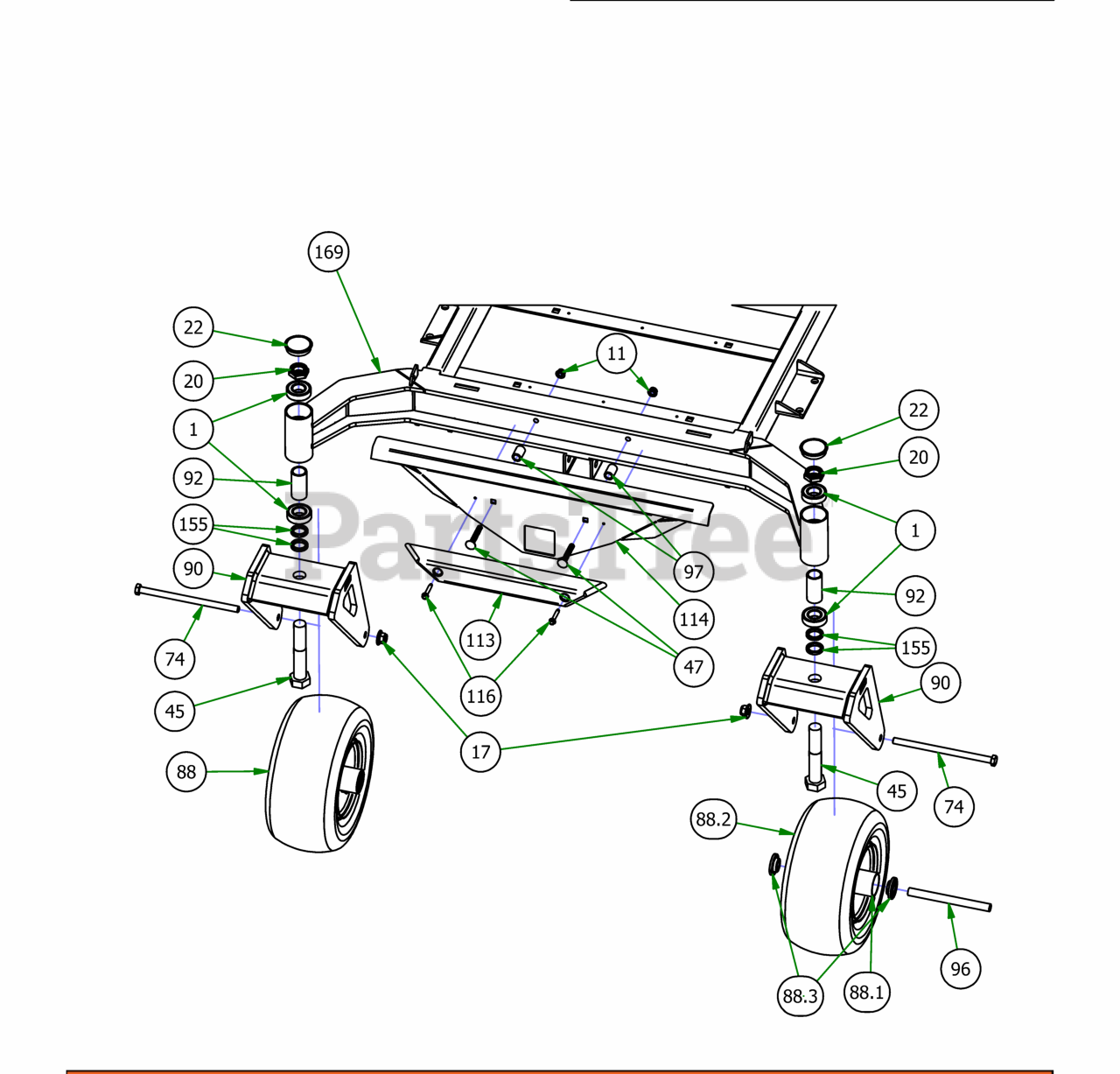

FRONT FORKS Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 8

0

22

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

45

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

47

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

74

Bad Boy 018-7010-00

1/2" x 9" GR 5 Hex Bolt

$6.49

$

In Stock, Qty 15

0

88

Bad Boy 022-3085-00

Tire and black wheel assembly

$128.99

$

In Stock, only 4 left!

0

90

Bad Boy 023-0030-00

2019 Rebel Front Fork - Weldment

$158.99

$

Usually ships in 4-7 days

0

92

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

96

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

97

Bad Boy 025-5337-00

SPACER

$4.99

$

In Stock, only 2 left!

0

113

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

114

Bad Boy 029-8019-00

2019 Outlaw Rigid Front Bumper Plate

$

$

Not available

116

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

155

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 5

0

169

Bad Boy 070-5371-19

2019 Rebel Frame - Powdercoated

$

$

Not available

88.1

Bad Boy 022-3090-00

Black Front Tire Rim

$151.99

$

Usually ships in 4-7 days

0

88.2

Bad Boy 022-5347-00

13 x 6.50 - 6 Tire

$102.99

$

In Stock, only 2 left!

0

88.3

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 16

0
