Rebel - Bad Boy Zero-Turn Mower (2021) ENGINE - 993cc VANGUARD Parts Diagram

Zero-Turn Mower

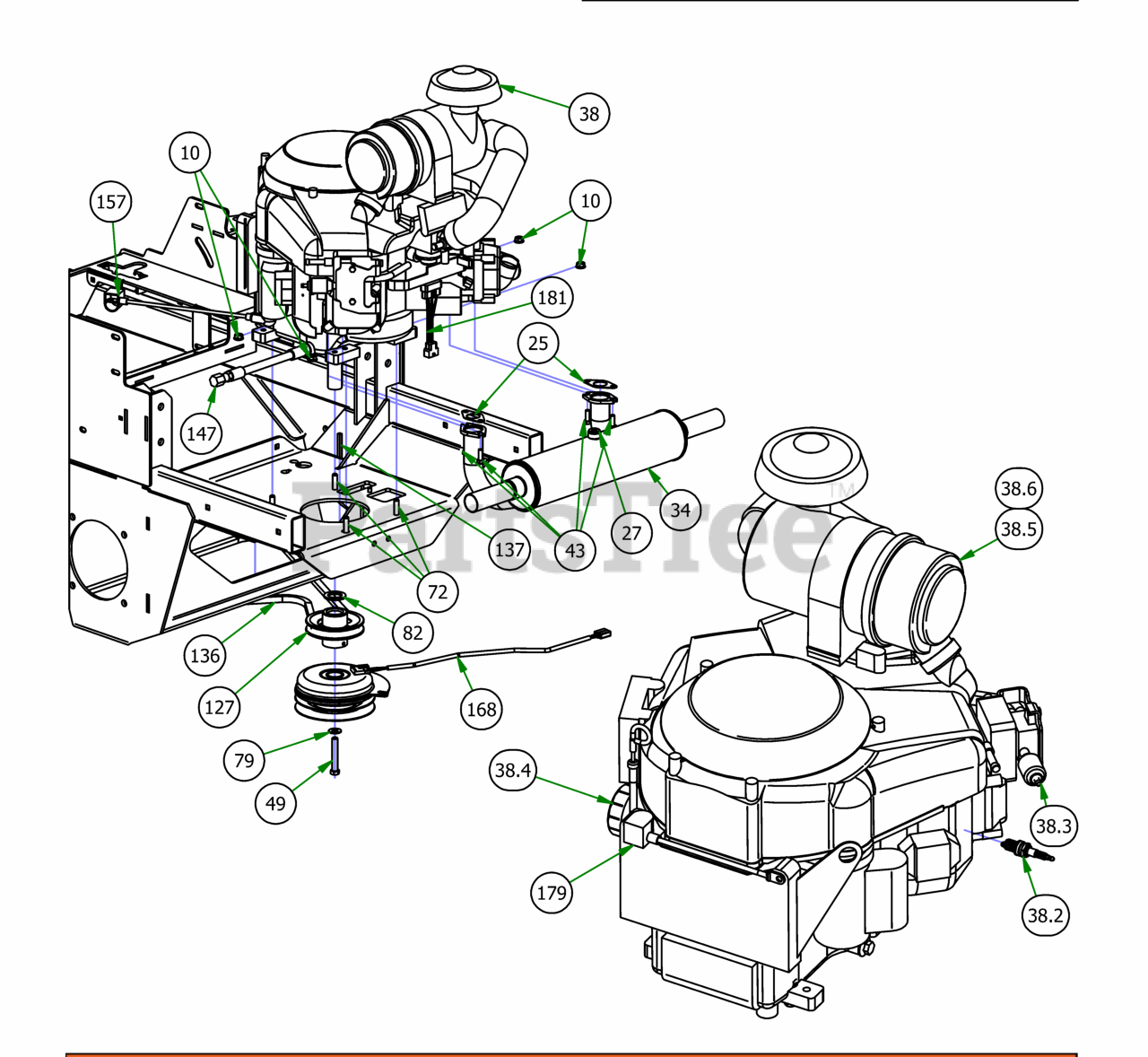

ENGINE - 993cc VANGUARD Parts Diagram

  • Title

10

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

27

Bad Boy 015-0050-01

O2 Sensor Plug

$10.99

$

Usually ships in 0 days

0

34

Bad Boy 015-1014-00

Muffler for 36Hp Vanguard

$226.99

$

Usually ships in 4-7 days

0

38

Bad Boy 015-3600-00

993cc Vanguard Engine

$4536.99

$

Usually ships in 4-7 days

0

43

Bad Boy 018-0017-00

Torx Bolt-Exhaust

$6.49

$

Usually ships in 4-7 days

0

49

Bad Boy 018-0074-00

7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc

$3.49

$

Usually ships in 4-7 days

0

72

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

79

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

82

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

127

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

136

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 9

0

137

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

147

Bad Boy 051-5402-00

14 mm Oil drain Hose 993cc Vanguard

$33.99

$

Usually ships in 4-7 days

0

157

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

167

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

168

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

169

Bad Boy 070-5371-19

2019 Rebel Frame - Powdercoated

$

$

Not available

179

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

181

Bad Boy 086-9001-19

2019 Harness Adaptor - 36 Vanguard Carberated

$56.99

$

Usually ships in 4-7 days

0

38.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

38.3

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

38.4

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0

38.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

38.6

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0
