Rebel - Bad Boy Zero-Turn Mower (2020) TRANSAXLE ASSEMBLY (CONT.) Parts Diagram

Zero-Turn Mower

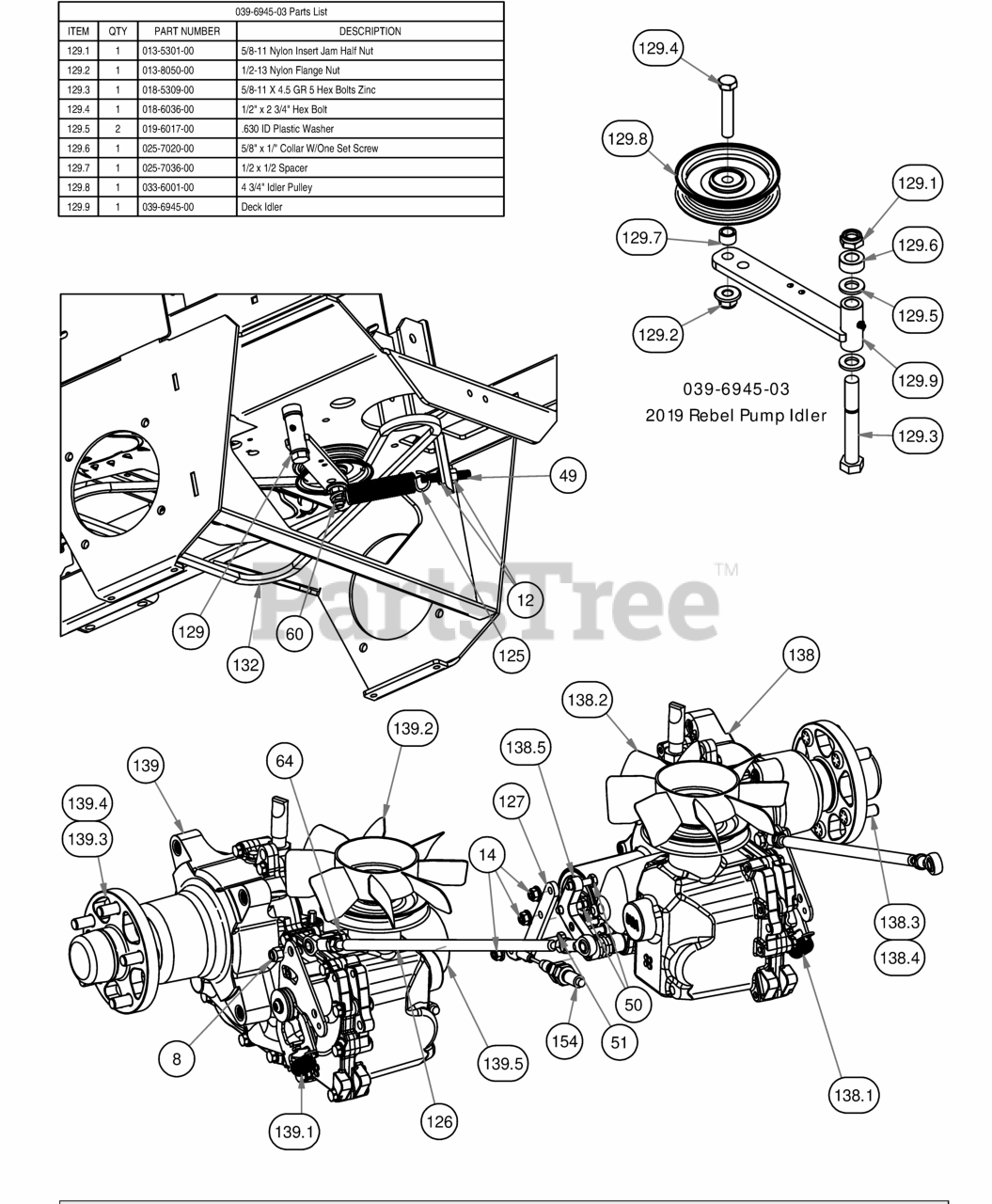

TRANSAXLE ASSEMBLY (CONT.) Parts Diagram

  • Title

8

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

14

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

49

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 5

0

50

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

51

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

60

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 11

0

64

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

125

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

126

Bad Boy 035-0003-00

2019 Outlaw Rigid Push Rod Assembly

$45.99

$

Usually ships in 4-7 days

0

127

Bad Boy 039-2135-00

2015 Outlaw Brake Adapter (4400 Transaxles Only)

$7.99

$

Usually ships in 4-7 days

0

129

Bad Boy 039-6945-03

2019 Rebel Pump Idler

$56.99

$

Usually ships in 4-7 days

0

132

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 8

0

138

Bad Boy 050-1000-00

4400 Transaxle - Left Hand

$1037.99

$

Usually ships in 4-7 days

0

139

Bad Boy 050-1050-00

4400 Transaxle - Right Hand

$1037.99

$

Usually ships in 4-7 days

0

154

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 3 left!

0

138.1

Bad Boy 034-9080-00

Transaxle Spring

$15.99

$

In Stock, Qty 7

0

138.2

Bad Boy 050-1025-00

Fan/Pulley Kit for 4400 Transaxle

$124.99

$

In Stock, only 2 left!

0

138.3

Bad Boy 050-2082-00

Hub/Stud Kit for 4400 Transaxle

$178.99

$

Usually ships in 4-7 days

0

138.4

Bad Boy 050-8003-00

Seal Kit for 4400 Transaxle

$113.99

$

Usually ships in 4-7 days

0

138.5

Bad Boy 063-1070-00

Hydro Filter for 4400 Transaxle

$38.99

$

In Stock, Qty 17

0

139.1

Bad Boy 034-9080-00

Transaxle Spring

$15.99

$

In Stock, Qty 7

0

139.2

Bad Boy 050-1025-00

Fan/Pulley Kit for 4400 Transaxle

$124.99

$

In Stock, only 2 left!

0

139.3

Bad Boy 050-2082-00

Hub/Stud Kit for 4400 Transaxle

$178.99

$

Usually ships in 4-7 days

0

139.4

Bad Boy 050-8003-00

Seal Kit for 4400 Transaxle

$113.99

$

Usually ships in 4-7 days

0

139.5

Bad Boy 063-1070-00

Hydro Filter for 4400 Transaxle

$38.99

$

In Stock, Qty 17

0

129.1

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, Qty 6

0

129.2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

129.3

Bad Boy 018-5309-00

5/8-11 X 4.5 GR 5 Hex Bolts Zinc

$3.49

$

Usually ships in 4-7 days

0

129.4

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

129.5

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

129.6

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

129.7

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

129.8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

129.9

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0
