Rebel - Bad Boy Zero-Turn Mower (2020) TANKS & BATTERY (CONT.) 2 Parts Diagram

Zero-Turn Mower

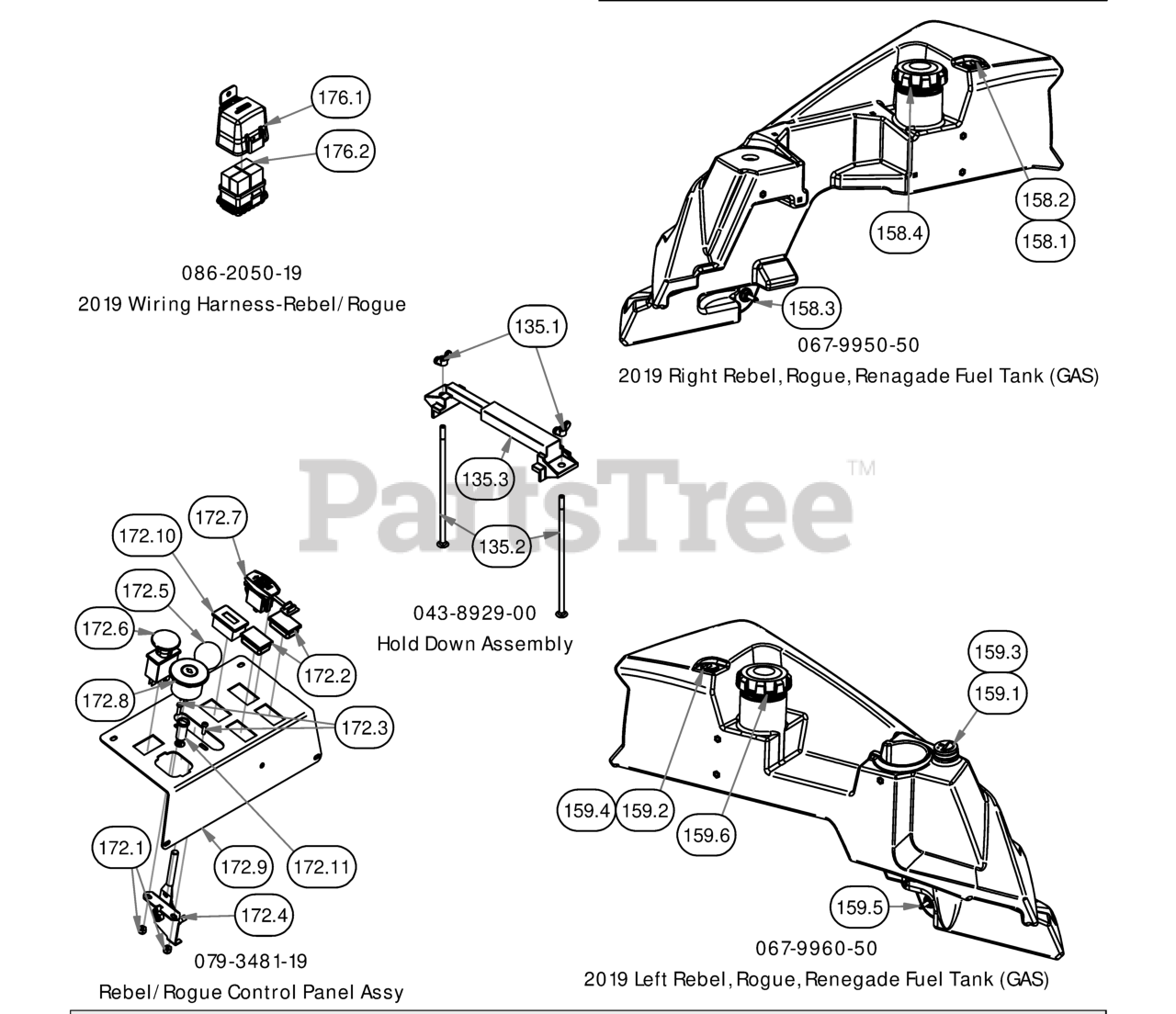

TANKS & BATTERY (CONT.) 2 Parts Diagram

  • Title

135.1

Bad Boy 013-8051-00

1/4" Wing Nut

$0.99

$

In Stock, Qty 5

0

135.2

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

$1.99

$

In Stock, Qty 12

0

135.3

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, Qty 11

0

158.1

Bad Boy 067-6054-00

Roll Over Valve Grommet

$8.49

$

In Stock, only 3 left!

0

158.2

Bad Boy 067-6070-00

Rollover Valve

$26.99

$

In Stock, Qty 20+

0

158.3

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

158.4

Bad Boy 067-9904-00

Fuel Cap

$30.99

$

Usually ships in 4-7 days

0

159.1

Bad Boy 067-4080-00

Fuel Gauge with Grommet

$34.99

$

In Stock, Qty 10

0

159.2

Bad Boy 067-6054-00

Roll Over Valve Grommet

$8.49

$

In Stock, only 3 left!

0

159.3

Bad Boy 067-6056-00

Fuel Gauge Grommet

$7.49

$

In Stock, only 3 left!

0

159.4

Bad Boy 067-6070-00

Rollover Valve

$26.99

$

In Stock, Qty 20+

0

159.5

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

159.6

Bad Boy 067-9904-00

Fuel Cap

$30.99

$

Usually ships in 4-7 days

0

172.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

172.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

172.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

172.4

Bad Boy 055-2012-00

Universal Throttle

$27.99

$

In Stock, only 3 left!

0

172.5

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

172.6

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

172.7

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

172.8

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

172.9

Bad Boy 079-3481-00

2019 Outlaw Control Panel

$11.99

$

Usually ships in 4-7 days

0

176.1

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

176.2

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

172.10

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

172.11

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0
