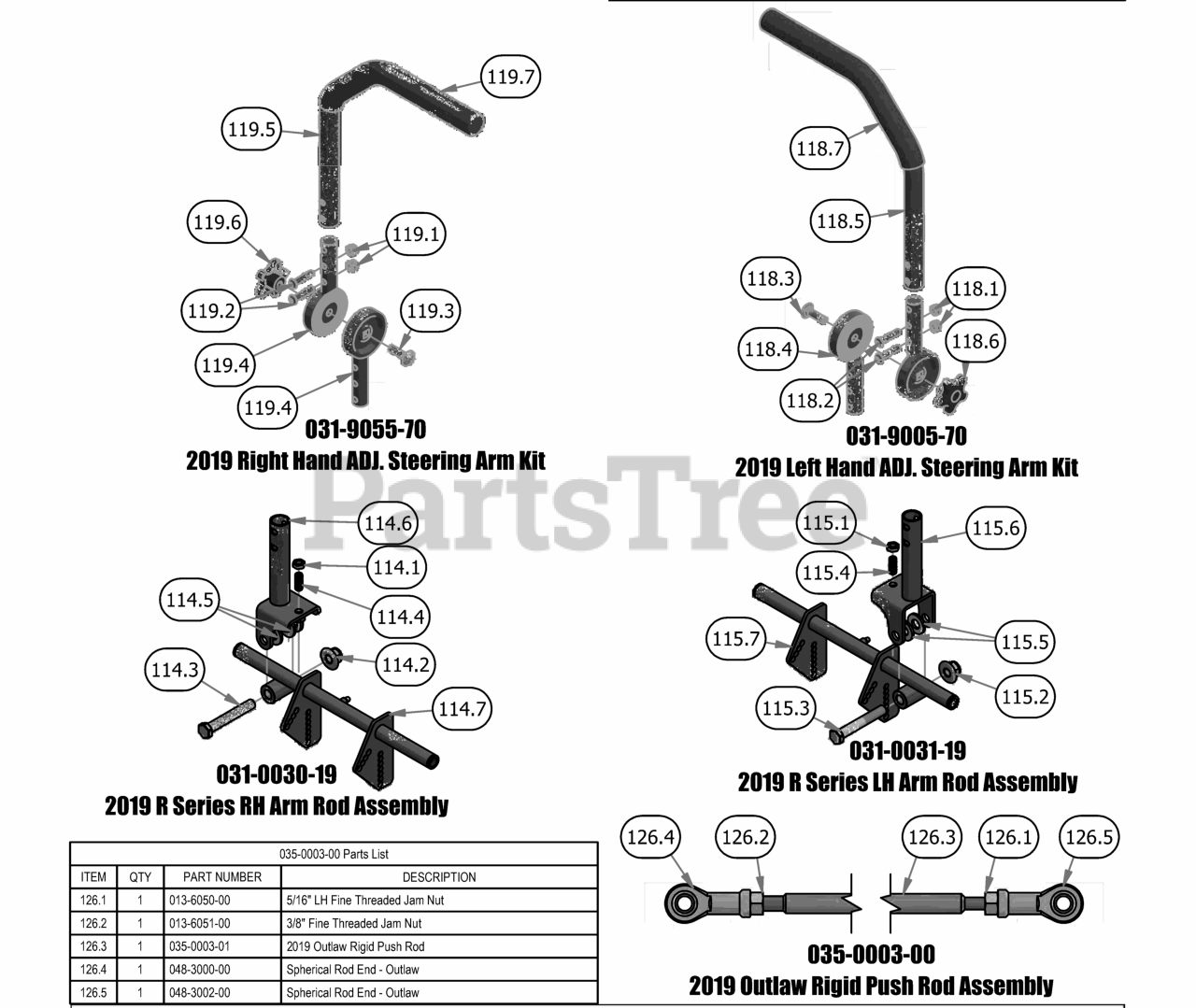

DRIVE ARM ASSEMBLY (CONT.) Parts Diagram

  • Title

114.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

114.2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

114.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

114.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

114.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

114.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

114.7

Bad Boy 031-0030-00

2019 Drive Arm Actuator right

$49.99

$

Usually ships in 4-7 days

0

115.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

115.2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

115.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

115.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

115.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

115.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

115.7

Bad Boy 031-0031-00

2019 Drive Arm Actuator left

$49.99

$

Usually ships in 4-7 days

0

118.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

118.2

Bad Boy 018-2020-18

5/16-18 BHCS, TORX DRIVE

$1.99

$

In Stock, Qty 5

0

118.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

118.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

118.5

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

118.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

118.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

119.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

119.2

Bad Boy 018-2020-18

5/16-18 BHCS, TORX DRIVE

$1.99

$

In Stock, Qty 5

0

119.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

119.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

119.5

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

119.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

119.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

126.1

Bad Boy 013-6050-00

5/16" LH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

126.2

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

126.3

Bad Boy 035-0003-01

2019 Outlaw Rigid Push Rod

$

$

Currently unavailable

126.4

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

126.5

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0
