RE-8 (990946) - Homelite Lawn Tractor, 8hp PTO Group (3856I05) Parts Diagram

Lawn Tractor, 8hp

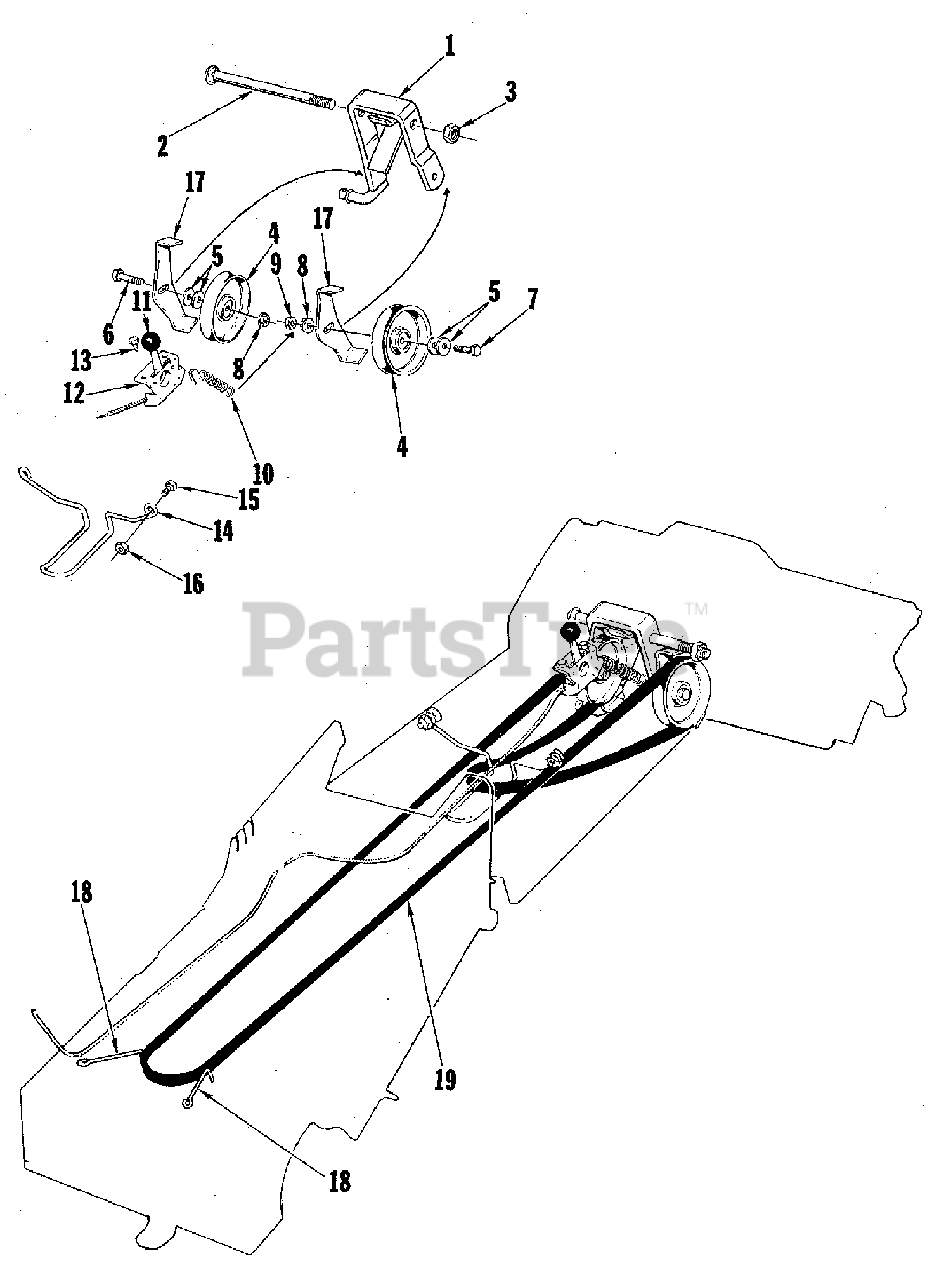

PTO Group (3856I05) Parts Diagram

  • Title
1

Simplicity LM-01767-49

BRACKET, Front, PTO

$

$

Not available

2

Simplicity LM-07020-30

BOLT, Carriage, 1/2-13 x 8

$

$

Not available

3

Simplicity LM-07180-63

NUT, Lock, 1/2-13

$

$

Not available

$

$

Not available

5

Simplicity LM-01574-24

WASHER, Special

$

$

Not available

6

Simplicity LM-07150-45

SCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

7

Simplicity LM-09237-01

SCREW, Hex, 3/8-16 x 2

$

$

Not available

8

Simplicity LM-07180-64

NUT, Flange, 3/8-26

$

$

Not available

9

Simplicity LM-09287-31

NUT, Lock, 3/8-16

$

$

Not available

$

$

Not available

$

$

Not available

12

Simplicity LM-01768-68

CONTROL, Throttle

$

$

Not available

13

Simplicity LM-09290-00

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

14

$

$

Not available

15

Simplicity LM-09193-19

SCREW, Hex, 5/16-18 x 7/8

$

$

Not available

16

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

17

$

$

Not available

18

$

$

Not available

19

$

$

Not available
