RE-8 (990946) - Homelite Lawn Tractor, 8hp Mower Housing Group (3856I07) Parts Diagram

Lawn Tractor, 8hp

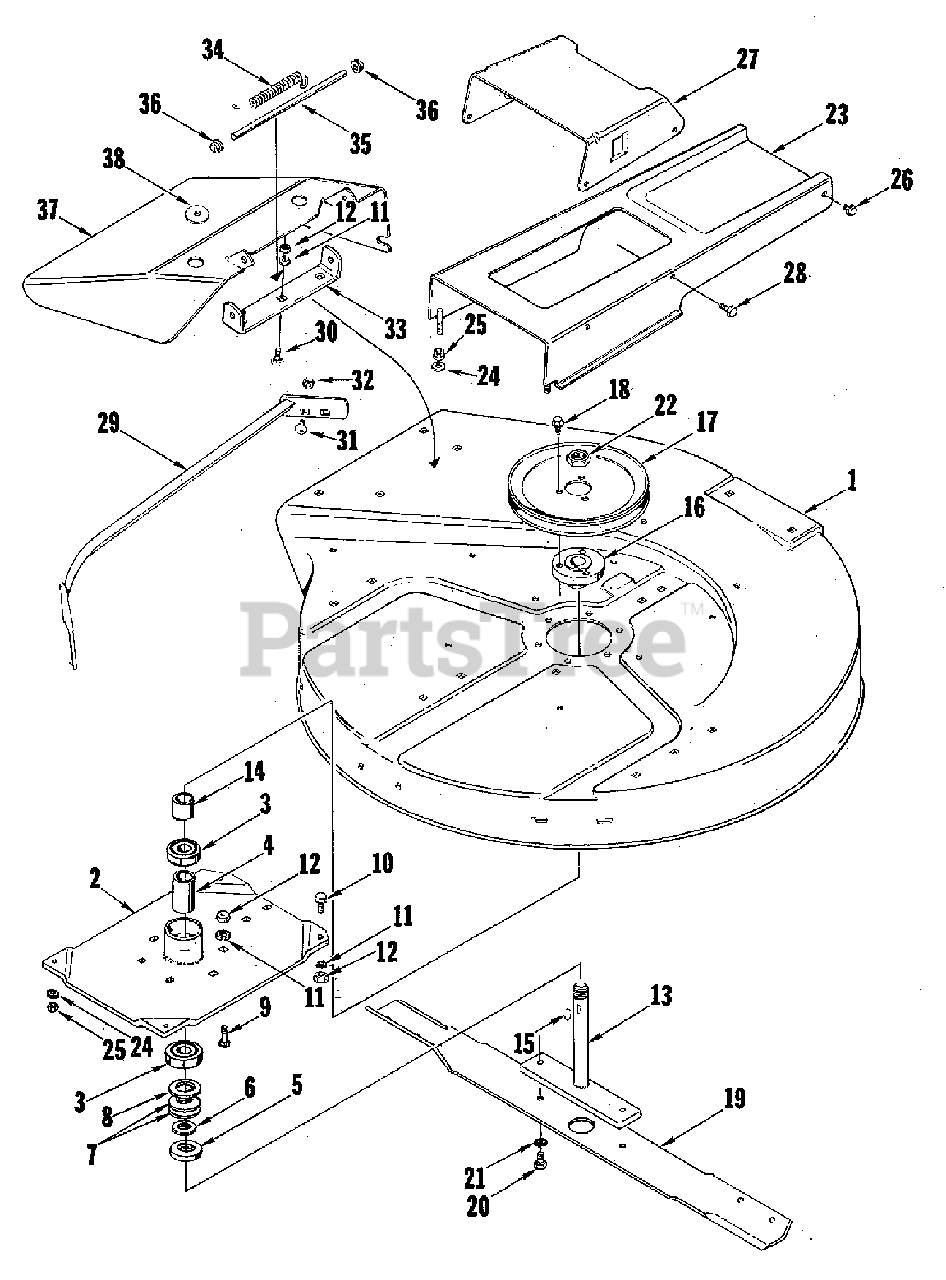

Mower Housing Group (3856I07) Parts Diagram

  • Title
1

Simplicity LM-16083-51

HOUSING, Mower 30"

$

$

Not available

2

Simplicity LM-01769-86

ARBOR TUBE ASSEMBLY

$

$

Not available

3

Simplicity LM-01082-02

BEARING, Ball

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

9

Simplicity LM-09211-58

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

10

Simplicity LM-09164-31

SCREW, Hex, 5/16-18 x 1

$

$

Not available

11

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

12

Simplicity LM-09173-72

NUT, Hex, Full, 5/16-18

$

$

Not available

13

Simplicity LM-01768-89

ARBOR ASSEMBLY

$

$

Not available

$

$

Not available

$

$

Not available

16

$

$

Not available

$

$

Not available

18

Simplicity LM-07151-77

SCREW, Thread Forming, 3/8-16 x 3/4

$

$

Not available

19

$

$

Not available

20

$

$

Not available

21

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

22

Simplicity LM-09221-33

NUT, Hex Jam, 3/4-16

$

$

Not available

23

Simplicity LM-01767-72

LOWER COVER ASSEMBLY

$

$

Not available

24

Simplicity LM-09176-42

WASHER, Plain, 5/16

$

$

Not available

25

Simplicity LM-09290-01

NUT, Flange, 5/16

$

$

Not available

26

Simplicity LM-09227-30

SCREW, Hex, 3/8-16 x 1/2

$

$

Not available

27

Simplicity LM-01767-91

COVER, Upper

$

$

Not available

28

Simplicity LM-09290-00

SCREW, 1/4-20 x 3/8

$

$

Not available

29

Simplicity LM-16083-74

STONE GUARD ASSEMBLY

$

$

Not available

30

Simplicity LM-09194-14

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

31

Simplicity LM-09237-00

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

32

Simplicity LM-09286-98

NUT, Hex Full Lock, 5/16-18

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

36

$

$

Not available

37

$

$

Not available

38

Simplicity LM-81611-99

WASHER, Special

$

$

Not available
