RE-8 (990946) - Homelite Lawn Tractor, 8hp Mower Control Group (3856I08) Parts Diagram

Lawn Tractor, 8hp

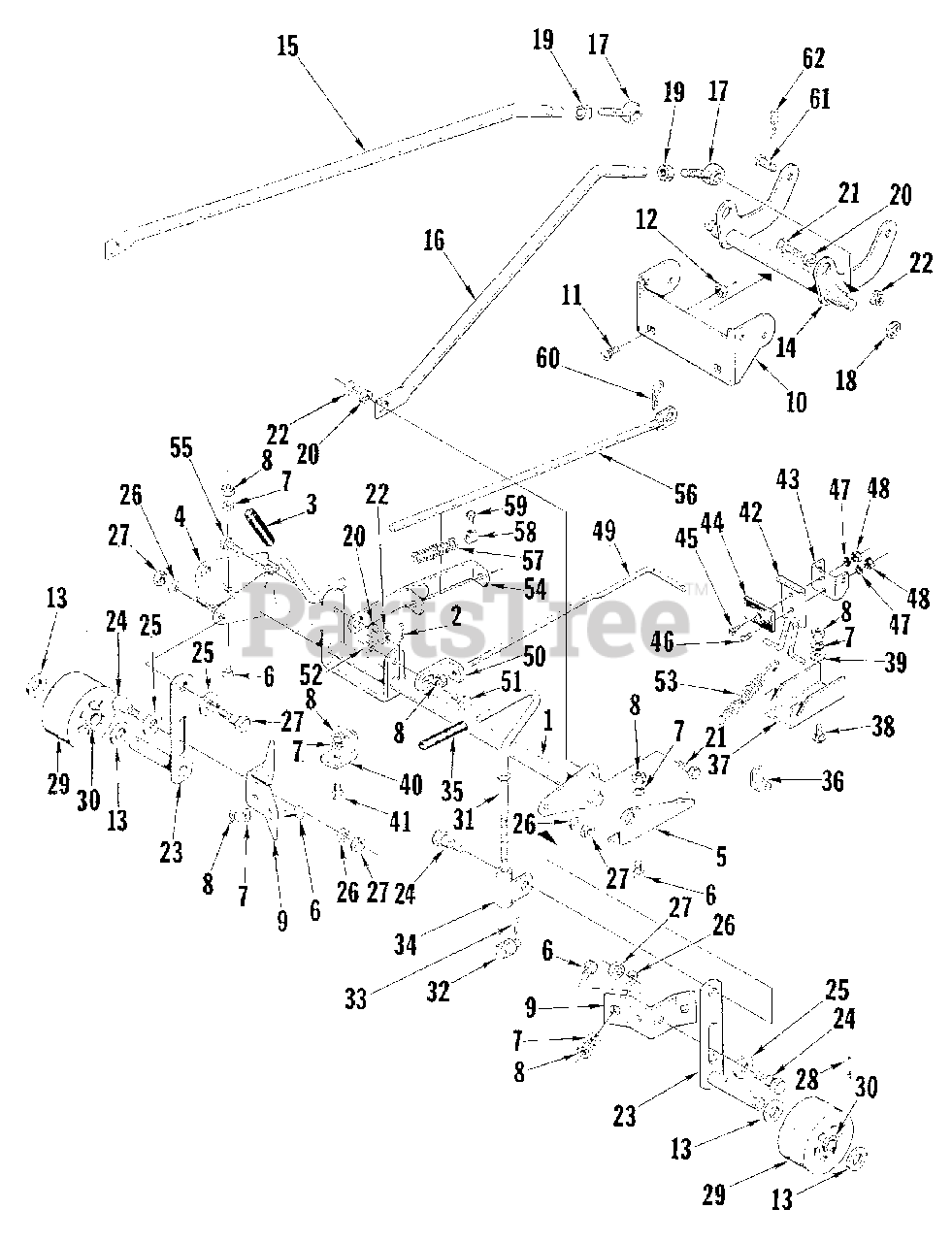

Mower Control Group (3856I08) Parts Diagram

  • Title

1

Simplicity LM-01759-43

CONTROL ARM ASSEMBLY

$

$

Not available

2

Simplicity LM-09181-11

PIN, Roll

$

$

Not available

3

Simplicity LM-01611-05

GRIP, Handle

$

$

Not available

4

Simplicity LM-01767-69

BRACKET, Pivot

$

$

Not available

5

Simplicity LM-01767-70

BRACKET, Pivot

$

$

Not available

6

Simplicity LM-09194-13

BOLT, 5/16-18 x 5/8

$

$

Not available

7

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

8

Simplicity LM-09173-72

NUT, Hex Full, 5/16-18

$

$

Not available

9

Simplicity LM-16022-11

ROLLER BRACKET SUPPORT

$

$

Not available

10

Simplicity LM-01767-88

BRACKET, Front Mower

$

$

Not available

11

Simplicity LM-07150-82

SCREW, Whiz Lock, 5/16-18 x 3/4

$

$

Not available

12

Simplicity LM-09290-01

NUT, Flange, 5/16

$

$

Not available

13

Simplicity LM-01773-51

WASHER

$

$

Not available

14

Simplicity LM-01759-35

ROCKER ARM ASSEMBLY

$

$

Not available

15

Simplicity LM-01759-42

ARM, Adjusting

$

$

Not available

16

Simplicity LM-01767-36

ARM, Adjusting

$

$

Not available

17

Simplicity LM-01572-15

BOLT, Eye

$

$

Not available

18

Simplicity LM-01583-99

RING, Retaining

$

$

Not available

19

Simplicity LM-09192-62

NUT, Hex Jam, 1/2-20

$

$

Not available

20

Simplicity LM-01530-81

SPACER

$

$

Not available

21

Simplicity LM-09212-10

SCREW, Hex, 3/8-16 x 1

$

$

Not available

22

Simplicity LM-07180-64

NUT, Flange

$

$

Not available

23

Simplicity LM-16076-03

ROLLER SUPPORT ASSEMBLY

$

$

Not available

24

Simplicity LM-16021-86

BOLT, Shoulder

$

$

Not available

25

Simplicity LM-09184-30

WASHER, Plain, 7/16

$

$

Not available

26

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

27

Simplicity LM-09169-50

NUT, Hex Full, 3/8-16

$

$

Not available

28

Simplicity LM-09184-58

PIN, Cotter, 3/16 x 1

$

$

Not available

29

Simplicity LM-16032-06

ROLLER ASSEMBLY

$

$

Not available

30

Simplicity LM-01084-19

BUSHING

$

$

Not available

31

Simplicity LM-01767-75

HANDLE

$

$

Not available

32

Simplicity LM-01081-72

PIVOT

$

$

Not available

33

Simplicity LM-09184-48

PIN, Cotter, 3/32 x 1

$

$

Not available

34

Simplicity LM-01767-77

GUIDE, Rod

$

$

Not available

35

Simplicity LM-01769-85

GRIP

$

$

Not available

36

Simplicity LM-16024-46

ANCHOR, Spring

$

$

Not available

37

Simplicity LM-16079-89

BRACKET, Brake Pivot

$

$

Not available

38

Simplicity LM-09211-58

BOLT, Carriage, 5/16-18 x 1

$

$

Not available

39

Simplicity LM-09176-42

WASHER, Plain, 5/16

$

$

Not available

40

Simplicity LM-01220-52

BRACKET

$

$

Not available

41

Simplicity LM-09193-18

SCREW, Hex, 5/16-18 x 5/8

$

$

Not available

42

Simplicity LM-01767-83

BRAKE SUPPORT ASSEMBLY

$

$

Not available

43

Simplicity LM-01767-85

ANCHOR, Brake Rod

$

$

Not available

44

Simplicity LM-16105-90

SHEAVE, Brake

$

$

Not available

45

Simplicity LM-07095-00

SCREW, Slotted, 10-24 x 5/8

$

$

Not available

46

Simplicity LM-07100-12

SCREW, 10-24 x 1/2

$

$

Not available

47

Simplicity LM-07200-11

WASHER, #10

$

$

Not available

48

Simplicity LM-09166-21

NUT, Hex, 10-24

$

$

Not available

49

Simplicity LM-01767-42

ROD, Brake

$

$

Not available

50

Simplicity LM-01767-39

BRACKET, Brake Adjusting

$

$

Not available

51

Simplicity LM-01087-11

BOLT, Shoulder

$

$

Not available

52

Simplicity LM-09234-28

NUT, Hex Full Lock, 3/8-16

$

$

Not available

53

Simplicity LM-16028-94

SPRING

$

$

Not available

54

Simplicity LM-01767-43

GUIDE, Rod

$

$

Not available

55

Simplicity LM-09077-31

SCREW, Hex, 3/8-16 x 1

$

$

Not available

56

Simplicity LM-01768-74

ROD, Clutch

$

$

Not available

57

Simplicity LM-01620-65

SPRING

$

$

Not available

58

Simplicity LM-01052-01

COLLAR, Set

$

$

Not available

59

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8

$

$

Not available

60

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

61

Simplicity LM-01563-06

PIN

$

$

Not available

62

Simplicity LM-01067-88

CLIP, Spring

$

$

Not available
