RE-5 (990915) - Homelite Lawn Tractor, 5hp Clutch & Brake Group (3855I04) Parts Diagram

Lawn Tractor, 5hp

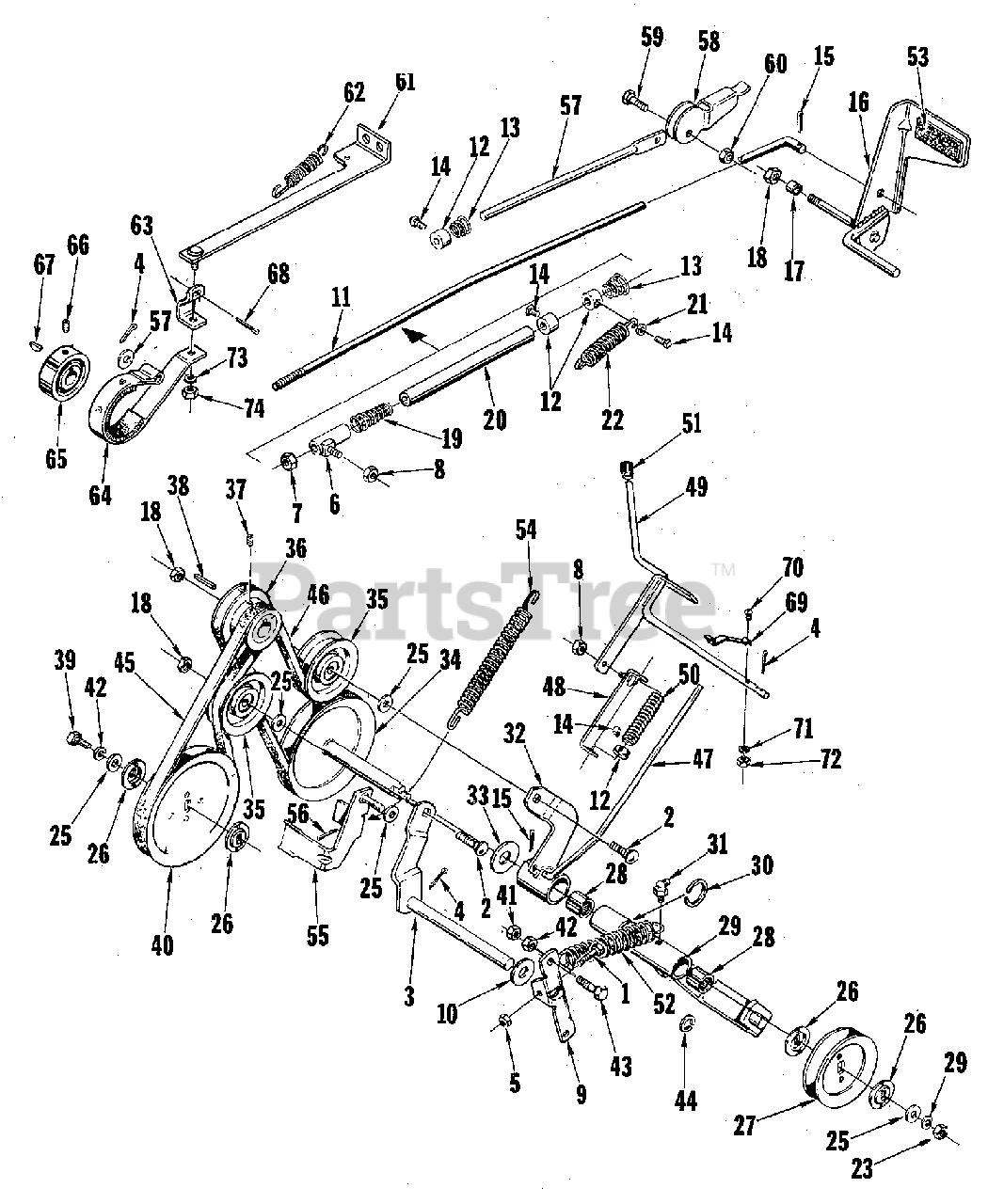

Clutch & Brake Group (3855I04) Parts Diagram

  • Title

1

Simplicity LM-09219-60

SCREW, Hex Cap, 1/4-20 x 1

$

$

Not available

2

Simplicity LM-09222-49

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

3

Simplicity LM-01585-37

ARM, Idler Pulley

$

$

Not available

4

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

5

Simplicity LM-09233-58

NUT, Hex Lock, 1/4-20

$

$

Not available

6

Simplicity LM-01563-03

ROD, Guide

$

$

Not available

7

Simplicity LM-09244-33

NUT, Elastic Stop, 5/16-18

$

$

Not available

8

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

9

Simplicity LM-01585-36

LEVER, Brake & Clutch

$

$

Not available

10

Simplicity LM-09169-60

WASHER, Flat, 17/32

$

$

Not available

11

Simplicity LM-01585-75

ROD, Transmission & Clutch

$

$

Not available

12

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

13

Simplicity LM-01530-10

SPRING

$

$

Not available

14

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8

$

$

Not available

15

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

16

Simplicity LM-01586-04

PEDAL, Foot

$

$

Not available

17

Simplicity LM-16086-57

SPACER

$

$

Not available

18

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

19

Simplicity LM-01570-41

SPRING, Compression

$

$

Not available

20

Simplicity LM-01721-79

SPACER

$

$

Not available

21

Simplicity LM-09169-55

WASHER, Flat, 3/16

$

$

Not available

22

Simplicity LM-01591-59

SPRING

$

$

Not available

23

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

24

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

25

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

26

Simplicity LM-01583-78

WASHER, Special

$

$

Not available

27

Simplicity LM-01584-00

PULLEY

$

$

Not available

28

Simplicity LM-01080-54

BEARING, Needle

$

$

Not available

29

Simplicity LM-01586-32

HOUSING

$

$

Not available

30

Simplicity LM-01583-96

RING, Retaining

$

$

Not available

31

Simplicity LM-09150-19

FITTING, Grease

$

$

Not available

32

Simplicity LM-01534-61

LEVER, Idler

$

$

Not available

33

Simplicity LM-01190-18

WASHER

$

$

Not available

34

Simplicity LM-01586-30

PULLEY & SHAFT

$

$

Not available

35

Simplicity LM-01545-34

PULLEY, Idler

$

$

Not available

36

Simplicity LM-01765-84

PULLEY, Engine

$

$

Not available

37

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

38

Simplicity LM-82210-42

KEY, Square

$

$

Not available

39

Simplicity LM-09233-25

SCREW, Hex Cap, 5/16-18 x 7/8

$

$

Not available

40

Simplicity LM-01583-77

PULLEY, Transmission

$

$

Not available

41

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

42

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

43

Simplicity LM-09199-33

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

44

Simplicity LM-01583-99

RING, Retaining

$

$

Not available

45

Simplicity LM-01585-73

BELT, "V"

$

$

Not available

46

Simplicity LM-01213-98

BELT, "V"

$

$

Not available

47

Simplicity LM-01586-09

ROD, Clutch, PTO

$

$

Not available

48

Simplicity LM-01584-06

GUIDE, Rod

$

$

Not available

49

Simplicity LM-01764-27

HANDLE, Control

$

$

Not available

50

Simplicity LM-01631-03

SPRING

$

$

Not available

51

Simplicity LM-01584-37

KNOB

$

$

Not available

52

Simplicity LM-16083-95

SPRING, Idler Pulley

$

$

Not available

53

Simplicity LM-01620-98

PAD, Pedal

$

$

Not available

54

Simplicity LM-01752-90

SPRING

$

$

Not available

55

Simplicity LM-01765-87

PTO BRAKE ASSEMBLY

$

$

Not available

56

Simplicity LM-09184-47

PIN, Cotter

$

$

Not available

57

Simplicity LM-01764-31

ROD, Brake

$

$

Not available

58

Simplicity LM-01764-25

LEVER

$

$

Not available

59

Simplicity LM-09219-59

SCREW, Hex Cap,, 1/4-20 x 5/8

$

$

Not available

60

Simplicity LM-09233-58

NUT, Hex Lock, 1/4-20

$

$

Not available

61

Simplicity LM-01764-29

GUIDE, Brake

$

$

Not available

62

Simplicity LM-01531-21

SPRING, Reverse Lever

$

$

Not available

63

Simplicity LM-01585-55

LEVER, Brake

$

$

Not available

64

Simplicity LM-01585-52

BAND, Brake

$

$

Not available

65

Simplicity LM-01650-67

DRUM, Brake

$

$

Not available

66

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

67

Simplicity LM-09286-37

KEY, 5/32 x 5/8

$

$

Not available

68

Simplicity LM-09193-14

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

69

Simplicity LM-01764-14

CLIP, Spring

$

$

Not available

70

Simplicity LM-09263-08

SCREW, #10-32 x 3/4

$

$

Not available

71

Simplicity LM-09090-55

WASHER, Lock, #10

$

$

Not available

72

Simplicity LM-09174-15

NUT, Hex, #10-32

$

$

Not available

73

Simplicity LM-09169-64

WASHER, Lock, 1/4

$

$

Not available

74

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available
