RE-5 (990769) - Homelite Lawn Tractor, 5hp Rear Frame, Transmission & Electric Interlock Group (3855I02) Parts Diagram

Lawn Tractor, 5hp

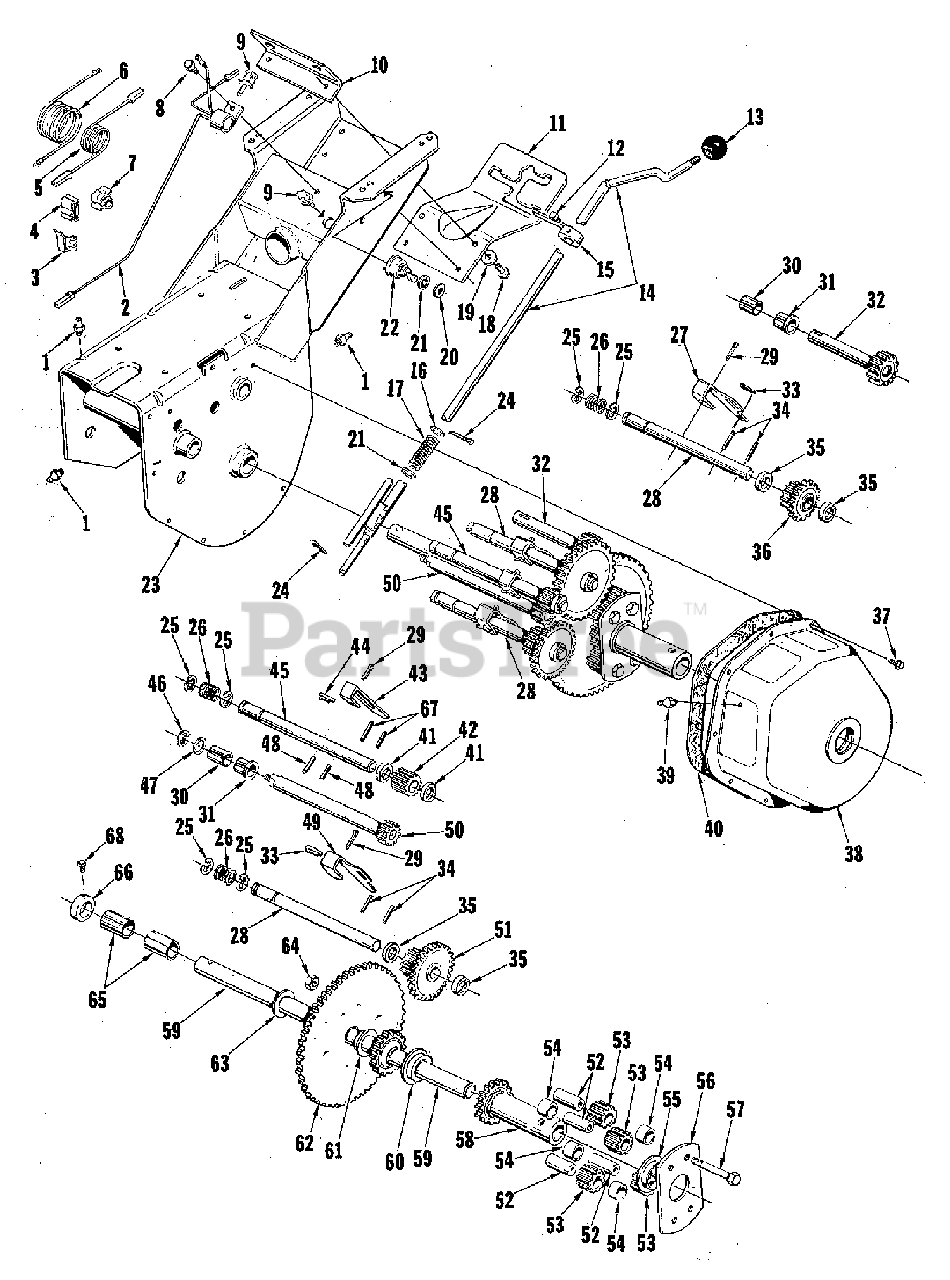

Rear Frame, Transmission & Electric Interlock Group (3855I02) Parts Diagram

  • Title

1

Simplicity LM-09128-08

FITTING, Grease

$

$

Not available

2

Simplicity LM-01764-79

IGNITION, Interlock

$

$

Not available

3

Simplicity LM-01766-87

CLIP, Speed Cable

$

$

Not available

4

Simplicity LM-01767-01

CLIP, Speed Cable

$

$

Not available

5

Simplicity LM-01764-81

WIRE

$

$

Not available

6

Simplicity LM-01764-80

WIRE

$

$

Not available

7

Simplicity LM-01766-75

CLIP, Cable

$

$

Not available

8

Simplicity LM-09290-00

SCREW, Hex, 1/4-20 x 3/8

$

$

Not available

9

Simplicity LM-01746-95

SWITCH, Interlock

$

$

Not available

10

Simplicity LM-01764-21

GUIDE, Shift Rod

$

$

Not available

11

Simplicity LM-01729-23

PLATE, Shift Pattern

$

$

Not available

12

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

13

Simplicity LM-16010-42

KNOB, Shift

$

$

Not available

14

Simplicity LM-01764-38

ROD, Shift

$

$

Not available

15

Simplicity LM-01764-19

LEVER, Shift Rod

$

$

Not available

16

Simplicity LM-80510-56

SPACER, Washer

$

$

Not available

17

Simplicity LM-01585-76

SPRING

$

$

Not available

18

Simplicity LM-09274-29

SCREW, Hex, Taptite, 1/4-20 x 5/8

$

$

Not available

19

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

20

Simplicity LM-09173-85

NUT, Hex, 8-32

$

$

Not available

21

Simplicity LM-09174-89

WASHER, Lock, (Intermediate) #8

$

$

Not available

22

Simplicity LM-01222-18

SWITCH & KEY

$

$

Not available

23

Simplicity LM-01764-24

BASE FRAME & SEAT SUPPORT

$

$

Not available

24

Simplicity LM-09184-52

PIN, Cotter, 1/8 x 1

$

$

Not available

25

Simplicity LM-16021-55

RING, "E"

$

$

Not available

26

Simplicity LM-01585-78

SPRING, Compression

$

$

Not available

27

Simplicity LM-01585-35

LINK, Shift, High

$

$

Not available

28

Simplicity LM-01585-41

SHAFT, Intermediate

$

$

Not available

29

Simplicity LM-09193-14

PIN, Cotter, 3/16 x 1-1/4

$

$

Not available

30

Simplicity LM-01560-64

BEARING, Bronze

$

$

Not available

31

Simplicity LM-01585-69

BEARING, Bronze

$

$

Not available

32

Simplicity LM-01585-48

SHAFT & GEAR, Brake

$

$

Not available

33

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

34

Simplicity LM-09181-11

PIN, Roll, 1/8 x 1

$

$

Not available

35

Simplicity LM-01585-61

COLLAR, Thrust

$

$

Not available

36

Simplicity LM-01585-70

GEAR & BEARING, High

$

$

Not available

37

Simplicity LM-09290-00

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

38

Simplicity LM-01585-21

CASE, Gear

$

$

Not available

39

Simplicity LM-09287-24

FITTING, Grease

$

$

Not available

40

Simplicity LM-01585-24

GASKET, Gear Case

$

$

Not available

41

Simplicity LM-01585-62

COLLAR, Thrust

$

$

Not available

42

Simplicity LM-01585-57

PINION, Reverse

$

$

Not available

43

Simplicity LM-01585-64

LINK, Shift, Reverse

$

$

Not available

44

Simplicity LM-09233-60

PIN, Cotter, 1/16 x 3/4

$

$

Not available

45

Simplicity LM-01585-34

SHAFT, Reverse

$

$

Not available

46

Simplicity LM-01531-24

RING, Retaining

$

$

Not available

47

Simplicity LM-01530-79

WASHER

$

$

Not available

48

Simplicity LM-09214-50

PIN, Roll, 5/32 x 1

$

$

Not available

49

Simplicity LM-01585-63

LINK, Shift, Low

$

$

Not available

50

Simplicity LM-01069-44

SHAFT, Gear

$

$

Not available

51

Simplicity LM-01585-42

GEAR & BEARING, Low

$

$

Not available

52

Simplicity LM-01210-83

SPINDLE, Pinion Differential

$

$

Not available

53

Simplicity LM-01585-79

PINION, Differential

$

$

Not available

54

Simplicity LM-01210-84

SPACER, Differential

$

$

Not available

55

Simplicity LM-01583-65

BUSHING, Differential

$

$

Not available

56

Simplicity LM-01583-64

PLATE, Differential

$

$

Not available

57

Simplicity LM-09219-72

SCREW, Hex, 3/8-16 x 2-1/2

$

$

Not available

58

Simplicity LM-01583-59

AXLE & BUSHING, R.H.

$

$

Not available

59

Simplicity LM-01583-52

AXLE, L.H.

$

$

Not available

60

Simplicity LM-01583-58

CUP, Thrust

$

$

Not available

61

Simplicity LM-01583-56

BUSHING, Drive Gear

$

$

Not available

62

Simplicity LM-01585-30

GEAR, Drive

$

$

Not available

63

Simplicity LM-01182-52

WASHER

$

$

Not available

64

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

65

Simplicity LM-01583-37

BUSHING

$

$

Not available

66

Simplicity LM-01583-57

COLLAR, Set

$

$

Not available

67

Simplicity LM-09247-64

PIN, Roll, 1/8 x 2/4

$

$

Not available

68

Simplicity LM-09287-21

SCREW, Set, 5/16-18 x 1/2

$

$

Not available
