RE 210 (7800952-02) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Console & Fuel Tank Group - 02 Series Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

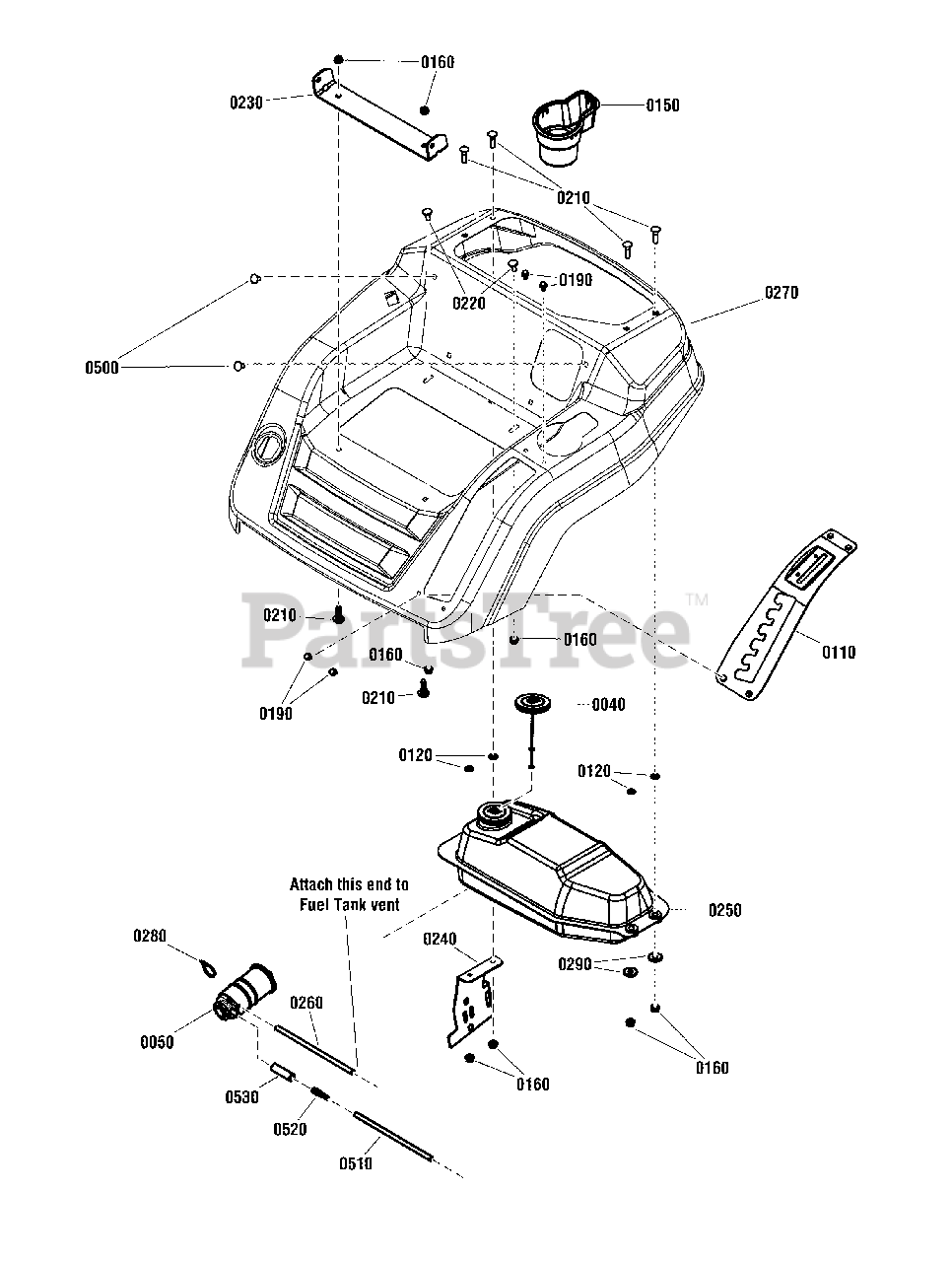

Console & Fuel Tank Group - 02 Series Parts Diagram

  • Title

0040

Snapper 7105682

ASSEMBLY, Fuel Cap, Non-Vented

Note: 7105682

$

$

Currently unavailable

0050

Snapper 709950

CANISTER, Carbon, 9.45L

Note: 80016634

$38.99

$

Usually ships in 2-12 days

0

0110

Snapper 7301262BMYP

PLATE, HOC Detent

Note: 7301262BM

$27.99

$

Usually ships in 2-12 days

0

0120

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

Note: 80002734

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 7105766YP

CUP HOLDER

Note: 7105766

$15.99

$

Usually ships in 2-12 days

0

0160

Snapper 690272MA

NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear

Note: 80002728

$

$

Not available

0190

Snapper 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Z

Note: 80005435

$4.49

$

In Stock, only 2 left!

0

0210

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

Note: 80004446

$4.49

$

In Stock, Qty 5

0

0220

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

Note: 80004072

$3.49

$

In Stock, Qty 12

0

0230

Snapper 706334

BRACKET, Seat Pivot, 12.41" W, 9.5" W .344" Sq Holes

Note: 7301392BM

$21.99

$

Usually ships in 2-12 days

0

0240

Snapper 709977

BRACKET, Canister Mounting, RER

Note: 80016669CJ

$31.99

$

Usually ships in 2-12 days

0

0250

Snapper 7106241YP

ASSEMBLY, Fuel Tank W/Cap, 1.96 Gal/7.4 L, RER

Note: 7106241

$216.99

$

Usually ships in 2-12 days

0

0260

Snapper 7106249YP

HOSE, Vapor, 5 MM ID X 9 MM OD X 7.75"
(Superseded to 7700552X12YP)

Note: 7106249

$5.49

$

In Stock, only 2 left!

0

0270

Snapper 7301427CYP

CONSOLE, Seat/Hydro Control, Orange

Note: 7301427D

$296.99

$

Usually ships in 2-12 days

0

0280

Snapper 7024649YP

WIRE TIE, 11", Black Nylon

Note: 7024649

$5.49

$

Usually ships in 2-12 days

0

0290

Snapper 703298

WASHER, 5/16

Note: 80003525

$4.49

$

Usually ships in 2-12 days

0

0500

Snapper 1705115SM

PLUG, Hole (for .344 Square Hole)

Note: 1705115

$4.49

$

In Stock, only 1 left!

0

0510

Snapper 709979

HOSE, Vapor, 5MM ID, 4.00 LG

Note: 80015753

$4.99

$

Usually ships in 2-12 days

0

0520

Snapper 709951

CONNECTOR, Barbed Fitting Reducer

Note: 80018566

$5.99

$

Usually ships in 2-12 days

0

0530

Snapper 709952

HOSE, Vapor, 10MM I.D.

Note: 80018567

$6.99

$

Usually ships in 2-12 days

0
