RE 210 (7800952-01) - Snapper 33" Rear-Engine Riding Mower, 15.5hp 33" Mower Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

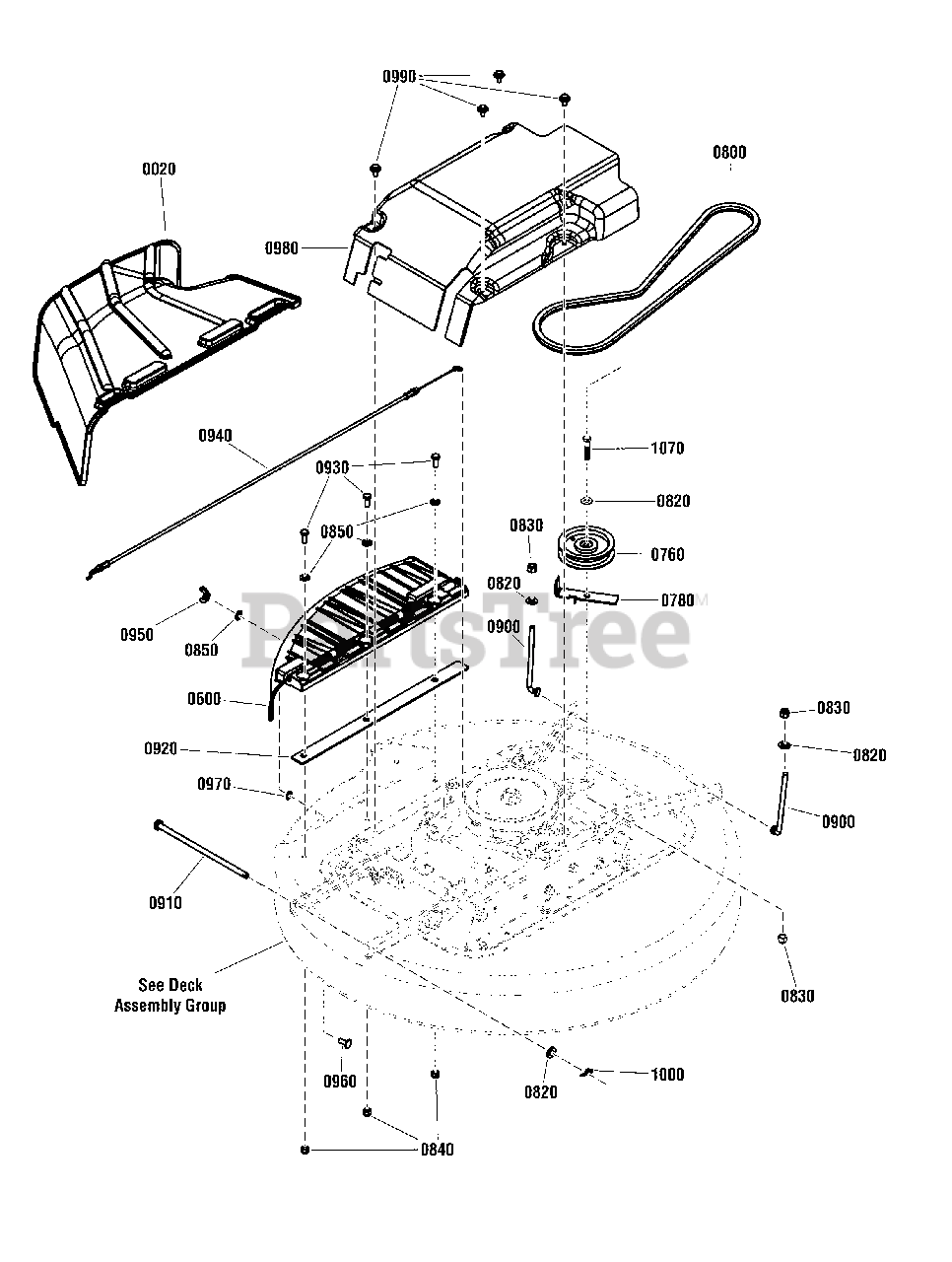

33" Mower Group Parts Diagram

  • Title

0020

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0

0600

Snapper 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

$91.99

$

Usually ships in 2-12 days

0

0600-10

Snapper 704005

NUT, 1/4, Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0600-20

Snapper 7103309YP

SPRING, Torsion, Rear Door

$5.49

$

In Stock, only 1 left!

0

0600-30

Snapper 7105346YP

HINGE, Chute, RER, 28/33"

$39.99

$

Usually ships in 2-12 days

0

0600-40

Snapper 7105689YP

ROD, Chute .25 OD, 17.62 Long

$7.49

$

Usually ships in 2-12 days

0

0600-50

Snapper 7105870YP

COVER, Mulching, RER, 33"

$56.99

$

Usually ships in 2-12 days

0

0760

Snapper 7029624YP

PULLEY, Idler, .375 ID, 4 OD

$35.99

$

In Stock, Qty 7

0

0780

Snapper 7032111YP

RESTRICTOR, Belt, 2.18 w/Lock

$6.99

$

In Stock, Qty 11

0

0800

Snapper 770082

BELT, 33" Deck, Hydro Drive (HAA 52.40" EL)

Note: (Was 7106334YP)

$46.99

$

In Stock, Qty 9

0

0820

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0

0830

Snapper 71046MA

NUT, Hex Nylock, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

0840

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0850

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0900

Snapper 7106057YP

ROD, Rear Deck Lift, 5.5 Long, 3/8-16 Threads
(Superseded to 706133)

$7.99

$

In Stock, only 1 left!

0

0910

Snapper 7105733YP

ROD, Front Deck Hangar, .38 Dia. X 9.16 Long

$10.99

$

Usually ships in 2-12 days

0

0920

Snapper 7301363BMYP

PLATE, 33" Deck Hinge Support

$18.99

$

Usually ships in 2-12 days

0

0930

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0940

Snapper 7105982YP

CABLE, Brake, 37.4 OPC

$23.99

$

Usually ships in 2-12 days

0

0950

Snapper 704320

NUT, 5/16-18 Wing (Nylon Ring) CL/ZC

$4.99

$

In Stock, Qty 12

0

0960

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0970

Snapper 703297

NUT, Push, 5/16

$3.99

$

In Stock, Qty 20+

0

0980

Snapper 7106072YP

COVER, DECK, 28"/33", RER

$

$

Not available

0990

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 9

0

1000

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0

1070

Snapper 703406

CAPSCREW, 3/8-16 X 1 1/2

$4.99

$

In Stock, only 1 left!

0
