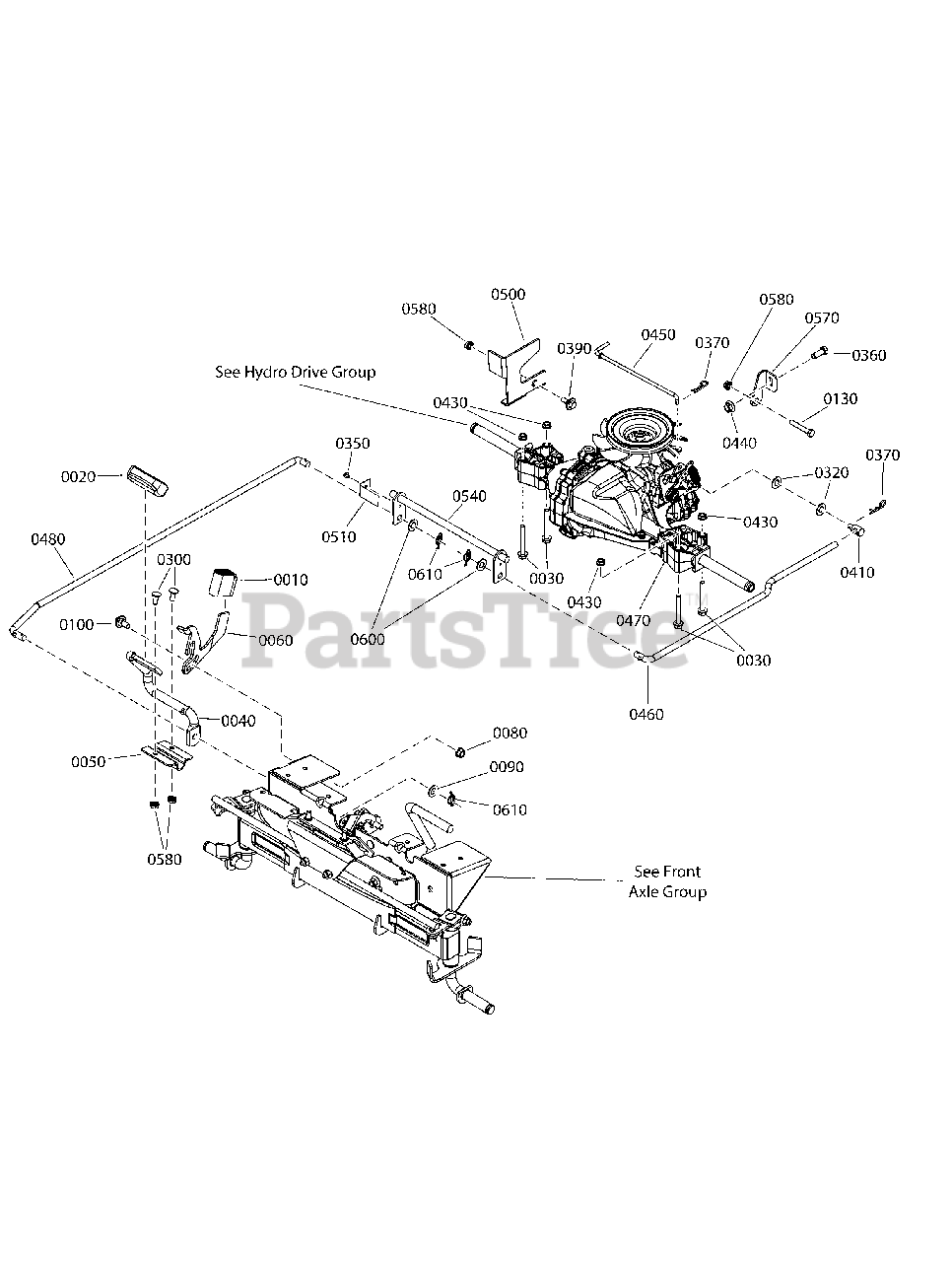

RE 210 (7800952-00) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Hydro Drive Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

Hydro Drive Group Parts Diagram

  • Title

0010

Snapper 1727259SM

PAD, Reverse Foot Pedal, Black Rubber

$8.49

$

Usually ships in 2-12 days

0

0020

Snapper 1721675SM

PAD, Forward Foot Pedal, Black Rubber

$

$

Not available

0030

Snapper 1960586SM

SCREW, 5/16-18 x 2-1/2, Hex Flange Whiz Lock, Black

$4.99

$

Usually ships in 2-12 days

0

0040

Snapper 7105754BMYP

PEDAL, FWD/REV, RER Hydro

$25.99

$

Usually ships in 2-12 days

0

0050

Snapper 7301357BMYP

BRACKET, FWD/REV Pivot

$14.99

$

Usually ships in 2-12 days

0

0060

Snapper 7301359BMYP

BRACKET, Reverse Pedal

$25.99

$

Usually ships in 2-12 days

0

0080

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 703183

WASHER, .922 X .065 X .065, Flat, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0100

Snapper 704206

BOLT, 3/8-16 X .925 DIA, Shoulder, GR2, Zinc/Clear

$7.99

$

In Stock, only 1 left!

0

0130

Snapper 703867

SCREW, 5/16-18 X 2.0, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0300

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0

0350

Snapper 7090981YP

SCREW, 10-32 x 1/4 Hex Washer Self-Tap, BZ
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

0360

Snapper 703407

SCREW, 3/8-16 X 1.0, Hex Head Cap, GR5, Zinc/Clear

$11.99

$

In Stock, Qty 7

0

0370

Snapper 1722460SM

HAIRPIN, Quick, .080 Wire, 1.19LG, Zinc/Clear
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0390

Snapper 009X67MA

BOLT, 5/16-18, .499 OD .246 LG Shoulder

$5.49

$

In Stock, only 3 left!

0

0410

Snapper 885076YP

ADJUSTING NUT, 7/16-14, .313 X .32 Shoulder, .156 Pin Hole, Zinc/Clear

$13.99

$

Usually ships in 2-12 days

0

0430

Snapper 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0440

Snapper 1960339SM

NUT, 3/8-16, Hex Flanged Center Lock, Black

$

$

Not available

0450

Snapper 7105648YP

ROD, Roll Release, Hydro, RER

$13.99

$

Usually ships in 2-12 days

0

0460

Snapper 7105664YP

ROD, Drive

$20.99

$

Usually ships in 2-12 days

0

0470

Snapper 7105749YP

TRANSMISSION, T2 Hydro (Hydro-Gear T2-BDBE-4X3C-15X1)

$672.99

$

Usually ships in 2-12 days

0

0480

Snapper 7105753YP

ROD, Drive, For/Rev, 30.91" Long

$27.99

$

Usually ships in 2-12 days

0

0500

Snapper 7301335BMYP

BRACKET, Brake Lever

$26.99

$

Usually ships in 2-12 days

0

0510

Snapper 7301354YP

BRACKET, Switch Actuator
(Superseded to 7301354BMYP)

$64.99

$

Usually ships in 2-12 days

0

0540

Snapper 7400331BMYP

WELDMENT, For/Rev Cross Over

$17.99

$

Usually ships in 2-12 days

0

0570

Snapper 7301310BMYP

BRACKET, Hydro Torque Strap, RER

$11.99

$

Usually ships in 2-12 days

0

0580

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0600

Snapper 703183

WASHER, .922 X .065 X .065, Flat, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0610

Snapper 7091594SM

COTTER PIN, Self Locking, For 1/2" Dia. Pin w/1/16" Hole, YZ

$2.99

$

In Stock, only 3 left!
