RE 210 (7800921-00) - Snapper 33" Rear-Engine Riding Mower, 14.5hp Main Frame Group Parts Diagram

33" Rear-Engine Riding Mower, 14.5hp

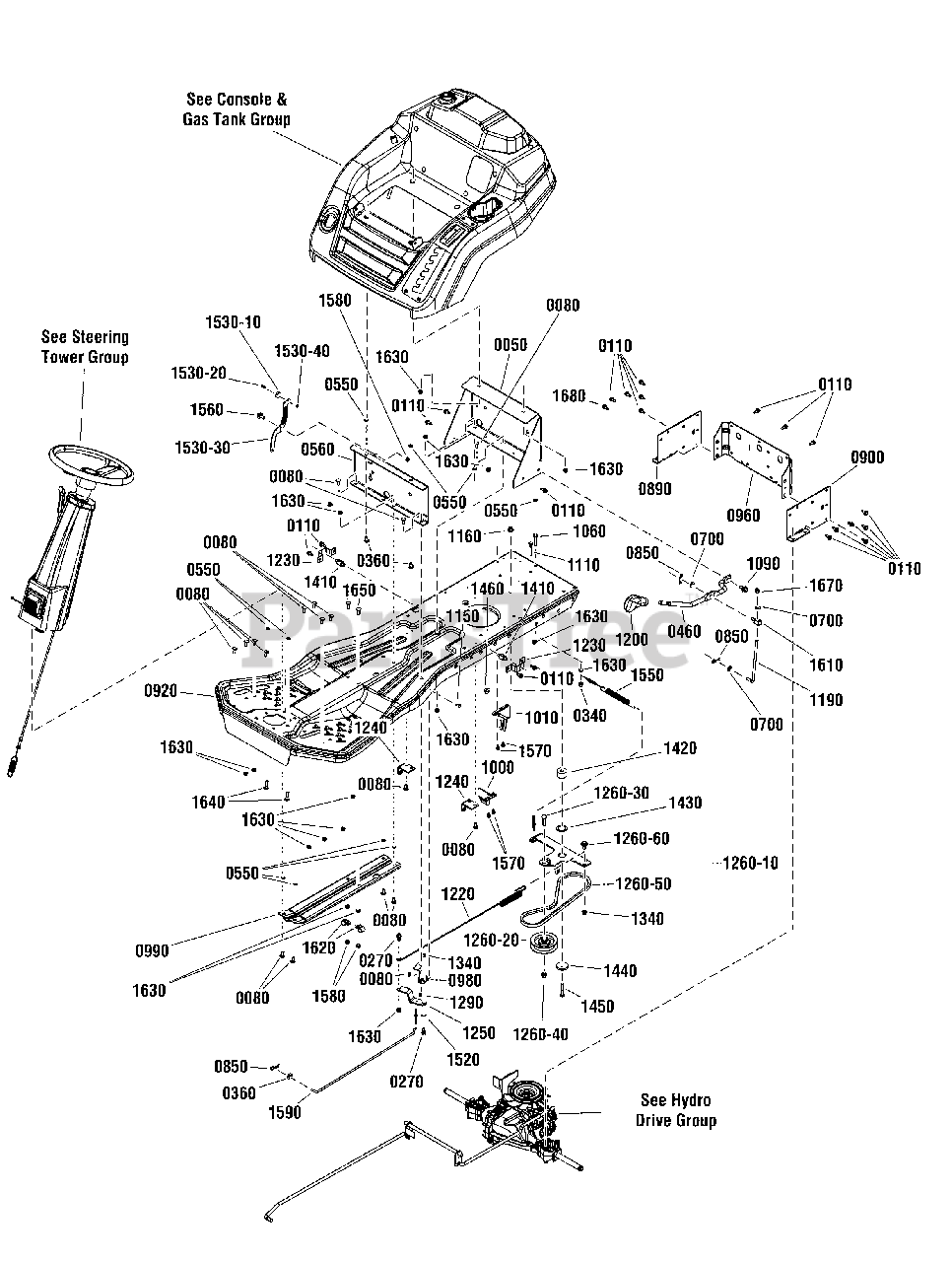

Main Frame Group Parts Diagram

  • Title

0050

Snapper 7301222BMYP

BRACKET, Console Support

$99.99

$

Usually ships in 2-12 days

0

0080

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0110

Snapper 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, Qty 5

0

0270

Snapper 703839

BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear

$5.49

$

In Stock, only 3 left!

0

0340

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0460

Snapper 7105822BMYP

ROD, Deck Lift, RER

$42.99

$

Usually ships in 2-12 days

0

0550

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0560

Snapper 7301330BMYP

BRACKET, Seat Hinge Support

$54.99

$

Usually ships in 2-12 days

0

0700

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0850

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0890

Snapper 7301306DYP

PLATE, Hydro Side, RH, RED

$35.99

$

Usually ships in 2-12 days

0

0900

Snapper 7301309DYP

PLATE, Hydro Side, LH, RED

$35.99

$

Usually ships in 2-12 days

0

0920

Snapper 7301248D

MAIN FRAME, Hydro, RER Red (Not a Part Sale Item)

$

$

Currently unavailable

0960

Snapper 7301297DYP

PLATE, Rear Hitch, Red

$68.99

$

Usually ships in 2-12 days

0

0980

Snapper 7301348BMYP

BRACKET, Brake/De-Clutch Pivot Anchor

$14.99

$

Usually ships in 2-12 days

0

0990

Snapper 7301349BMYP

BRACE, Frame, RER

$33.99

$

Usually ships in 2-12 days

0

1000

Snapper 7301353BMYP

BRACKET, RMO Switch

$11.99

$

Usually ships in 2-12 days

0

1010

Snapper 7301379BMYP

BRACKET, Hydro Park Brake Switch

$17.99

$

Usually ships in 2-12 days

0

1060

Snapper 703217

SCREW, 5/16-18 X1.50, Hex Head Cap, Full Thread, GR5, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

1090

Snapper 702315

BOLT, 3/8-16 X .88, .513 Dia. Shoulder, GR2, Zinc/Clear

$6.99

$

Usually ships in 2-12 days

0

1110

Snapper 721293

SCREW, 5/16-18 X .5 w/.75" Unthreaded Guide, YZ
(Superseded to 094384MA)

$4.49

$

Usually ships in 2-12 days

0

1150

Snapper 703841

BOLT, 1/4-20 X .625, Carriage, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

1160

Snapper 1960339SM

NUT-HEX FLANGE 3/8-16 MAC LK LARGE BLK

$

$

Not available

1190

Snapper 7105735YP

LINKAGE, 3/8 Deck Rod

$8.49

$

Usually ships in 2-12 days

0

1200

Snapper 7105767YP

KNOB, HOC/Speed Selector, 1/2 Hole

$10.99

$

Usually ships in 2-12 days

0

1220

Snapper 7105894YP

SPRING, 26.06" Long, 29 Coil, RER Hydro Brake

$24.99

$

Usually ships in 2-12 days

0

1230

Snapper 7301336BMYP

BRACKET, Rear Deck Lift

$6.49

$

Usually ships in 2-12 days

0

1240

Snapper 7301346BMYP

BRACKET, Forward/Reverse Pivot

$10.99

$

Usually ships in 2-12 days

0

1250

Snapper 706365

BRACKET, Brake/De-Clutch Pivot

$67.99

$

Usually ships in 2-12 days

0

1260-10

Snapper 7301341BMYP

BRACKET, Idler

$41.99

$

Usually ships in 2-12 days

0

1260-20

Snapper 1728000SM

PULLEY, Idler, 3-1/8 OD, 3/8 ID

$18.99

$

In Stock, Qty 20+

0

1260-30

Snapper 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

1260-40

Snapper 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

1260-50

Snapper 7105750YP

BELT, Hydro Drive, RER (38.35 EL, A Section)
(Superseded to 7106207YP)

$28.99

$

In Stock, only 3 left!

0

1260-60

Snapper 1732426SM

BOLT, Shoulder, 5/16-18 x .13/16, 1/2" Thread Length

$4.49

$

In Stock, only 1 left!

0

1290

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

1340

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0

1410

Snapper 7105736YP

SWIVEL, .390 Dia., Thru Hole

$5.99

$

Usually ships in 2-12 days

0

1420

Snapper 1729007SM

SPACER, .387 I.D. x 1.50 O.D. x 1.04 Long (Powdered Metal) Yellow

$11.99

$

In Stock, Qty 20+

0

1430

Snapper 7031079YP

WASHER, Thrust (1.37 ID, 1.625 OD)

$6.99

$

In Stock, Qty 20+

0

1440

Snapper 1960071SM

WASHER, 3/8 x 1-1/4 x 1/4, Black

$8.49

$

In Stock, only 1 left!

0

1450

Snapper 703589

CAPSCREW, 3/8-16 x 2, Hex Head, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

1460

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

1520

Snapper 704205

WASHER, .507 ID X .708 OD X .020 Thk, Shim Plain

$4.49

$

Usually ships in 2-12 days

0

1530-10

Snapper 7106025YP

ROLLER, .265 X 1.312 X .344

$3.49

$

Usually ships in 2-12 days

0

1530-20

Snapper 703960

BOLT, 10-24 X .750, Shoulder, GR8, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

1530-30

Snapper 7301367BMYP

PLATE, Roller OPC

$7.99

$

Usually ships in 2-12 days

0

1530-40

Snapper 7091267SM

NUT, 10-24, Hex Center Lock, BZ

$3.99

$

In Stock, Qty 6

0

1550

Snapper 7013885YP

SPRING, Clutch / Brake

$

$

Not available

1560

Snapper 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

1570

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

1580

Snapper 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

1590

Snapper 7105667YP

ROD, Clutch

$12.99

$

Usually ships in 2-12 days

0

1610

Snapper 7072495SM

SWIVEL, 3/8 W/ Thru Hole, YZ

$24.99

$

In Stock, only 1 left!

0

1620

Snapper 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

1630

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

1640

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

1650

Snapper 703483

BOLT, 5/16-18 X 1 Carriage, GR5, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

1670

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

1680

Snapper 1924856SM

SCREW, 5/16-18 x 1/2, Hex Washer Head Taptite, Blk
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
