RE 210 (7800921-00) - Snapper 33" Rear-Engine Riding Mower, 14.5hp 33" Deck Group Parts Diagram

33" Rear-Engine Riding Mower, 14.5hp

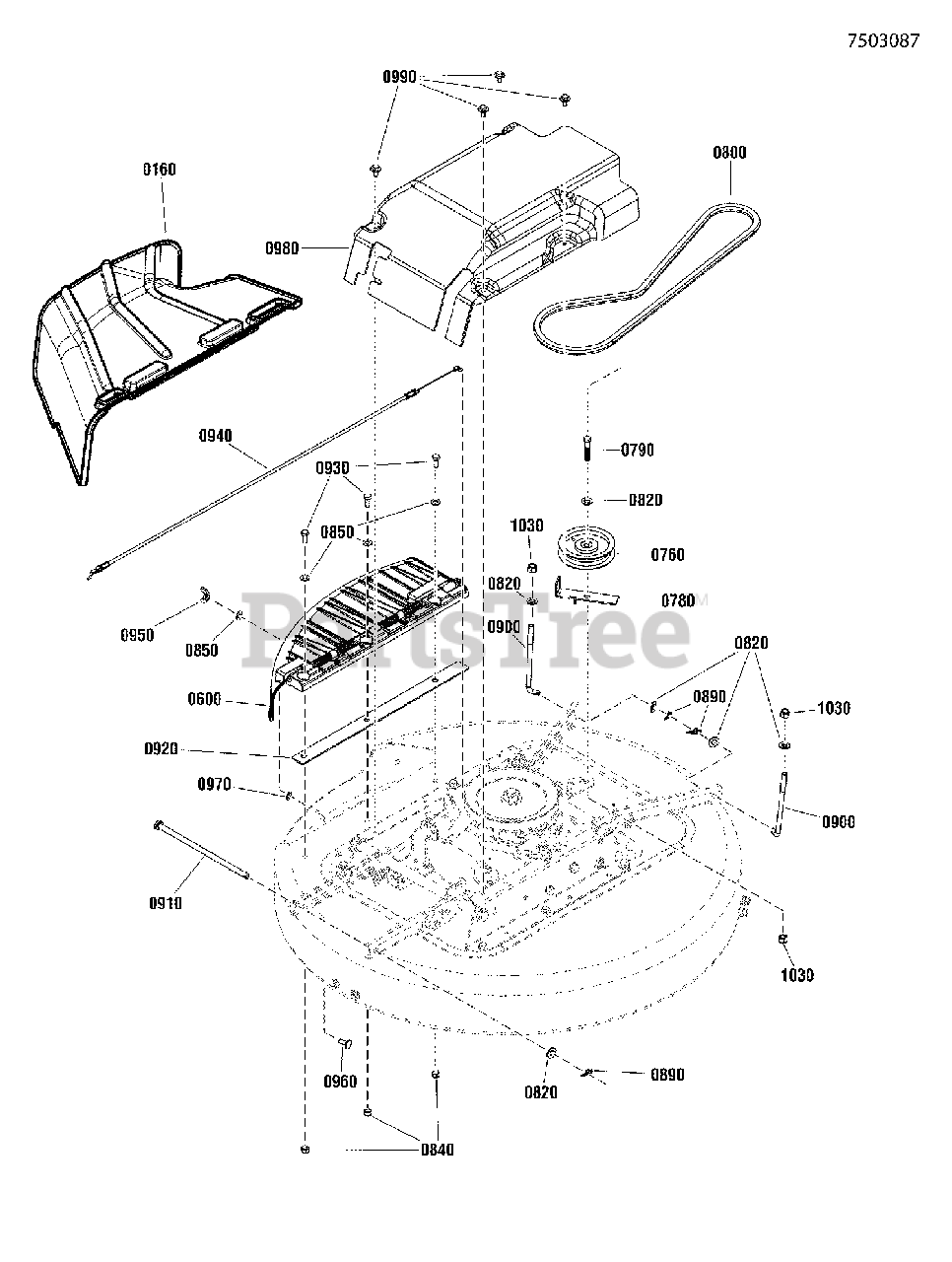

33" Deck Group Parts Diagram

  • Title

0160

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0

0600

Snapper 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

$91.99

$

Usually ships in 2-12 days

0

0600-10

Snapper 704005

NUT, 1/4", Push, Zinc/Clear (Not Shown)

$4.49

$

In Stock, Qty 20+

0

0600-20

Snapper 7103309YP

SPRING, Torsion, Rear Door (Not Shown)

$5.49

$

In Stock, only 1 left!

0

0600-30

Snapper 7105346YP

HINGE, Chute, RER, 28"/33" (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0600-40

Snapper 7105689YP

ROD, Chute .25 OD, 17.62" Long (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

0600-50

Snapper 7105870YP

COVER, Mulching, RER, 33" (Not Shown)

$56.99

$

Usually ships in 2-12 days

0

0760

Snapper 7018574SM

IDLER, Flat, 4 1/8

$38.99

$

In Stock, Qty 20+

0

0780

Snapper 7032111YP

RESTRICTOR, Belt, 2.18" w/Lock Tab

$6.99

$

In Stock, Qty 11

0

0790

Snapper 1921971SM

SCREW, 3/8-16 X 1.75, Hex Head Cap, GR5 Zinc/Clear
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

0800

Snapper 7106055YP

BELT, V, 52.14" EL, 1/2" W
(Superseded to 7106209YP)

$47.99

$

In Stock, only 1 left!

0

0820

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0840

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0850

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0890

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0

0900

Snapper 7105655YP

ROD, Rear Deck Lift, 5.5 Long, 3/8-16 Threads

$7.99

$

Usually ships in 2-12 days

0

0910

Snapper 7105733YP

ROD, Front Deck Hangar, .38 Dia. X 9.16 Long

$10.99

$

Usually ships in 2-12 days

0

0920

Snapper 7301363BMYP

PLATE, 33" Deck Hinge Support

$18.99

$

Usually ships in 2-12 days

0

0930

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 13

0

0940

Snapper 7105982YP

CABLE, Brake, 37.4 OPC

$23.99

$

Usually ships in 2-12 days

0

0950

Snapper 7024085YP

NUT, 5/16-18 Wing (Nylon Patch)
(Superseded to 704320)

$4.99

$

In Stock, Qty 12

0

0960

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0970

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0980

Snapper 7106061YP

COVER, Deck Spindle, 28"/33", RER
(Superseded to 706172)

$86.99

$

Usually ships in 2-12 days

0

0990

Snapper 703456

SCREW, 1/4-20 x 5/8 Hex Head Free Spin Washer Self-Tap, G5, ZC/CL
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

1030

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0
