RE 210 (7800921-00) - Snapper 33" Rear-Engine Riding Mower, 14.5hp 33" Deck Assembly Parts Diagram

33" Rear-Engine Riding Mower, 14.5hp

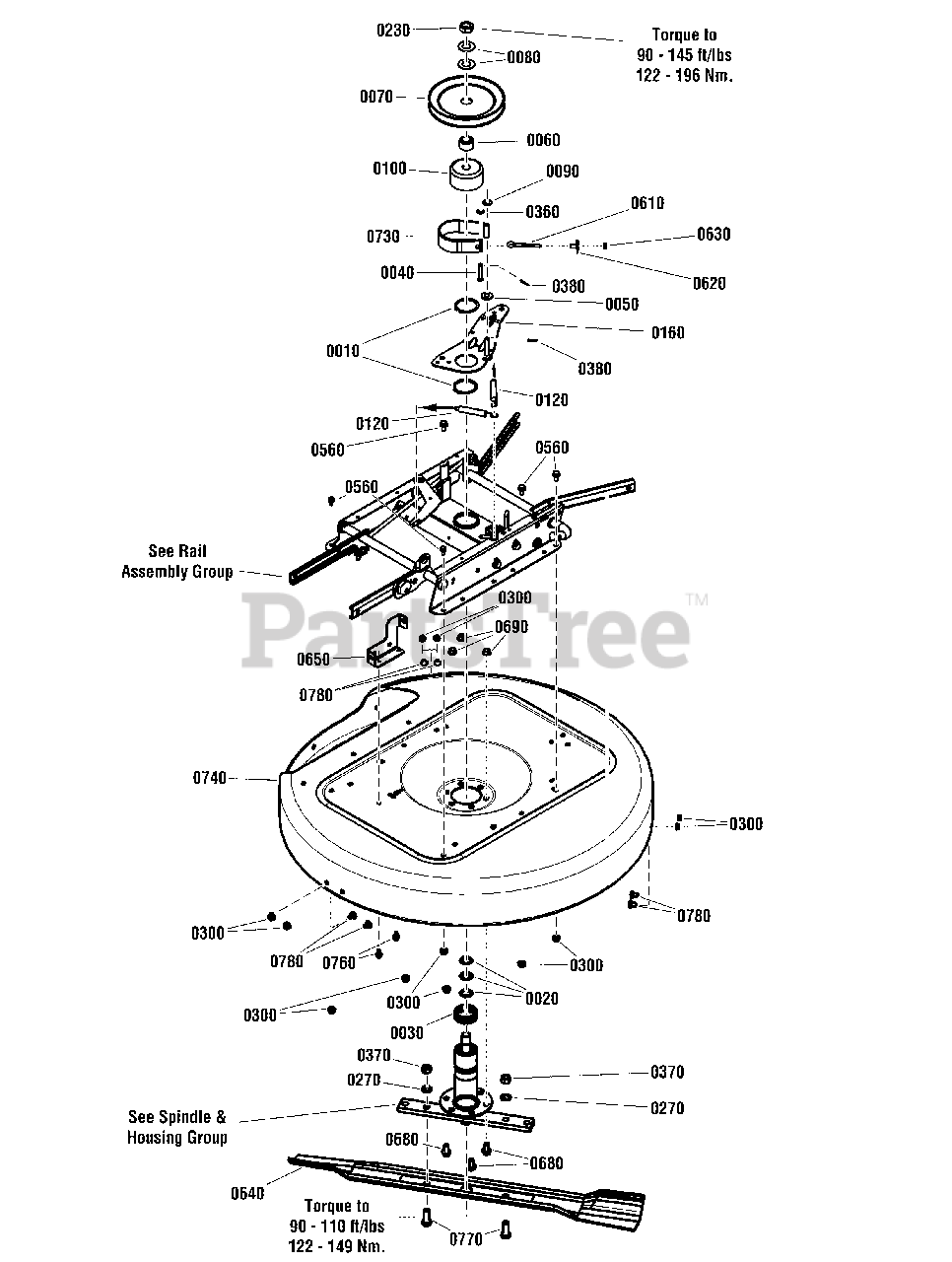

33" Deck Assembly Parts Diagram

  • Title

0010

Snapper 7010740YP

RING, 2 External Retaining

$5.49

$

In Stock, only 2 left!

0

0020

Snapper 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 7012670YP

RING, 2" ID x 3/4" High, Tolerance

$8.49

$

In Stock, Qty 6

0

0040

Snapper 7014304YP

PIN, 1/4 x 1-5/8 Clevis

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 7014314YP

SPACER, .31 I.D. x .39 O.D. x 1 Nylon

$4.99

$

In Stock, only 1 left!

0

0060

Snapper 7015290YP

HUB, Pulley, PM

$6.49

$

In Stock, Qty 10

0

0070

Snapper 7018781YP

PULLEY, Deck Spindle, 6.95 OD
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

0080

Snapper 7032027SM

WASHER, 49/64x1-1/2x.06, Flat

$4.49

$

In Stock, Qty 7

0

0090

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 18

0

0100

Snapper 7035378YP

DRUM, Brake Spindle (3" OD, 1.6" Tall)

$11.99

$

In Stock, only 2 left!

0

0120

Snapper 7036521YP

SPRING, Extension, 4 x 1/2 Diameter

$7.49

$

In Stock, Qty 5

0

0160

Snapper 7047787YP

WELDMENT, Idler Arm
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0

0230

Snapper 7074467SM

NUT, 3/4-16 Hex Jam, GR 8

$4.49

$

In Stock, Qty 10

0

0270

Snapper 7090509YP

WASHER, 1/2 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 10

0

0300

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0360

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0370

Snapper 7091939YP

NUT, 1/2-20 Hex, GR 5 ZP

$3.49

$

In Stock, Qty 20+

0

0380

Snapper 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0560

Snapper 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0610

Snapper 7014302YP

EYE-BOLT, 1/4-20 x 2-7/8 ZP

$4.99

$

In Stock, Qty 6

0

0620

Snapper 7014303YP

T-NUT, 1/4-20 (Bent End)

$15.99

$

Usually ships in 2-12 days

0

0630

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0640

Snapper 7034168YP

BLADE, 33" High Lift
(Superseded to 7034168BZYP)

$26.99

$

In Stock, only 3 left!

0

0650

Snapper 7301280BMYP

BRACKET, Blade Engagement Cable

$18.99

$

Usually ships in 2-12 days

0

0680

Snapper 703955

BOLT, 3/8-16X0.75, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0690

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0730

Snapper 7503086YP

ASSEMBLY, Brake Band, RER, 10.12 X 1.25"

$35.99

$

In Stock, only 1 left!

0

0740

Snapper 7061972YP

KIT, 33" Deck Replacement, Red, (Includes Decals)

$

$

Not available

0760

Snapper 703962

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0770

Snapper 7090491YP

SCREW, 1/2-20 x 1-1/4 Hex Head Cap, GR5

$4.99

$

Usually ships in 2-12 days

0

0780

Snapper 703798

BOLT, 5/16-18 X .50, Carriage, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0
