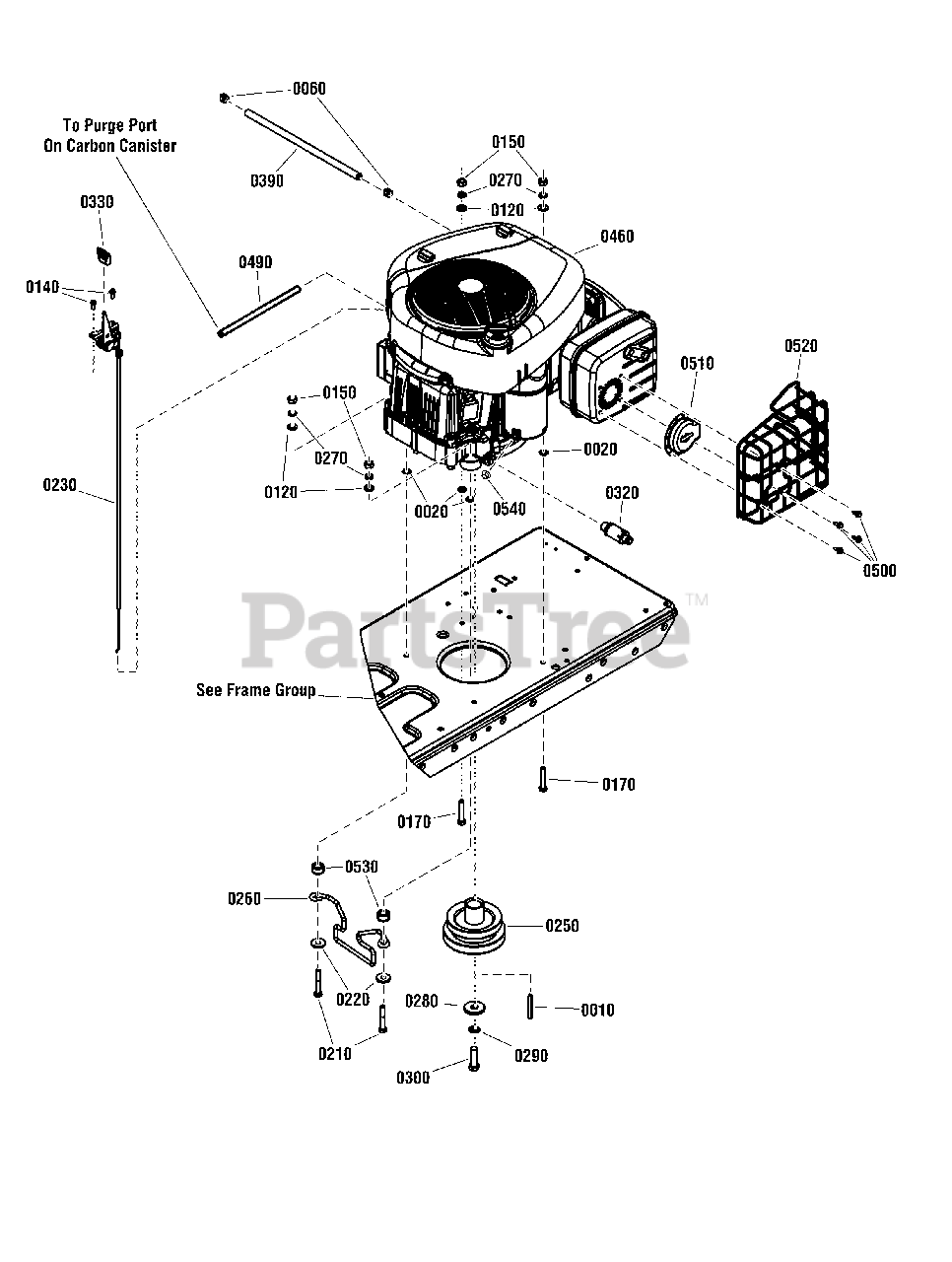

RE 210 (2691405-00) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 703890

KEY, 1/4 Square x 2 Long

$4.99

$

In Stock, Qty 7

0

0020

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0120

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0140

Snapper 704060

SCREW, 10-24 x 1/2 Hex Washer Self-Tap, Torx, ZC/CL

$3.49

$

In Stock, Qty 11

0

0150

Snapper 703465

NUT, 5/16-18, Hex, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 704288

CAPSCREW, Hex Head, 5/16-18 x 1 3/4

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 704322

SCREW, 5/16-18X2-1/4, Hex Head Washer, BK/ZC

$3.49

$

Usually ships in 2-12 days

0

0220

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0230

Snapper 7105872YP

ASSEMBLY, Throttle Control, 27.6 Long, 1.6 Throw

$25.99

$

Usually ships in 2-12 days

0

0250

Snapper 709947

PULLEY, Double Stack, 4.0" OD & 4.5" OD

$109.99

$

Usually ships in 2-12 days

0

0260

Snapper 7106336BMYP

GUIDE, Belt, 1/4 Wire, 1 X 4 ID, 3.30 Tall, 7.66 Mount

$17.99

$

Usually ships in 2-12 days

0

0270

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 704053

WASHER, .468 ID X 1.5 OD X .19 THK, Special, Zinc/Clear

$9.99

$

Usually ships in 2-12 days

0

0290

Snapper 704007

WASHER, 7/16, Split-Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 720205

BOLT, HEX, .43-20X1.50 Z-NYL
(Superseded to 01X140MA)

$5.49

$

In Stock, Qty 15

0

0320

Snapper 7027972SM

ASSEMBLY, Oil Drain Valve, 2.775 Long

Note: (Not on current models)

$24.99

$

In Stock, Qty 9

0

0330

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0390

Snapper 7200116YP

HOSE, Fuel, Low Perm, 1/4 ID X 14"

$8.99

$

In Stock, only 1 left!

0

0460

Snapper 31S777-0001-G1

* ENGINE, B&S 15.5, Mod. 31S777-0001-G1

Note: 31S777-0001-G1

$

$

Not available

0490

Snapper 7106041YP

HOSE, Vapor, 10 Long

$3.99

$

Usually ships in 2-12 days

0

0500

Snapper 690367

* SCREW, #8-18X.53, Tapping Washer HD, B&S

$3.99

$

Usually ships in 2-12 days

0

0510

Snapper 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

0520

Snapper 264347

* GUARD, Muffler
(Superseded to 264347YP)

$65.99

$

Usually ships in 2-12 days

0

0530

Snapper 703933

SPACER, .700 OD x .480 ID x .380 L, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0540

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 9

0
