RE 210 (2691405-00) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Console & Fuel Tank Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

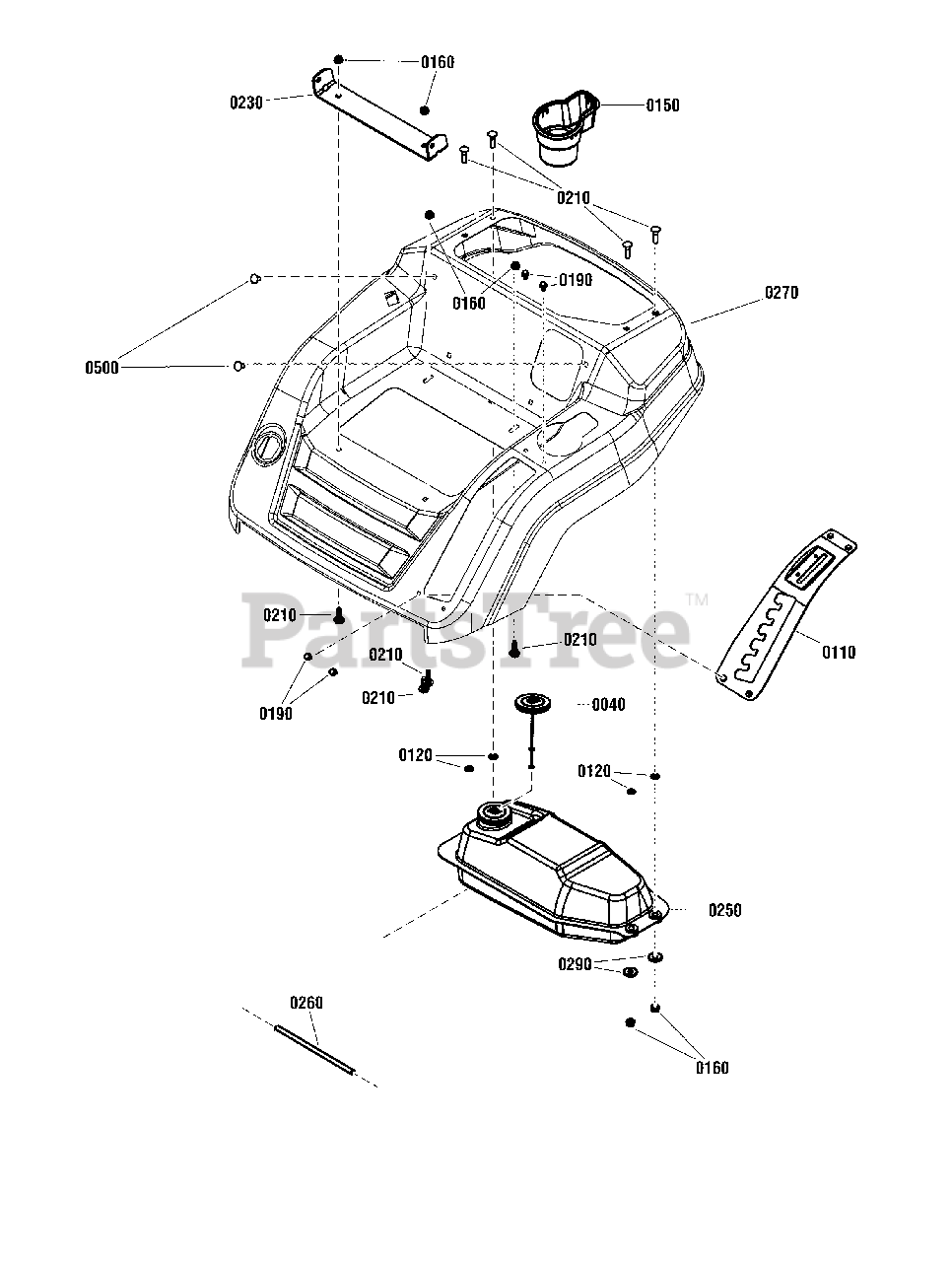

Console & Fuel Tank Group Parts Diagram

  • Title

0040

Snapper 7105682YP

ASSEMBLY, Fuel Cap, Non-Vented

$

$

Not available

0110

Snapper 7301262BMYP

PLATE, HOC Detent

$27.99

$

Usually ships in 2-12 days

0

0120

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 7105766YP

CUP HOLDER

$15.99

$

Usually ships in 2-12 days

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0190

Snapper 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Z

$4.49

$

In Stock, only 2 left!

0

0210

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0230

Snapper 706334

BRACKET, Seat Pivot, 12.41" W, 9.5" W .344" Sq Holes

$21.99

$

Usually ships in 2-12 days

0

0250

Snapper 7106241YP

ASSEMBLY, Fuel Tank W/Cap, 1.96 Gal/7.4 L, RER

$216.99

$

Usually ships in 2-12 days

0

0260

Snapper 7200141YP

HOSE, Vapor, (5MM IS x 9MM OD x 16 Long)

$12.99

$

Usually ships in 2-12 days

0

0270

Snapper 770607

CONSOLE, Seat/Hydro Control, RED

$336.99

$

Usually ships in 2-12 days

0

0290

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0500

Snapper 1705115SM

PLUG, Hole (for .344 Square Hole)

$4.49

$

In Stock, only 1 left!

0
