RE 200 (2691019-00) - Snapper 30" Rear-Engine Riding Mower, 13.5hp Wheels & Tires Group Parts Diagram

30" Rear-Engine Riding Mower, 13.5hp

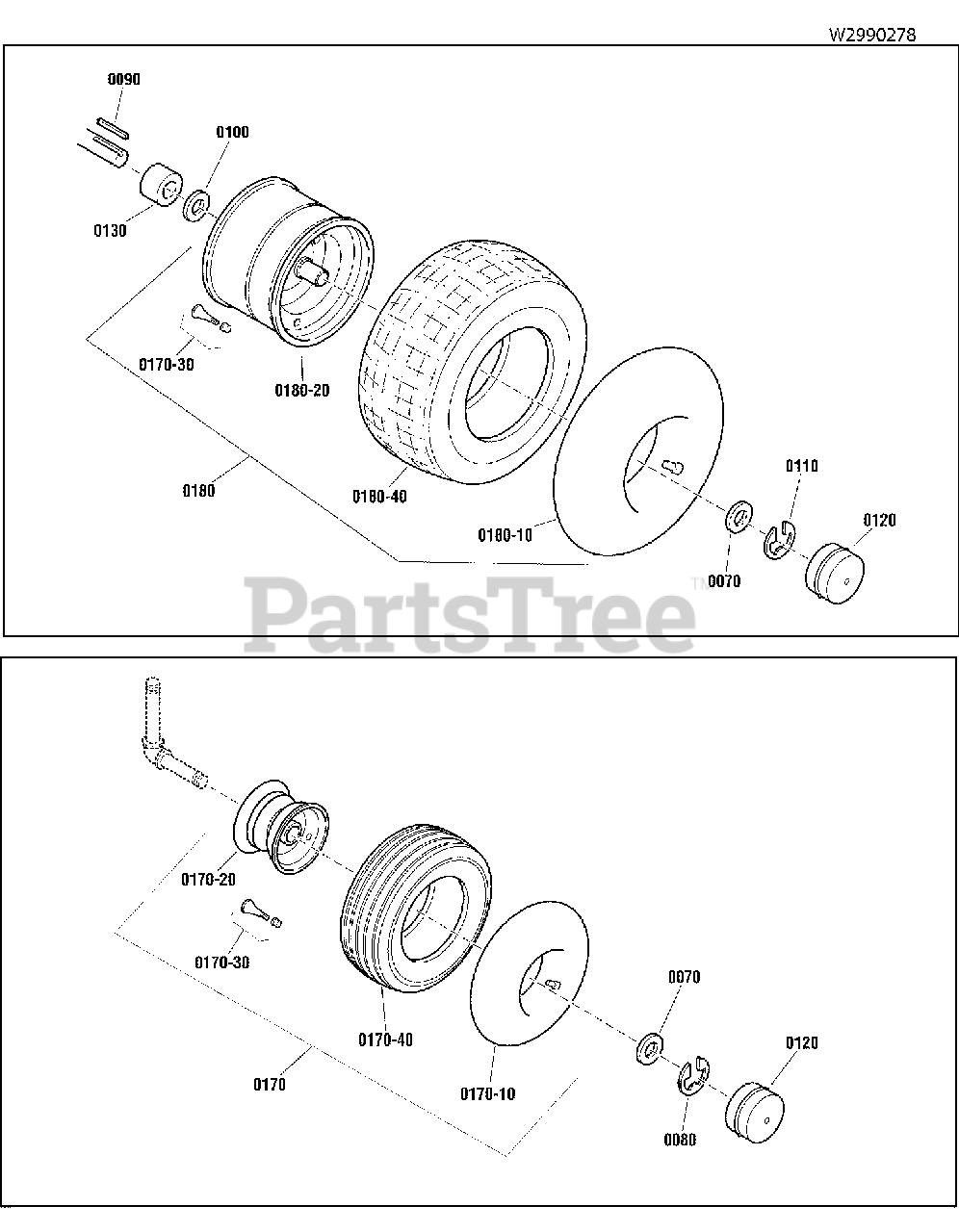

Wheels & Tires Group Parts Diagram

  • Title

0070

Snapper 1960160SM

WASHER, 3/4 ID x 1.6 OD x .05 Thk, Blk

$4.99

$

In Stock, Qty 11

0

0080

Snapper 1611710SM

RING-Klip, .750 Dia. Shaft, .062 Thk., Ext., Blk

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703889

KEY, 3/16X1-1/2, Square

$4.49

$

In Stock, only 3 left!

0

0100

Snapper 2860202SM

WASHER, 3/4 ID (0.76 ID, 1.62 OD, .12 Thk) Yellow

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 2827794SM

RING-E, #75 .750 Dia. Shaft, .050 Thk, Ext. Retaining, Yel

$3.49

$

In Stock, Qty 18

0

0120

Snapper 1722675SM

CAP, Hub, 1-1/2 ID Gray Poly 1.3 HI

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 1717451SM

SPACER, .77 ID X .105 WL X .55 Long, Split, Blk

$12.99

$

Usually ships in 2-12 days

0

0170

Snapper 1723170SM

ASSEMBLY, Tire & Wheel, 13x5.00-6, Gray

$117.99

$

In Stock, only 1 left!

0

0170-10

Snapper 1664090SM

TUBE, 4.10/3.50-6, Tire

$26.99

$

In Stock, only 3 left!

0

0170-20

Snapper 1723402SM

WHEEL, 3.25 Wide, 6.0 Dia., .753 ID Bearing

$39.99

$

In Stock, only 1 left!

0

0170-30

Snapper 7012234SM

VALVE STEM & CAP, Air .453 Dia 0.88 Long

$6.49

$

Usually ships in 2-12 days

0

0170-40

Snapper 1723401SM

TIRE, 13 x 5.00-6, Turf, 4 Ply Cheng SH, Front

$

$

Not available

0170-50

Snapper 1752171YP

BUSHING, Flanged, 3/4" ID x 1.380" OD, Front Wheels (Not Shown)

$11.99

$

In Stock, Qty 20+

0

0180

Snapper 1723171SM

ASSEMBLY, Tire & Wheel, 16X6.50-8, Gray

$111.99

$

Usually ships in 2-12 days

0

0180-10

Snapper 2164247SM

TUBE, 16X6.50-8.00, Tire

$40.99

$

Usually ships in 2-12 days

0

0180-20

Snapper 1723400SM

WHEEL, 5.375 Wide, 8.0 Dia., .760 ID Grooved Hub

$42.99

$

Usually ships in 2-12 days

0

0180-40

Snapper 1723399SM

TIRE, 16 X 6.50-8, Turf 4 Ply Cheng SH, Rear

$87.99

$

Usually ships in 2-12 days

0
