RE 200 (2691019-00) - Snapper 30" Rear-Engine Riding Mower, 13.5hp Front Column & Dash Group Parts Diagram

30" Rear-Engine Riding Mower, 13.5hp

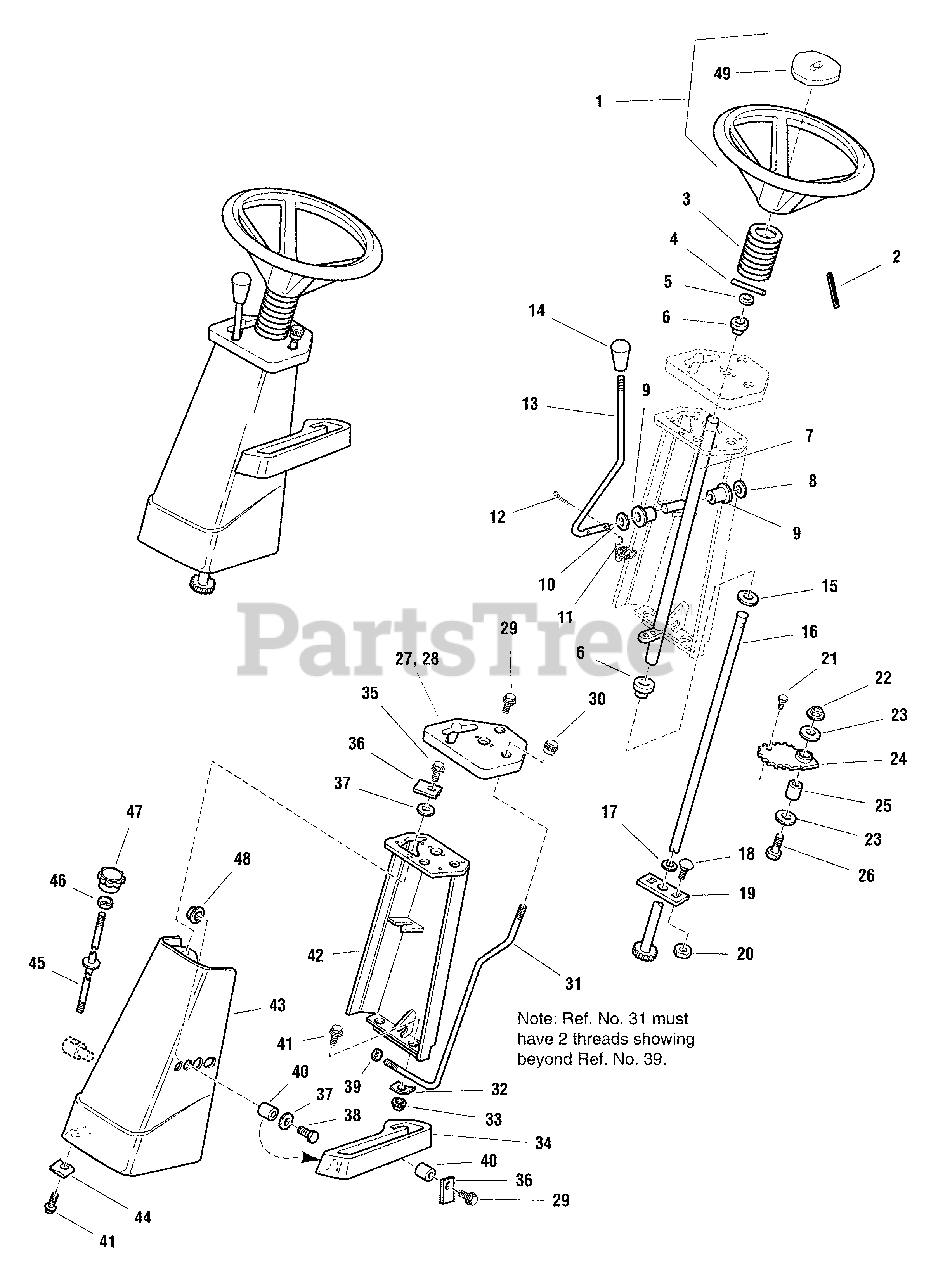

Front Column & Dash Group Parts Diagram

  • Title

1

Snapper 1713841SM

STEERING WHEEL ASSEMBLY (Includes Ref. No. 49)

$77.99

$

In Stock, only 1 left!

0

2

Snapper 1960540SM

ROLL PIN

$4.49

$

In Stock, Qty 11

0

3

Snapper 1678381SM

TUBE, Steering

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 2816001SM

PIN

$4.49

$

In Stock, Qty 11

0

5

Snapper 1960160SM

WASHER, 49/64

$4.99

$

In Stock, Qty 9

0

6

Snapper 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

7

Snapper 1709229SM

TUBE ASSEMBLY, Shift

$69.99

$

Usually ships in 2-12 days

0

8

Snapper 1960170SM

WASHER
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 1704428SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 1924361SM

WASHER, Plain, 17/32 x 1-1/4 x 7/64
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 1707424SM

SPRING, Torsion

$6.49

$

In Stock, only 1 left!

0

12

Snapper 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 1707375SM

ROD, Shift

$34.99

$

Usually ships in 2-12 days

0

14

Snapper 1713843SM

KNOB, Rod, Shift

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 1960114SM

WASHER, Plain, 11/32 x 1 x 1/8
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 1706014SM

SHAFT ASSEMBLY, Steering

$110.99

$

Usually ships in 2-12 days

0

17

Snapper 2173668SM

WASHER, Plain

$9.49

$

In Stock, only 2 left!

0

18

Snapper 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 1703508ASM

PLATE, Steering Mounting

$24.99

$

In Stock, Qty 6

0

20

Snapper 1928352SM

NUT, Hex, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

22

Snapper 1960339SM

NUT, Hex, Flange Lock, 3/8-16

$

$

Not available

23

Snapper 1924356SM

WASHER, 13/32 x 1-1/2 x 1/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

24

Snapper 1708426SM

GEAR, Steering

$50.99

$

In Stock, only 1 left!

0

25

Snapper 1666332SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

26

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 1714081SM

DASH, Hydro

$

$

Not available

28

Snapper 1714082SM

DASH, Gear

$21.99

$

Usually ships in 2-12 days

0

29

Snapper 1925592SM

CAPSCREW, Hex, Flange, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

30

Snapper 1713855SM

KNOB, Rod, Parking Brake

$12.99

$

Usually ships in 2-12 days

0

31

Snapper 1707057SM

ROD, Parking Brake

$22.99

$

Usually ships in 2-12 days

0

32

Snapper 1933988SM

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 1708965SM

QUADRANT, Lift

$36.99

$

In Stock, only 1 left!

0

35

Snapper 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

36

Snapper 1709075SM

CLAMP

$7.49

$

Usually ships in 2-12 days

0

37

Snapper 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

38

Snapper 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 1960608SM

NUT, Hex, Flange Centerlock, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 1678392SM

SPACER, 17/64 x 3/8 x 21/64
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

41

Snapper 1930591SM

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

42

Snapper 1708990ASM

SUPPORT, Steering

$79.99

$

Usually ships in 2-12 days

0

43

Snapper 1708267CSM

SHROUD, Front (Orange)

$136.99

$

Usually ships in 2-12 days

0

43

Snapper 1708267DSM

SHROUD, Front (Red)

$84.99

$

Usually ships in 2-12 days

0

44

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

45

Snapper 1708971SM

ROD, Lift Height

$13.99

$

Usually ships in 2-12 days

0

46

Snapper 1917421SM

NUT, Hex, Jam, 1/4-20
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

47

Snapper 1713857SM

KNOB, Rod, Lift Height

$23.99

$

Usually ships in 2-12 days

0

48

Snapper 1930641SM

NUT, Hex, Flange, Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

49

Snapper 1714097SM

CAP

$10.99

$

Usually ships in 2-12 days

0
