RE 1442 A - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

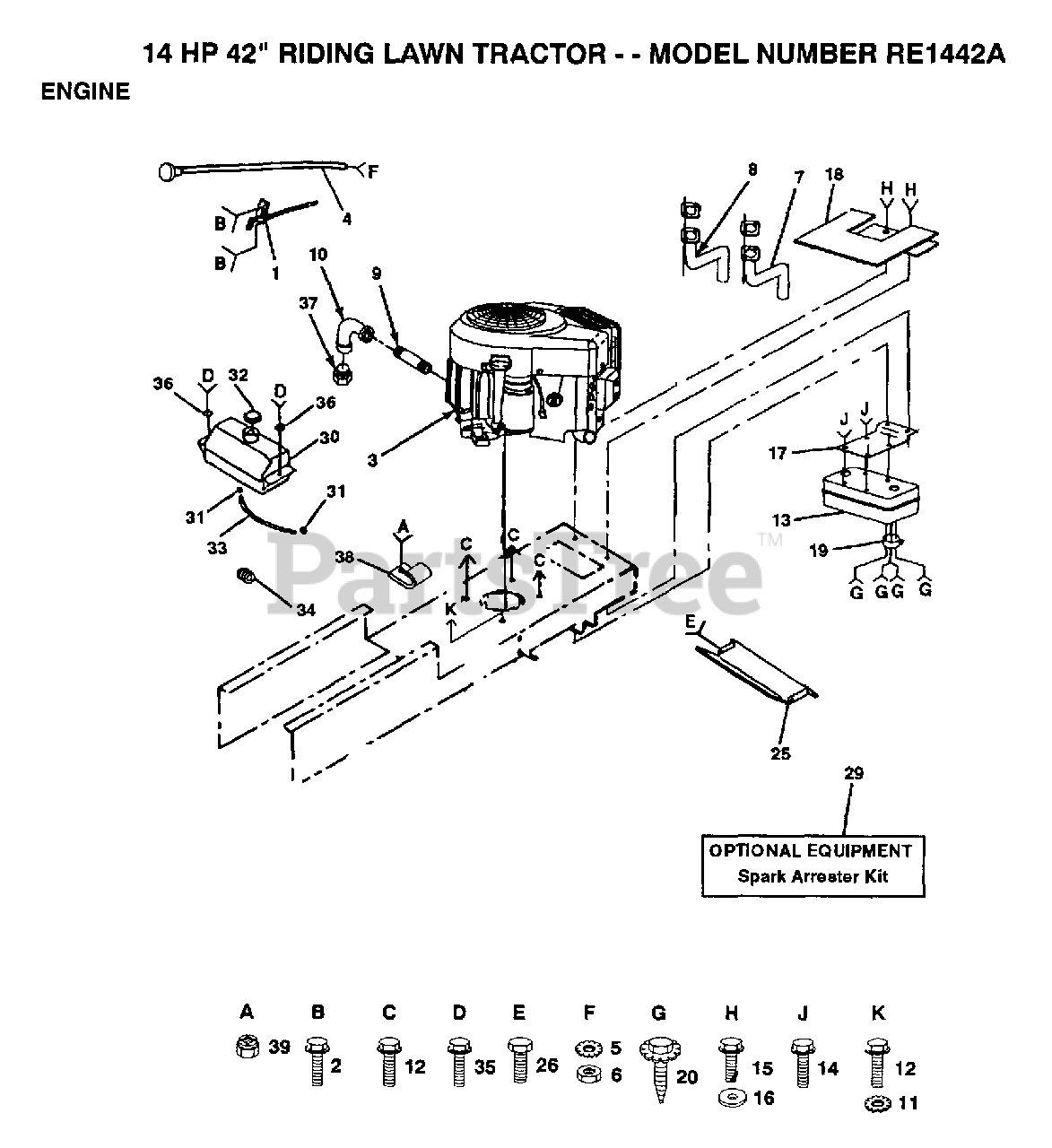

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132775

SUB= 132756

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

$

$

Not available

4

Electrolux/AYP 132777

SUB= 532132780

$

$

Not available

5

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 122434X

TUBE ASSY EXH LH
(Superseded to 532122434)

$

$

Not available

8

Electrolux/AYP 122435X

TUBE ASSY EXH RH
(Superseded to 532122435)

$75.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

13

$

$

Not available

14

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

16

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

18

Electrolux/AYP 128199

SUB= 145552

$

$

Not available

19

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

20

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

25

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

26

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

29

Electrolux/AYP 123110X

SPARK ARREST KIT
(Superseded to 532123110)

$

$

Not available

30

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

34

Murray 124028X

SUB= 532124028

$

$

Not available

35

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

37

REFER TO IMAGE

$

$

Not available

38

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

39

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
