RE 130 (7800951-00) - Snapper 33" Rear-Engine Riding Mower, 13.5hp 33" Deck Group Parts Diagram

33" Rear-Engine Riding Mower, 13.5hp

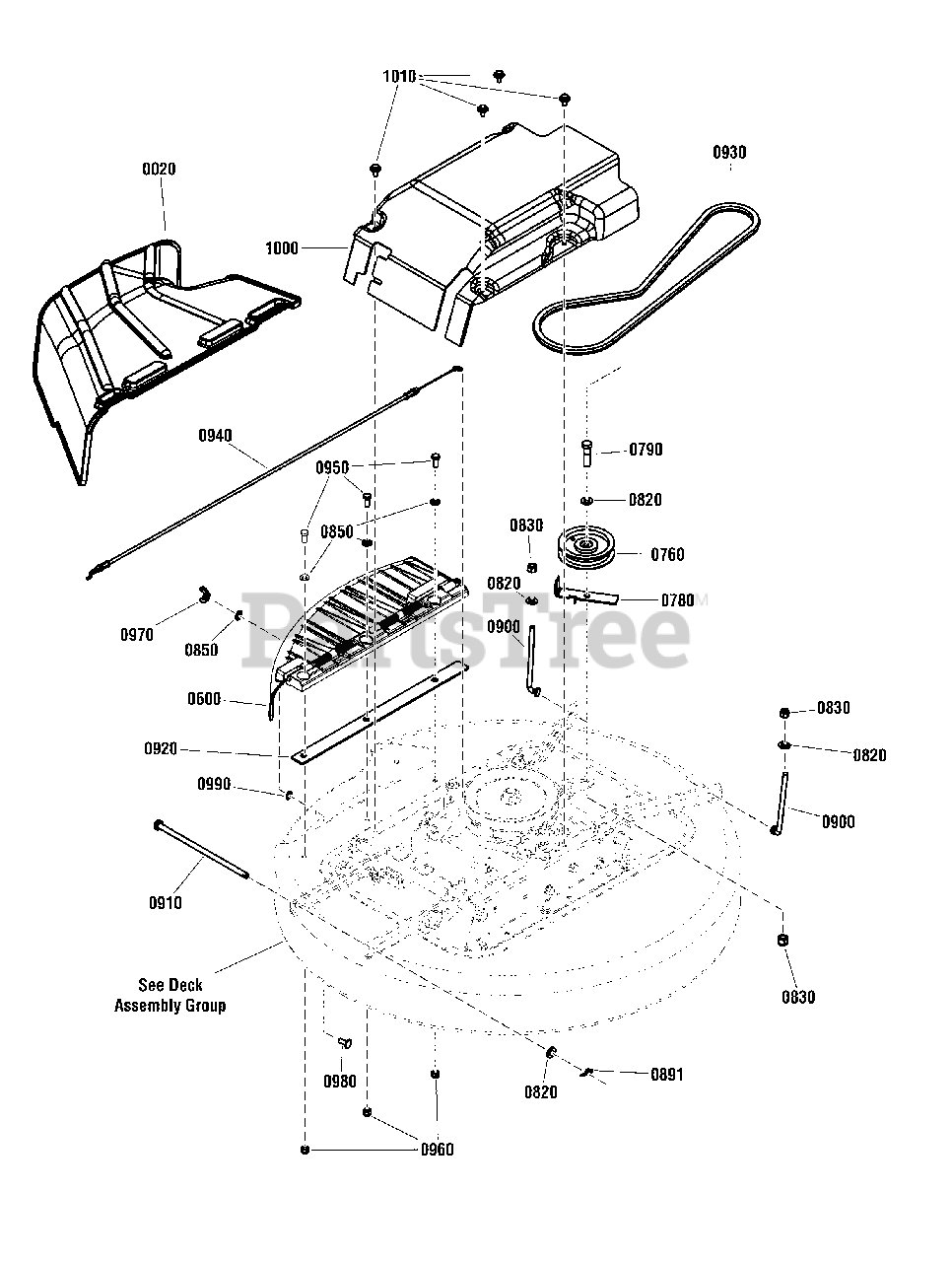

33" Deck Group Parts Diagram

  • Title

0020

Snapper 7105326YP

CHUTE, Side Discharge, 28"/33"

$125.99

$

In Stock, only 1 left!

0

0600

Snapper 7105871YP

ASSEMBLY, Mulching Cover, RER, 33"

$91.99

$

Usually ships in 2-12 days

0

0600-10

Snapper 704005

NUT, 1/4", Push, Zinc/Clear (Not Shown)

$4.49

$

In Stock, Qty 20+

0

0600-20

Snapper 7103309YP

SPRING, Torsion, Rear Door (Not Shown)

$5.49

$

In Stock, only 1 left!

0

0600-30

Snapper 7105346YP

HINGE, Chute, RER, 28/33 (Not Shown)

$39.99

$

Usually ships in 2-12 days

0

0600-40

Snapper 7105689YP

ROD, Chute .25 OD, 17.62 Long (Not Shown)

$7.49

$

Usually ships in 2-12 days

0

0600-50

Snapper 7105870YP

COVER, Mulching, RER, 33"

$56.99

$

Usually ships in 2-12 days

0

0760

Snapper 7029624YP

PULLEY, Idler, .375 ID, 4 OD

$35.99

$

In Stock, Qty 7

0

0780

Snapper 7032111YP

RESTRICTOR, Belt, 2.18" w/Lock Tab

$6.99

$

In Stock, Qty 11

0

0790

Snapper 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, only 1 left!

0

0820

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0830

Snapper 71046MA

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0850

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0891

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

$3.99

$

In Stock, Qty 14

0

0900

Snapper 7106057YP

ROD, Rear Deck Lift, 5.5 Long, 3/8-16 Threads
(Superseded to 706133)

$7.99

$

In Stock, only 1 left!

0

0910

Snapper 7105733YP

ROD, Front Deck Hangar, .38 Dia. X 9.16 Long

$10.99

$

Usually ships in 2-12 days

0

0920

Snapper 7301363BMYP

PLATE, 33" Deck Hinge Support

$18.99

$

Usually ships in 2-12 days

0

0930

Snapper 7106208YP

V-BELT, 33" Mechanical Drive (AA 71.75" EL)
(Superseded to 1760506YP)

$72.99

$

In Stock, only 1 left!

0

0940

Snapper 7105982YP

CABLE, Brake, 37.4 OPC

$23.99

$

Usually ships in 2-12 days

0

0950

Snapper 703408

SCREW, 5/16-18 x 7/8 Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0960

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0970

Snapper 704320

NUT, 5/16-18 Wing (Nylon Ring) CL/ZC

$4.99

$

In Stock, Qty 12

0

0980

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0990

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

1000

Snapper 7106072YP

COVER, Deck Spindle, 28"/33", RER

$

$

Not available

1010

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0
