RE 130 (7800932-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Mechanical Drive Assembly RER Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

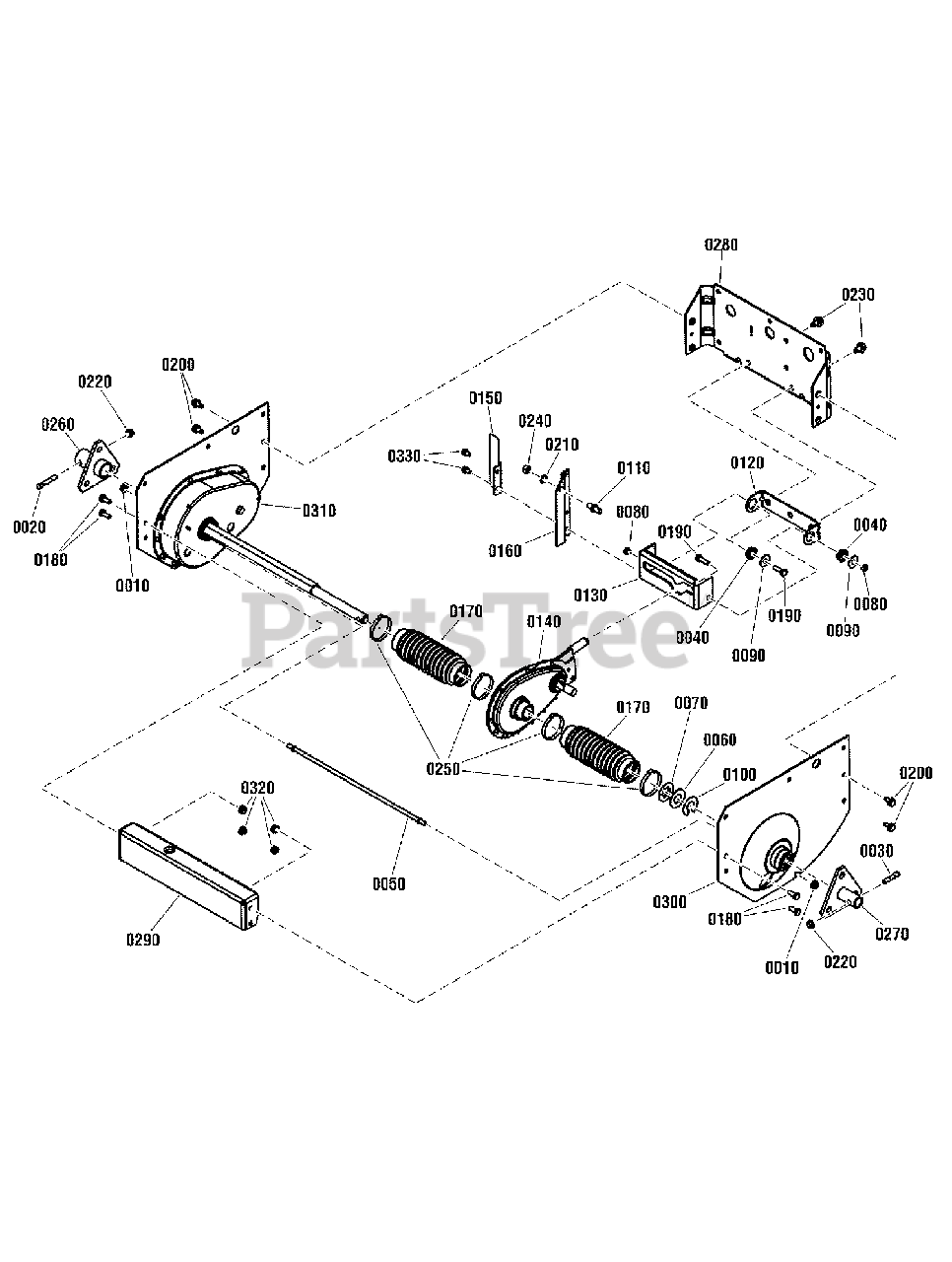

Mechanical Drive Assembly RER Parts Diagram

  • Title

0010

Snapper 703123

NUT, 5/16-24, Serated Flange, Zinc/Clear, GR5

$3.49

$

In Stock, Qty 20+

0

0020

Snapper 7011013YP

BOLT, 5/16-24 x 2 Tapered, Axle (Right Hand)

$6.49

$

In Stock, Qty 20+

0

0030

Snapper 7011035YP

BOLT, 5/16-24 x 1-5/8 Tapered, Axle (Left Hand)

$4.99

$

In Stock, Qty 20+

0

0040

Snapper 7011048YP

BEARING, Yoke

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 7011070YP

TIE ROD, (5/16-24 thread- both ends)

$20.99

$

In Stock, only 3 left!

0

0060

Snapper 7011071YP

WASHER, Thrust, (.765 ID, 1.625 OD)(Nylon)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 7011072YP

WASHER, Thrust, (Hex Flanged)

$5.99

$

In Stock, Qty 20+

0

0080

Snapper 703459

NUT, 5/16-24, Hex Crown Lock,GR C, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, only 3 left!

0

0100

Snapper 7012271YP

WASHER, Notched Shim, Nylon (Can make from 7011071)
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 7015464YP

STUD, Clutch Link (3/8-24 thread)

$7.49

$

In Stock, only 1 left!

0

0120

Snapper 7033291YP

COLLAR, Yoke

$56.99

$

Usually ships in 2-12 days

0

0130

Snapper 7046162YP

YOKE
(Superseded to 7046162BMYP)

$22.99

$

In Stock, only 2 left!

0

0140

Snapper 7052683YP

ASSEMBLY, Primary Chain Case (See Primary Chaincase Assembly Group)

$530.99

$

In Stock, only 1 left!

0

0150

Snapper 7059068YP

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$59.99

$

In Stock, only 1 left!

0

0160

Snapper 7073733YP

ARM, YOKE

$9.49

$

Usually ships in 2-12 days

0

0170

Snapper 7075115YP

BOOT, Rear Axle, Thick Flange

$10.99

$

In Stock, Qty 20+

0

0180

Snapper 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0190

Snapper 703301

SCREW, 5/16-24 x 1 Hex Head Cap, GR 5, BZ

$3.99

$

In Stock, only 2 left!

0

0200

Snapper 703949

SCREW, 5/16-18 x 5/8 Hex Washer Self-Tap, BP

$3.99

$

In Stock, Qty 5

0

0210

Snapper 703930

WASHER, 3/8 Internal Tooth Lock, BZ

$4.49

$

In Stock, only 1 left!

0

0220

Snapper 704279

NUT, 5/16-24 Hex Flange Lock, BZ

$3.49

$

In Stock, only 4 left!

0

0230

Snapper 7091198SM

SCREW, 3/8-16 x 5/8 Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 703895

NUT, 3/8-24, Hex, Grade 5, YZ

$4.49

$

In Stock, only 2 left!

0

0250

Snapper 7105184YP

CLAMP, 2" ID, Oetiker

$5.99

$

In Stock, Qty 12

0

0260

Snapper 7040433YP

HUB, Rear Wheel, 3 Hole 1.25" ID, RH

$37.99

$

In Stock, Qty 14

0

0270

Snapper 7040434YP

HUB, Rear Wheel, 3 Hole 3/4" ID, LH

$

$

Not available

0280

Snapper 7301297YP

PLATE, Rear Hitch

$

$

Currently unavailable

0290

Snapper 7301325YP

BRACKET, Cross Brace

$35.99

$

Usually ships in 2-12 days

0

0300

Snapper 7503036YP

ASSEMBLY, LH Fender, RER-RE

$284.99

$

Usually ships in 2-12 days

0

0300-20

Snapper 7301302YP

FENDER, 1.625" ID Hole, LH, RER-RE

$

$

Not available

0300-30

Snapper 7074182YP

BEARING, 3/4" ID, DX (Not Shown)

$5.99

$

In Stock, Qty 9

0

0300-40

Snapper 7052827YP

BEARING, AXLE, 3/4" (Includes 7074182, 7074500, & 7075848) (Not Shown)

$121.99

$

In Stock, Qty 5

0

0300-50

Snapper 7074500YP

SEAL, .750X1.25X.25, Dust / Grease (Not Shown)

$

$

Not available

0300-60

Snapper 7075848YP

FITTING, Lube, 45 Degree, 3/16 w/Hex (long shank) (Not Shown)

$6.49

$

In Stock, only 1 left!

0

0310

Snapper 7503037YP

ASSEMBLY, Differential Case, 4 Pinion, RER-RE
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0

0320

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0330

Snapper B4300GS

SCREW, 1/4-20X.500, Hex HD, Self-Tap, Zinc/Clear
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0
