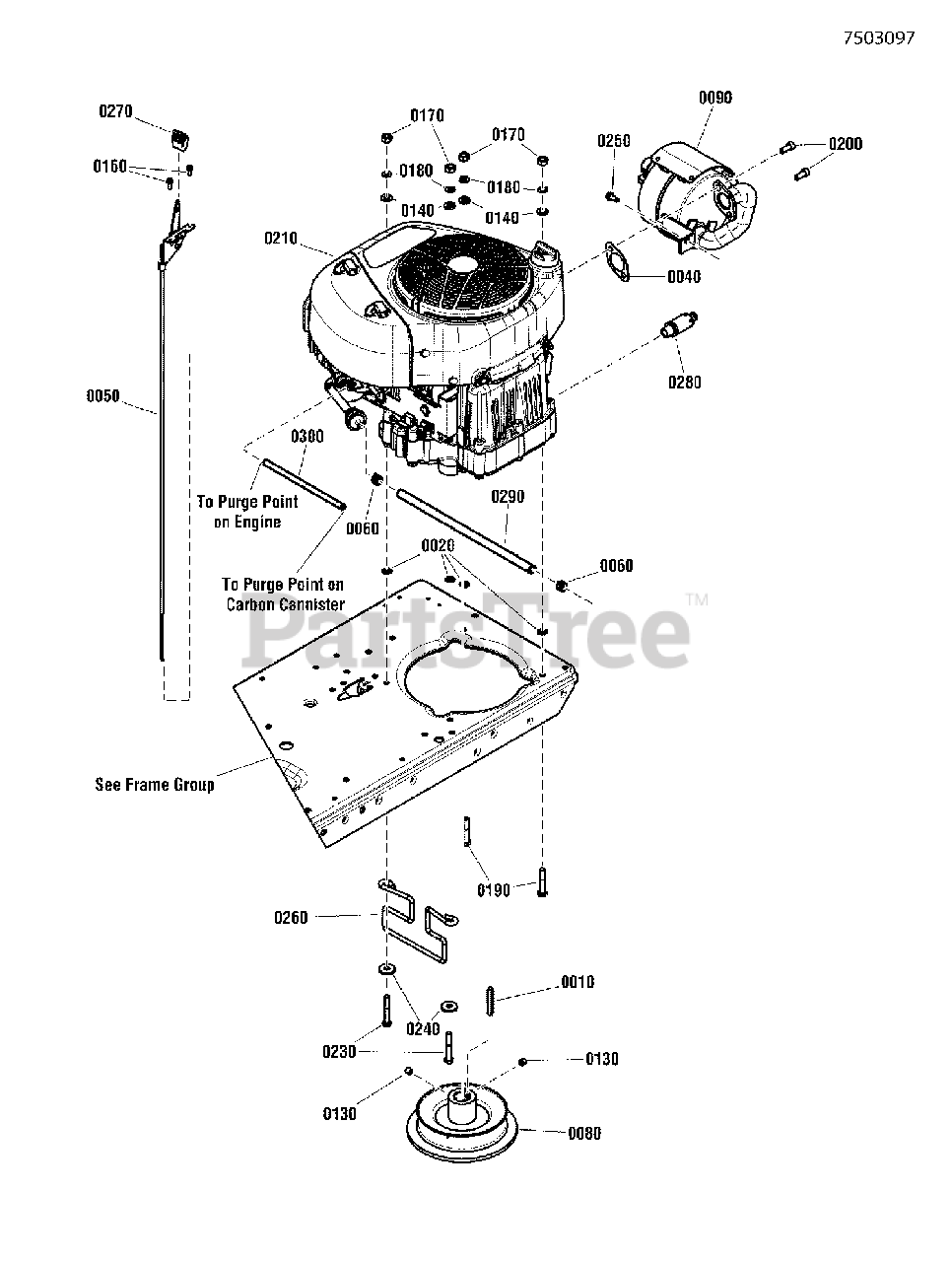

RE 130 (7800932-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Engine Group Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 7010210SM

KEY, 1/4X2, Square
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

0020

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7015352SM

GASKET, Exhaust

$5.49

$

In Stock, Qty 8

0

0050

Snapper 7105917YP

ASSEMBLY, Throttle Control, 11.5 HP, 23.26" + 1.6" Travel

$28.99

$

Usually ships in 2-12 days

0

0060

Snapper 7029900SM

CLAMP, .490 X .31, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 7074187YP

DISC, Steel Drive, 5.15" OD Pulley

$155.99

$

In Stock, only 4 left!

0

0090

Snapper 7074453YP

MUFFLER, W/Heat Shield

$109.99

$

In Stock, Qty 7

0

0130

Snapper 7090132YP

SCREW, 3/8-16 x 3/8" Hex Recess Set

$3.49

$

In Stock, Qty 5

0

0140

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0160

Snapper 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx), Zinc/Clear
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

0170

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0190

Snapper 7091513YP

SCREW, 5/16-24 X 1.75, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 14

0

0200

Snapper 7091738SM

SCREW, 5/16-18 X 3/4, Allen Socket Head, GR8 BZ

$4.99

$

In Stock, Qty 14

0

0210

Snapper 219807-0001-G5

* ENGINE, B&S, 12.5HP Powerbuilt, Model 219807-0001-G5

$

$

Currently unavailable

0230

Snapper 704056

SCREW, 5/16-24 X 2", Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0240

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0250

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0260

Snapper 7105173BMYP

GUIDE, Belt, 1/4" Wire, 1.45" X 5" ID, 3.72" Tall, 5.74" Mount

$11.99

$

In Stock, only 1 left!

0

0270

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0280

Snapper 7027972SM

ASSEMBLY, Oil Valve

$24.99

$

In Stock, Qty 9

0

0290

Snapper 7200116YP

HOSE, 1/4" ID X 14", Fuel

$8.99

$

In Stock, only 1 left!

0

0300

Snapper 7106046YP

HOSE, Vapor - 18" L, 5 MM ID

$7.99

$

Usually ships in 2-12 days

0
