RE 12R38 A - Electrolux/AYP Lawn Tractor SEAT Parts Diagram

Lawn Tractor

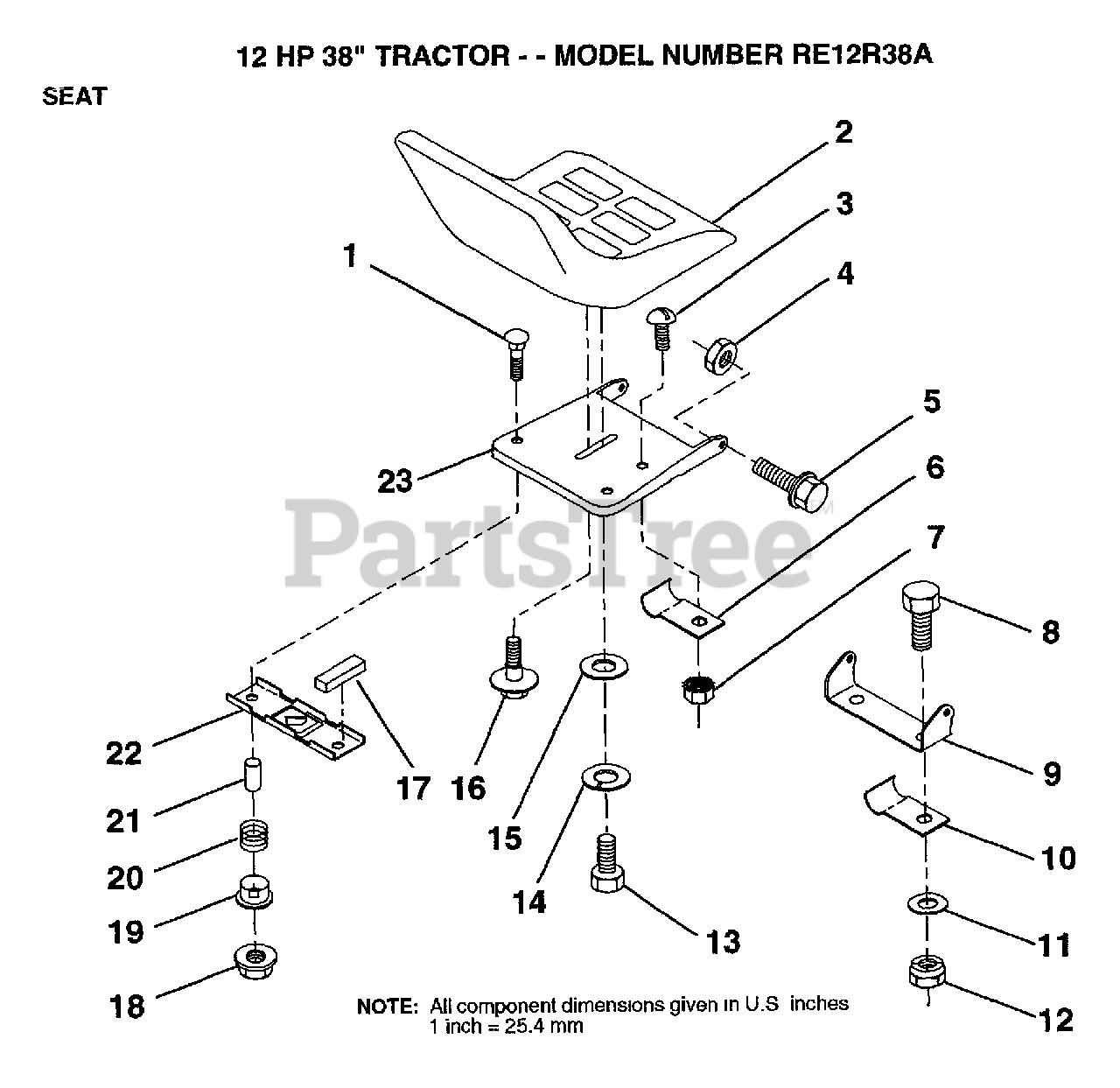

SEAT Parts Diagram

  • Title

1

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

2

127422x

SUB= 140119

$

$

Not available

3

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

4

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

5

105529x

Bolt Shoulder 5/16-18 Unc

$

$

Not available

6

4171r

CLIP T

$

$

Not available

7

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

9

126656x

SUB= 140551

$

$

Not available

10

126471x

CLIP,INSULATOR

$

$

Not available

11

Electrolux/AYP 19133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74780814

BOLT
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

16

127018x

BOLT,SHOULDER

$

$

Not available

17

121251x

$

$

Not available

18

123976x

NUT.LOCK.1/4.LGE.FLG.GR.5

$

$

Not available

19

121248x

BUSHING

$

$

Not available

20

121250x

SPRING

$

$

Not available

21

121249x

SPACER SPLIT

$

$

Not available

22

121246x

BRKT SWITCH

$

$

Not available

23

Electrolux/AYP 131451

SUB= 155925

$

$

Not available
