RE 12R38 A - Electrolux/AYP Lawn Tractor MOWER LIFT LEVER Parts Diagram

Lawn Tractor

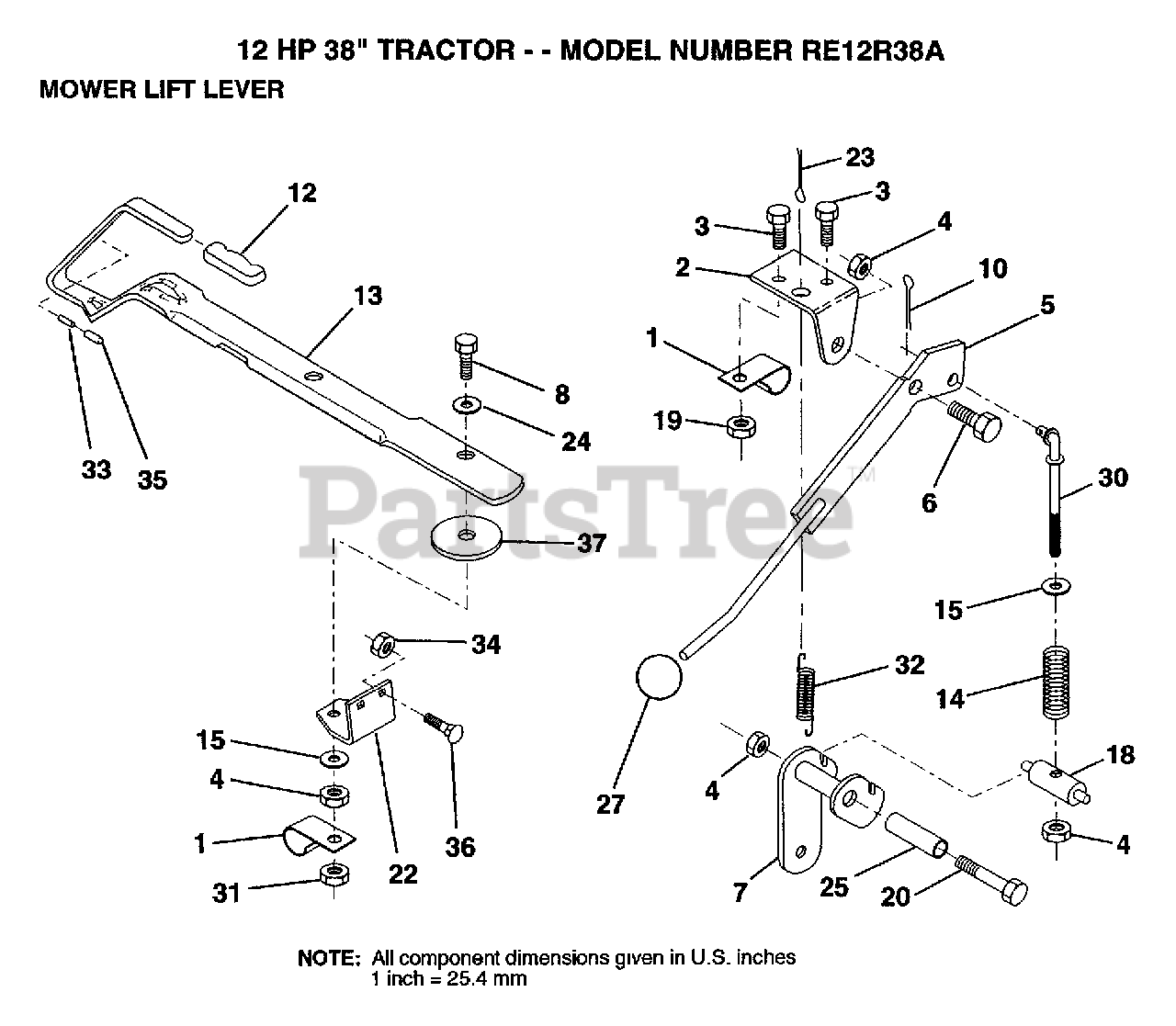

MOWER LIFT LEVER Parts Diagram

  • Title
1

126470x

CLIP,INSULATOR

$

$

Not available

2

122018x

BRKT CLUTCH

$

$

Not available

3

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 132552

CLUTCH LEVER AS
(Superseded to 532132552)

$

$

Not available

6

106451x

BOLT, SHOULDER LT

$

$

Not available

7

Electrolux/AYP 135110

MWR CLUT ARM ASM

$

$

Not available

8

Electrolux/AYP 74930624

BOLT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 132929

LIFT LEVER HANDLE
(Superseded to 582948401)

$6.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 133761

LIFT HANDLE ASM

$

$

Not available

14

Electrolux/AYP 133939

COMP CLUTCH SPRNG
(Superseded to 532133939)

$

$

Not available

15

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 135107

TRUNNION
(Superseded to 532135107)

$

$

Not available

19

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

20

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 132561

LIFT LEVER BRKT
(Superseded to 532132561)

$

$

Not available

23

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

24

7672j

$

$

Not available

25

121933x

$

$

Not available

27

121466x

KNOB

$

$

Not available

30

Electrolux/AYP 135039

ROD TENSION CLUTC
(Superseded to 532135039)

$

$

Not available

31

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 133435

SPRING EXT
(Superseded to 532133435)

$

$

Not available

33

407h

ROLL PIN

$

$

Not available

34

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 133603

VINYL CAP RED
(Superseded to 532133603)

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available
