RE 12R38 A - Electrolux/AYP Lawn Tractor FENDER/CHASSIS Parts Diagram

Lawn Tractor

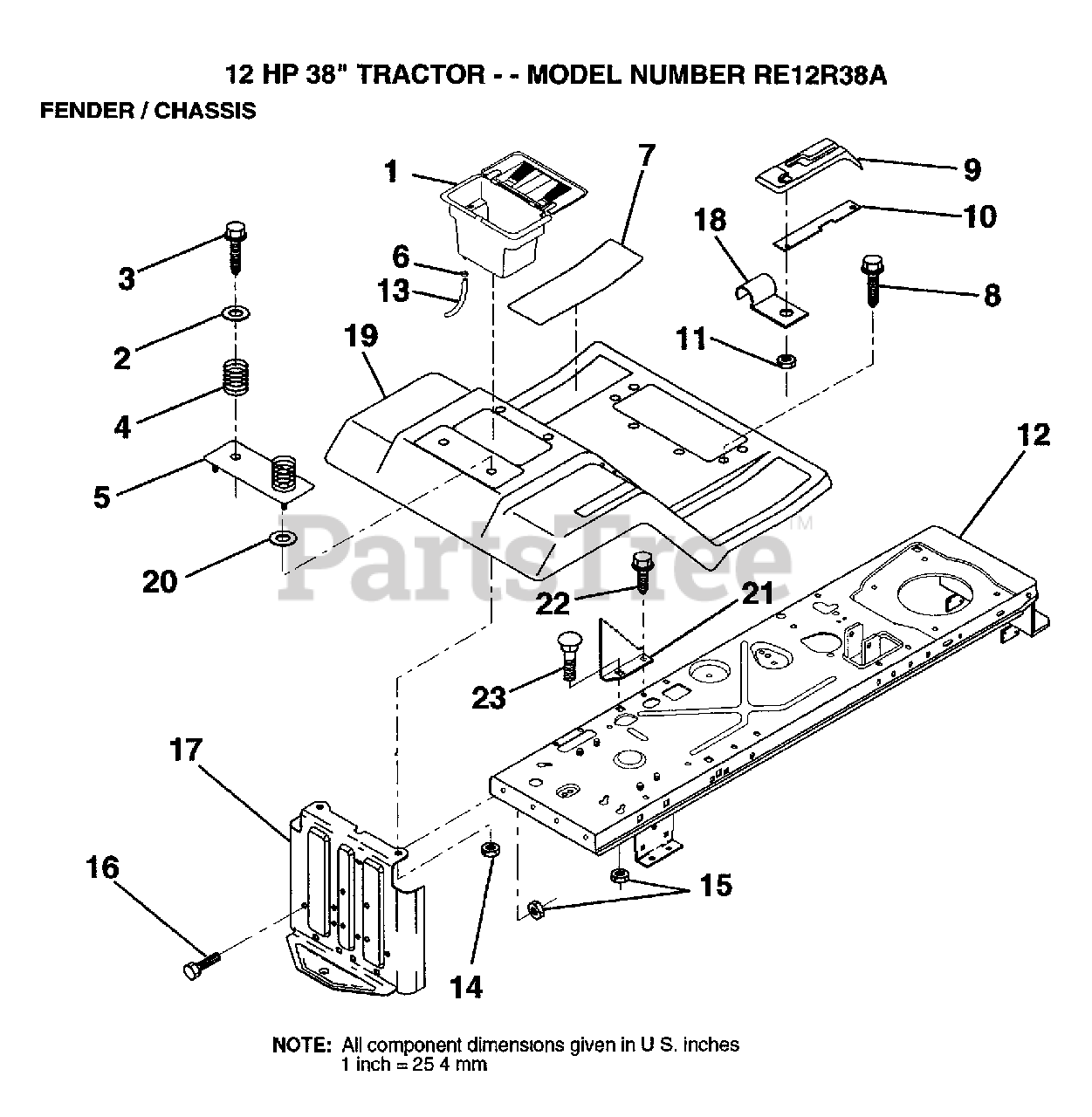

FENDER/CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

124181x

SPRING COMPRESSIO

$

$

Not available

5

127115x419

PLATE, BATTERY

$

$

Not available

6

109596x

HOSE CLAMP T

$

$

Not available

7

124144x

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

126995x

$

$

Not available

10

Electrolux/AYP 124307x

BAR SHIFT LOCK

$

$

Currently unavailable

11

124346x

NUT

$

$

Not available

12

Electrolux/AYP 133384

SUB= 139893

$

$

Not available

13

105687x

SUB= 109238X

$

$

Not available

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

15

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 127880

DRAWBAR
(Superseded to 539127880)

$109.99

$

Usually ships in 3-10 days

0

18

126470x

CLIP,INSULATOR

$

$

Not available

19

132650x419

SUB= 140956X419

$

$

Not available

20

Electrolux/AYP 19091413

WASHER

$2.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 132562

SUB= 140297

$

$

Not available

22

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0
