RE 12C36 D - Electrolux/AYP Lawn Tractor MOWER LIFT LEVER Parts Diagram

Lawn Tractor

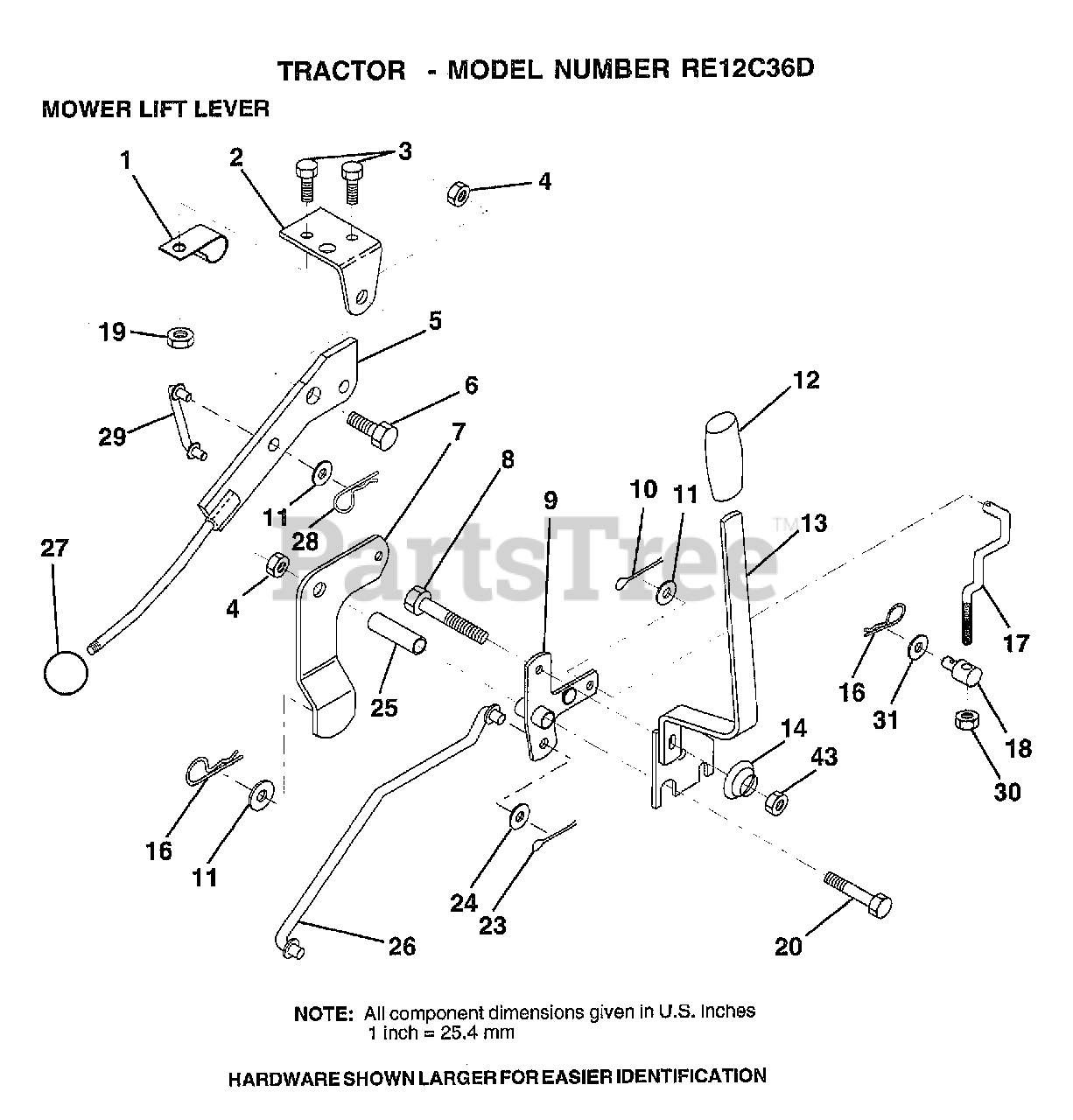

MOWER LIFT LEVER Parts Diagram

  • Title
1

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 122018X

BRKT CLUTCH
(Superseded to 532122018)

$

$

Not available

3

Electrolux/AYP 71110408

BOLT HXHD FIN
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 145187

LEVER.ASM.CLUTCH
(Superseded to 532145187)

$

$

Not available

6

Electrolux/AYP 106451X

"BOLT, SHOULDER LT"
(Superseded to 532106451)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 135371

MWR CLUTCH ARM AS
(Superseded to 532135371)

$

$

Not available

8

Electrolux/AYP 74760636

BOLT
(Superseded to 874760636)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 121930X

"BELLCRANK,LIFT"
(Superseded to 532121930)

$11.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 131861

SUB= 532131861

$

$

Not available

13

Electrolux/AYP 139352

HANDLE.ASM.LIFT
(Superseded to 532139352)

$

$

Not available

14

Electrolux/AYP 123496X

SPRING COMPRESSIO
(Superseded to 532123496)

$2.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 127359

"LINK,LIFT FRT"
(Superseded to 532127359)

$24.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 142028

TRUNION ADJ
(Superseded to 532142028)

$

$

Not available

19

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

20

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 121933X

TUBE SPACER
(Superseded to 532121933)

$

$

Not available

26

Electrolux/AYP 141470

ROD LIFT MOWER
(Superseded to 532141470)

$

$

Not available

27

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

29

Electrolux/AYP 131655

CLUTCH LINK
(Superseded to 532131655)

$

$

Not available

30

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

31

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

43

Murray 73900600

SUB= 83923

$

$

Not available
