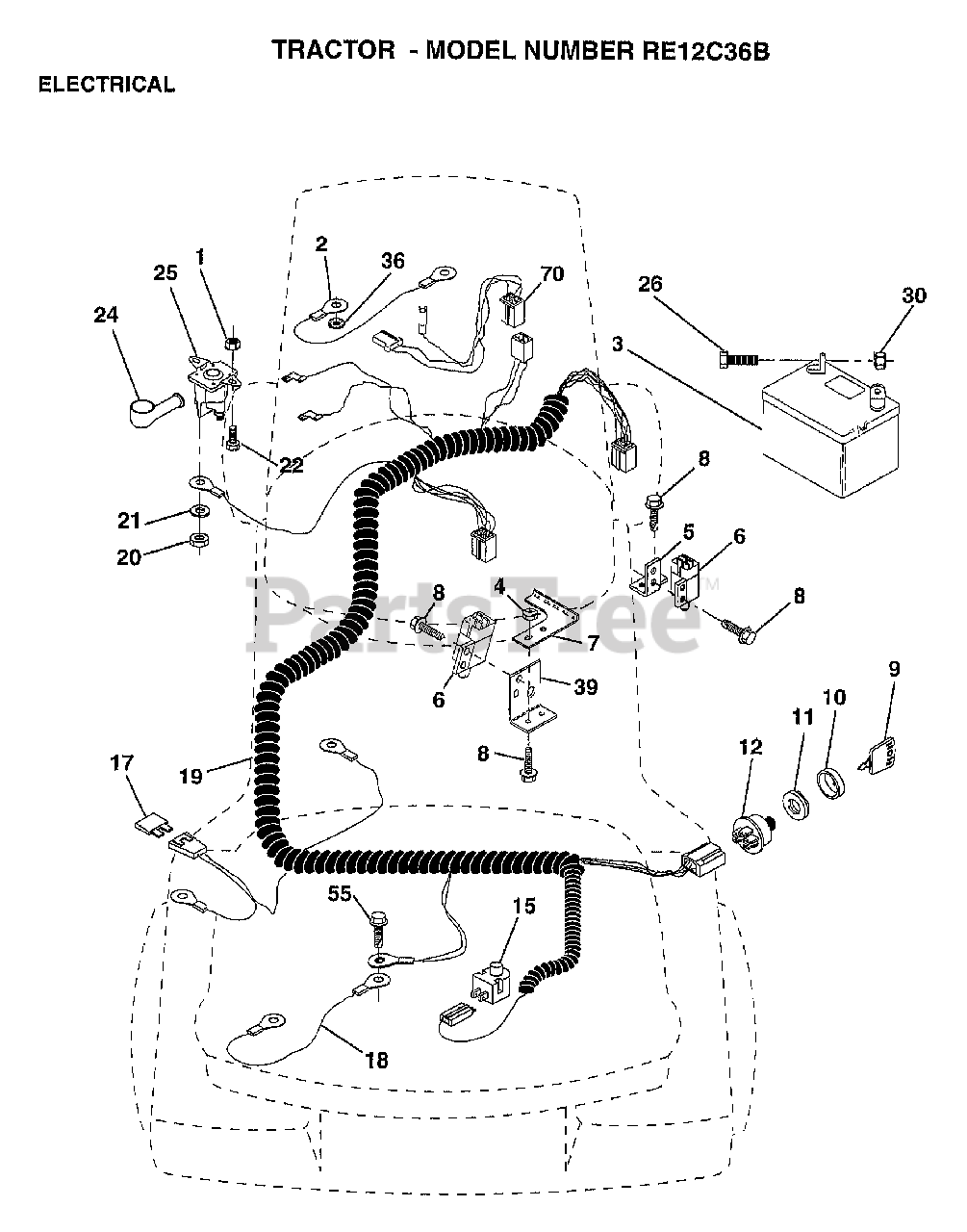

RE 12C36 B - Electrolux/AYP Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

2

Electrolux/AYP 108423X

CABLE ASM.
(Superseded to 532108423)

$8.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 144924

SUB= 123899X

$

$

Not available

4

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 146374

KEEPER.ACTUAT.LR.

$2.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

9

Electrolux/AYP 140401

KEY MLD GEN DELTA
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

10

Electrolux/AYP 141226

COVER KEY SWITCH
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 140400

SUB= 145774

$

$

Not available

12

Electrolux/AYP 163088

SWITCH.IGNITION
(Superseded to 532178744)

$44.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 128353

CABLE ASSY
(Superseded to 532128353)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 166143

HARNESS.IGNITION

$71.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

21

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

22

Electrolux/AYP 71110408

BOLT HXHD FIN
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 145673

SUB= 146154
(Superseded to 532145673)

$24.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

30

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

36

Electrolux/AYP 11150400

LOCKWASHER
(Superseded to 811150400)

$2.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 141735

BRACKET SWT CLUTC
(Superseded to 532141735)

$2.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 166658

HARNESS.ENGINE
(Superseded to 532140413)

$

$

Not available
