RE 12C36 B - Electrolux/AYP Lawn Tractor DASHBOARD Parts Diagram

Lawn Tractor

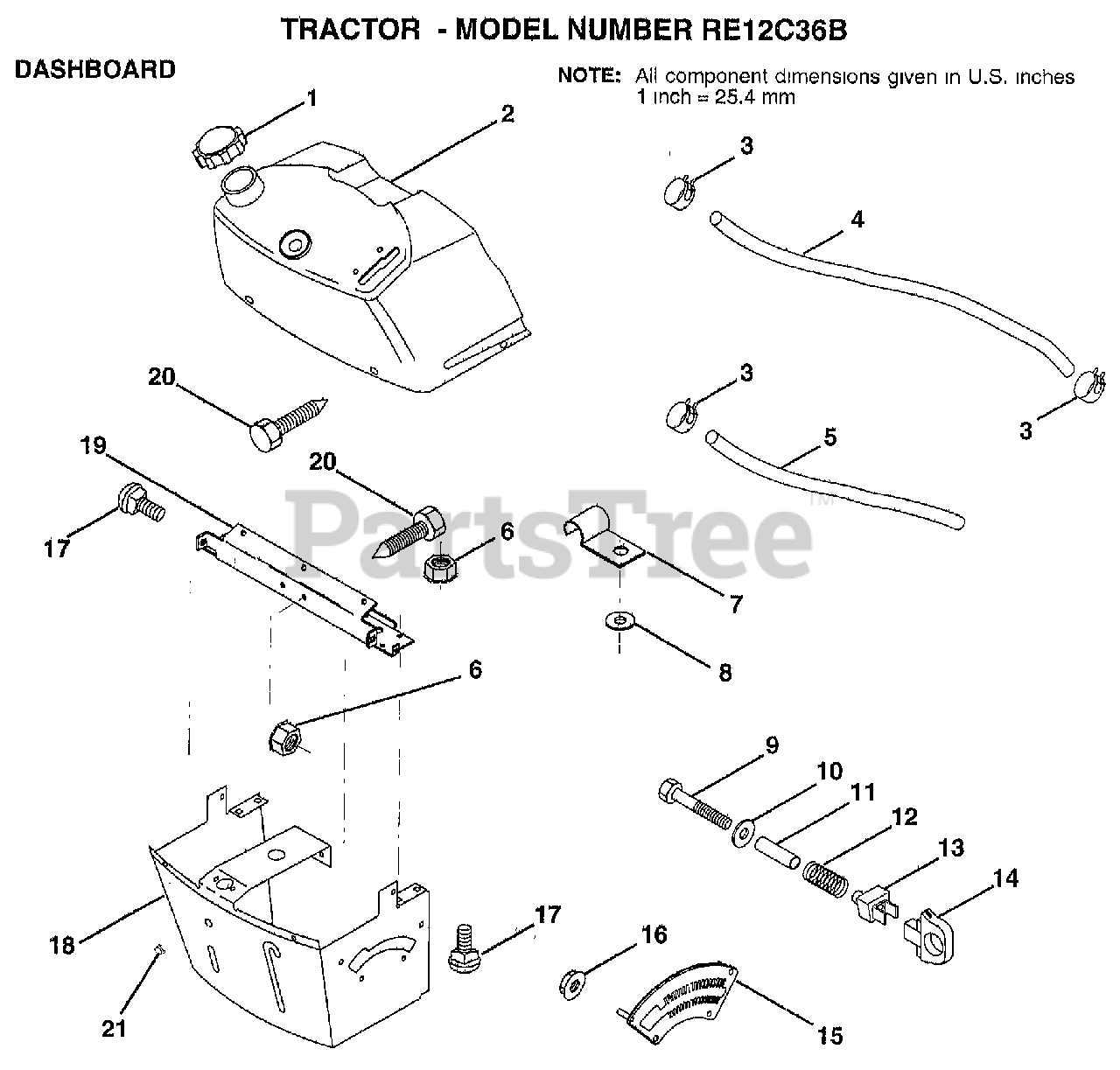

DASHBOARD Parts Diagram

  • Title
1

Electrolux/AYP 141523

CAP BLK FUEL LR
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 138393

TANK.ASM.DASH.LR
(Superseded to 584445501)

$

$

Not available

3

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

4

$

$

Not available

5

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

7

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

8

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 74760428

BOLT
(Superseded to 874760432)

$9.49

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 3720R

SPRING M
(Superseded to 532003720)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 126450X

"KNOB,HGT RETAINER"
(Superseded to 532126450)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 126115X

KNOB
(Superseded to 532126115)

$

$

Not available

15

Electrolux/AYP 122023X

ADJUSTER QUAD
(Superseded to 532122023)

$9.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 72110404

BOLT
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 130745

SUPT ASSY DASH
(Superseded to 532130745)

$

$

Not available

19

Electrolux/AYP 134744

CROSS BRACE
(Superseded to 532134744)

$

$

Not available

20

Electrolux/AYP 17060408

SCREW.1/4-20X1/2
(Superseded to 817060408)

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 134014

PLUG DOME
(Superseded to 532134014)

$

$

Not available
