RE 12597 RB (960610342-00) - Husqvarna Lawn Tractor (2012-01) STEERING Parts Diagram

Lawn Tractor

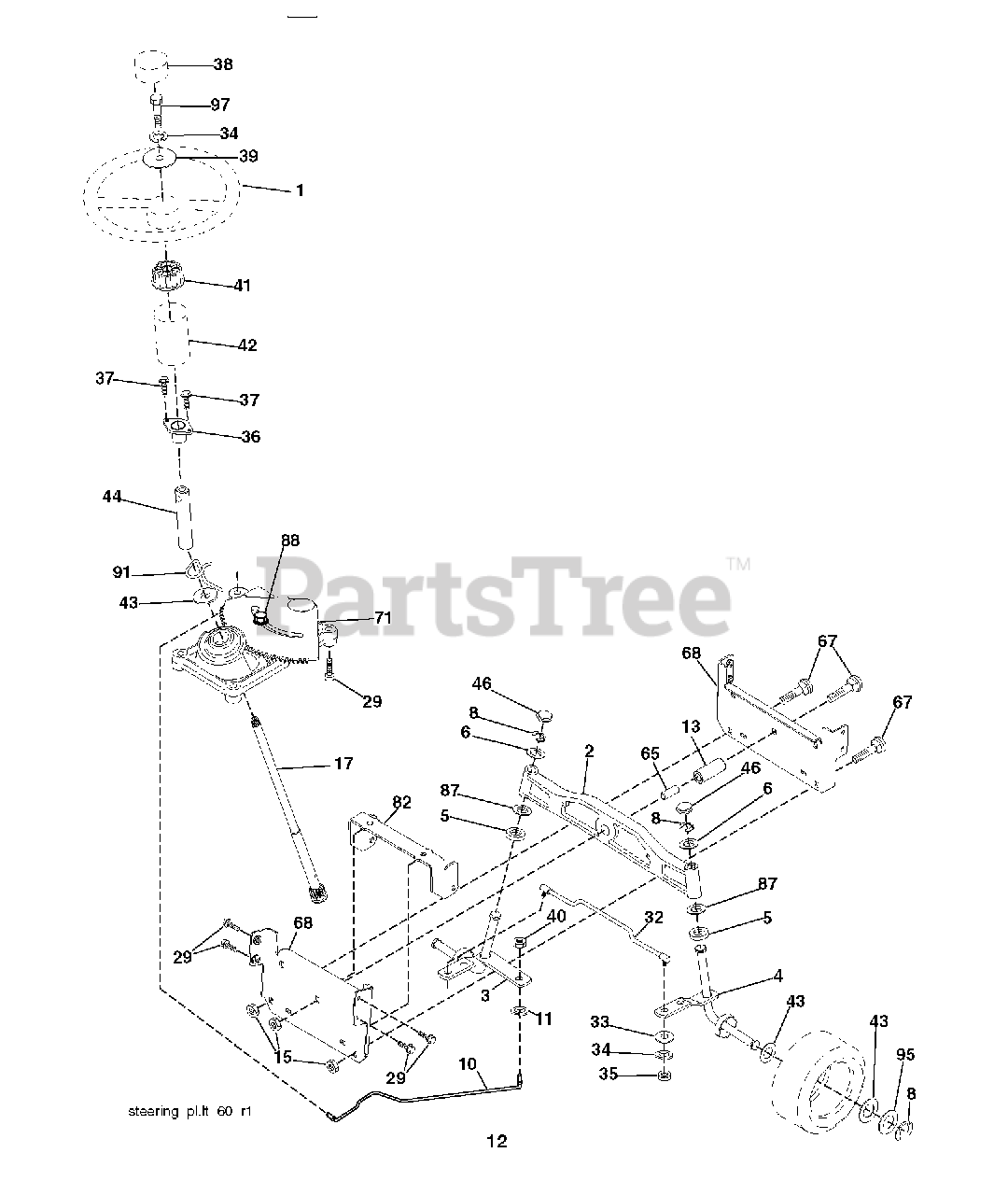

STEERING Parts Diagram

  • Title

1

Electrolux/AYP 532186780

WHEEL.STEERING.OPP.BLACK
(Superseded to 583161701)

$47.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532184706

AXLE ASSY FRONT
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532124931

NO LONGER AVAILABLE
(Superseded to 532006266)

$7.49

$

In Stock, Qty 14

0

6

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 10

0

8

Electrolux/AYP 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532175121

DRAGLINK.15".TIRES.2001

$68.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532136518

TUBE, PIVOT AXLE

$9.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532190753

SHAFT STEERING SPLINE

$

$

Not available

29

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 532170162

ROD.ASM.TIE.BALL.JOINT.NOVAN

$93.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 873540500

NUT, CROWNLOCK

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 532192916

CAP.WHEEL.STEER.OPP.BLK
(Superseded to 583205301)

$5.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$9.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532169633

BOOT.STEERING.SHAFT.BLACK
(Superseded to 532145054)

$

$

Not available

43

Electrolux/AYP 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 532121232

CAP.SPINDLE

$4.99

$

In Stock, Qty 8

0

65

Electrolux/AYP 532414736

SPACER.BRACE.AXLE

$6.99

$

In Stock, Qty 6

0

67

Electrolux/AYP 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 532169827

BRACE.AXLE.15"TIRES

$21.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532175146

STEERING ASM

$182.99

$

In Stock, only 3 left!

0

82

Electrolux/AYP 532199978

BRACKET.SUSP.CHASSIS.FRONT.15

$15.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532173966

WASHER, FLAT .781 X 1 1/2"

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532175118

BOLT, SHOULDER 7/16-20

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532175553

CLIP.STEERING

$13.99

$

In Stock, only 1 left!

0

95

Electrolux/AYP 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

97

Electrolux/AYP 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0
